| Item | Part No. | Part Name | Qty | Serial No. |
| PUMP, VARIABLE (SEE FIG. F2430-02A0 ) | A76001-- | |||

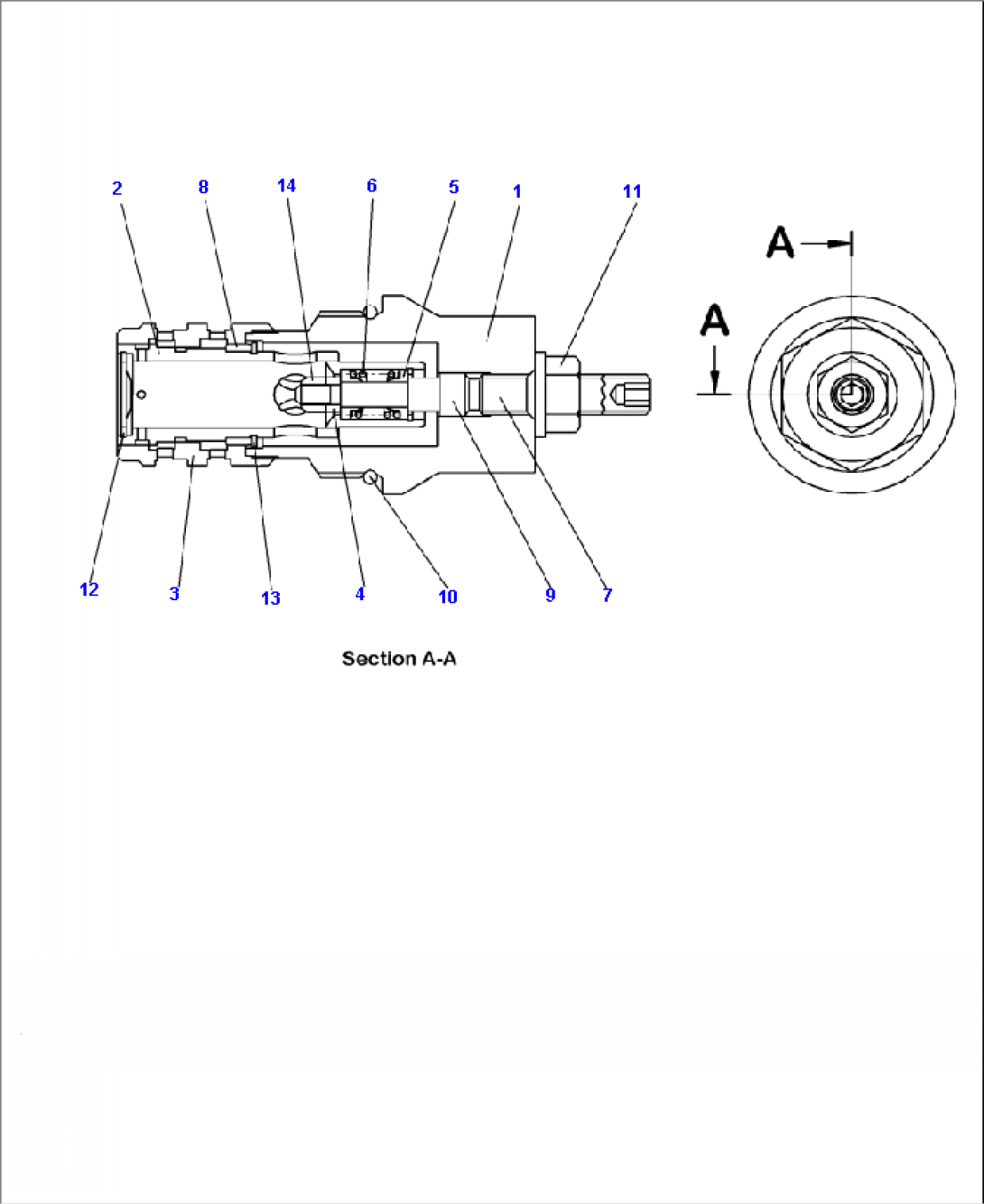

| UC4720237588 | DA CARTRIDGE ASSEMBLY | A76001-- | ||
| 1 | UC1704147211 | CASE | A76001-- | |
| 2 | UC1720370752 | PLUNGER | A76001-- | |
| 3 | UC1709221525 | BUSHING | A76001-- | |
| 4 | UC1704213271 | DISTANCE PIECE | A76001-- | |
| 5 | UC1720237554 | SPRING SEAT | A76001-- | |
| 6 | UC1704086822 | SPRING | A76001-- | |
| 7 | UC1720379108 | ROD | A76001-- | |
| 8 | UC1706501543 | RING | A76001-- | |
| 9 | UC1701564769 | WASHER | A76001-- | |
| 10 | UC1300186003 | O-RING | A76001-- | |
| 11 | UC1701527072 | NUT | A76001-- | |
| 12 | UC1302151009 | WASHER | A76001-- | |
| 13 | UC1701538476 | WASHER | A76001-- | |
| 14 | UC1701572879 | NUT | A76001-- | |
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBU TORS ONLY. |
