| Item | Part No. | Part Name | Qty | Serial No. |

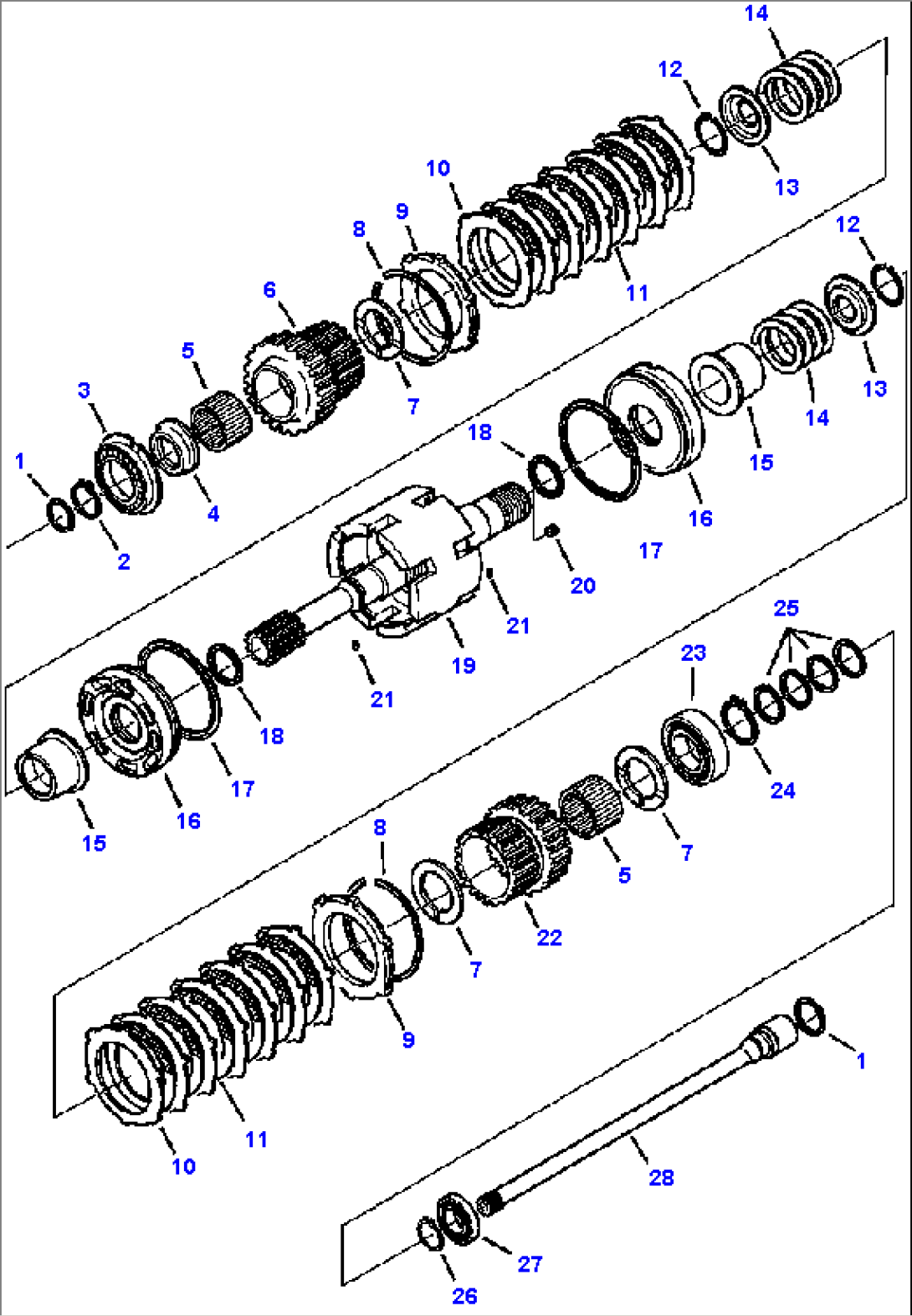

| TRANSMISSION ( SEE FIG. F3220-01A0 ) | A13117-- | |||
| 1 | CA0139197 | SEAL | A13117-- | |
| 2 | CA0024800 | SNAP RING | A13117-- | |
| 3 | CA0026160 | BEARING | A13117-- | |
| 4 | CA0139011 | CIRCLE, SWING | A13117-- | |
| 5 | CA0027956 | BEARING, ROLLER | A13117-- | |
| 6 | CA0138975 | GEAR | A13117-- | |
| 7 | CA0138986 | CIRCLE, SWING | A13117-- | |
| 8 | CA0025067 | RING, SNAP | A13117-- | |
| 9 | CA0135020 | PLATE, END | A13117-- | |
| 10 | CA0133924 | PLATE, SEPARATOR | A13117-- | |
| 11 | CA0133972 | PLATE, DISC | A13117-- | |
| 12 | CA0025031 | RING, SNAP | A13117-- | |
| 13 | CA0133912 | LOCK, SPRING | A13117-- | |
| 14 | CA0139351 | SPRING | A13117-- | |
| 15 | CA0138984 | SLEEVE | A13117-- | |
| 16 | CA0138983 | PISTON | A13117-- | |
| 17 | CA0139199 | SEAL | A13117-- | |
| 18 | CA0139198 | SEAL | A13117-- | |
| 19 | CA0068354 | SHAFT, INLET | A13117-- | |
| 20 | CA0023835 | PLUG | A13117-- | |
| 21 | CA0024321 | PIN, SPRING | A13117-- | |
| 22 | CA0138974 | GEAR | A13117-- | |
| 23 | CA0025811 | BEARING | A13117-- | |
| 24 | CA0024805 | RING, SNAP | A13117-- | |
| 25 | CA0142858 | SEAL | A13117-- | |
| 26 | CA0024785 | RING, SNAP | A13117-- | |
| 27 | CA0025735 | BEARING | A13117-- | |
| 28 | CA0138383 | SHAFT, OUTPUT | A13117-- |
