| Item | Part No. | Part Name | Qty | Serial No. |

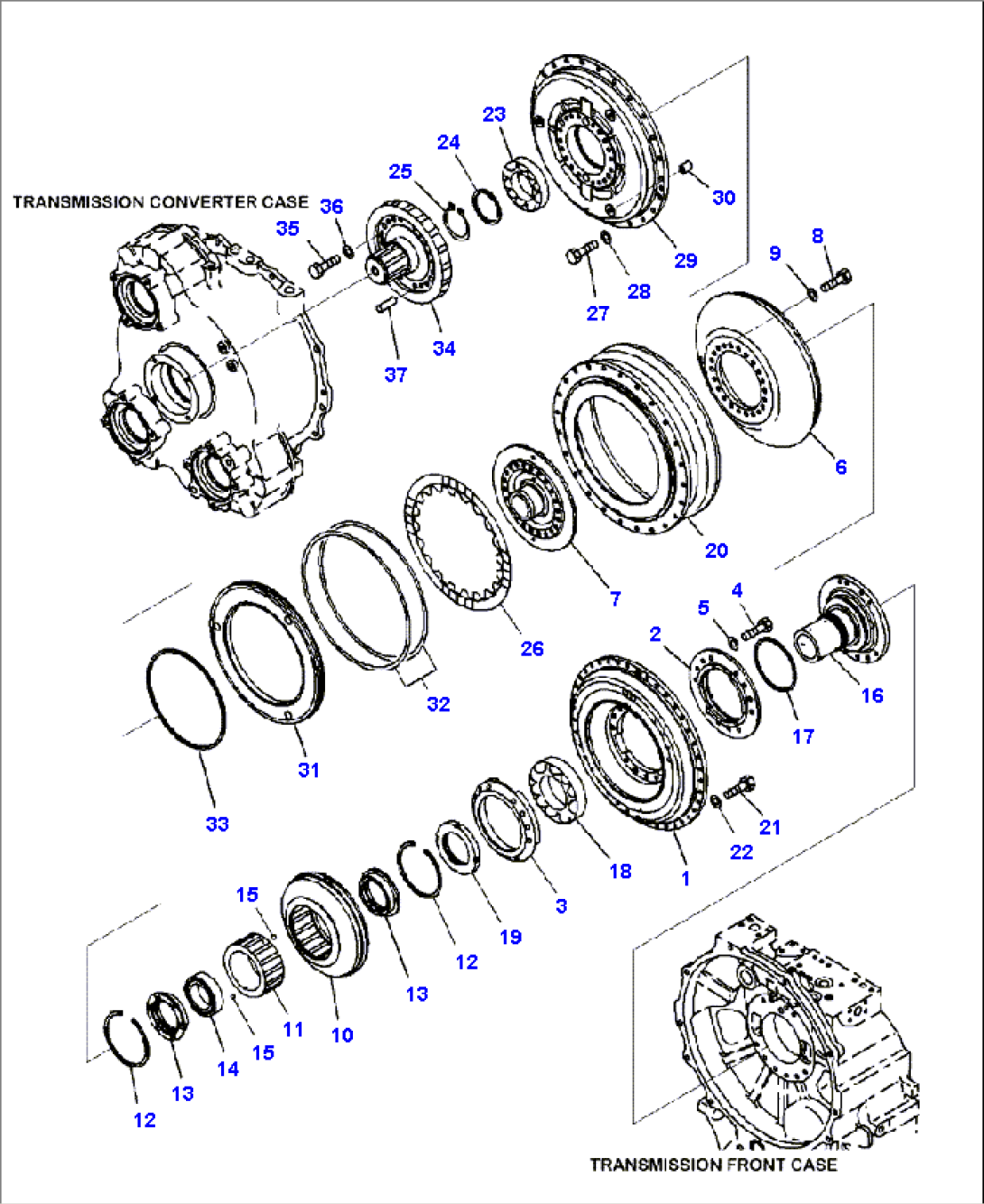

| TRANSMISSION ASSEMBLY (SEE FIG. F3300-01A0 ) | A11001-- | |||
| (NSS) | TORQUE CONVERTER ASSEMBLY | A11001-- | ||
| 1 | 711-85-11121 | PUMP | A11001-- | |
| 2 | 23W-13-11140 | RETAINER | A11001-- | |
| 3 | 23W-13-11190 | GUIDE | A11001-- | |
| 4 | 01010-81045 | BOLT | A11001-- | |
| 5 | 01643-31032 | WASHER | A11001-- | |
| 6 | 23W-13-11520 | TURBINE | A11001-- | |
| 7 | 567-13-31530 | BOSS | A11001-- | |
| 8 | 01010-81030 | BOLT | A11001-- | |
| 9 | 01643-31032 | WASHER | A11001-- | |
| 10 | 23W-13-12110 | STATOR | A11001-- | |
| 11 | 567-13-12121 | RACE | A11001-- | |
| 12 | 567-13-11170 | RING, SNAP | A11001-- | |
| 13 | 567-13-12141 | BUSHING | A11001-- | |
| 14 | 281-13-12161 | WHEEL | A11001-- | |
| 15 | 04260-00635 | BALL | A11001-- | |
| 16 | 56D-13-22520 | SHAFT, STATOR | A11001-- | |
| 17 | 07018-31405 | SEAL RING | A11001-- | |
| 18 | 568-13-13351 | BEARING | A11001-- | |
| 19 | 23W-13-12680 | NUT | A11001-- | |
| 20 | 23W-13-11210 | CASE | A11001-- | |
| 21 | 01010-80825 | BOLT | A11001-- | |
| 22 | 01643-30823 | WASHER | A11001-- | |
| 23 | 06040-06215 | BEARING | A11001-- | |
| 24 | 711-47-11170 | PLATE | A11001-- | |
| 25 | 04064-07525 | RING, SNAP, FOR SHAFT SIDE | A11001-- | |
| 26 | 582-15-12811 | DISC | A11001-- | |
| 27 | 01010-81030 | BOLT | A11001-- | |
| 28 | 01643-31032 | WASHER | A11001-- | |
| 56D-13-27111 | HOUSING ASSEMBLY | A11001-- | ||
| 29 | 56D-13-27121 | HOUSING | A11001-- | |
| 30 | 711-61-67130 | PIN | A11001-- | |
| 31 | 23W-13-17210 | PISTON | A11001-- | |
| 32 | 569-15-12890 | SEAL RING | A11001-- | |
| 33 | 711-35-17151 | SEAL RING | A11001-- | |
| 34 | 56D-13-11352 | SHAFT | A11001-- | |
| 35 | 01010-81040 | BOLT | A11001-- | |
| 36 | 01643-31032 | WASHER | A11001-- | |
| 37 | 04020-01434 | PIN, DOWEL | A11001-- | |
| 56D-13-05300 | KIT, TRANSMISSION | A11001-- | ||
| F2 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBU TORS ONLY. | ||||
| F2 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBU TORS ONLY. |
