| Item | Part No. | Part Name | Qty | Serial No. |

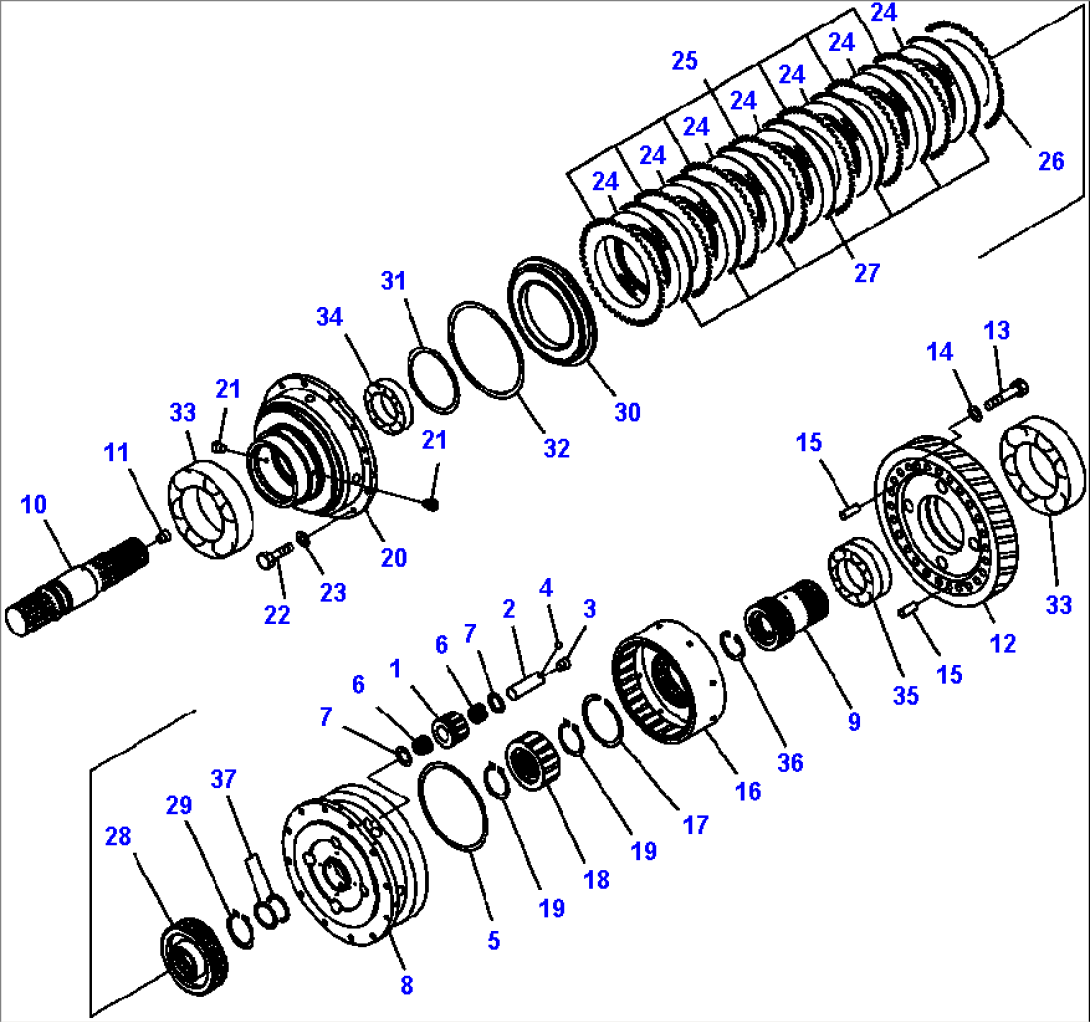

| TRANSMISSION ASSEMBLY (SEE FIG. F3300-01A0) | A11001-- | |||
| 56B-15-12041 | DIFFERENTIAL | A11001-- | ||
| 1 | 56B-15-17412 | GEAR | A11001-- | |
| 2 | 56B-15-17510 | SHAFT | A11001-- | |
| 3 | 07043-70108 | PLUG | A11001-- | |
| 4 | 04260-00635 | BALL | A11001-- | |
| 5 | 154-15-49510 | RING, SNAP | A11001-- | |
| 6 | 56B-15-19450 | BEARING | A11001-- | |
| 7 | 56B-15-17550 | WASHER, THRUST | A11001-- | |
| 8 | 56B-15-17312 | CARRIER | A11001-- | |
| 9 | 56B-15-17211 | SHAFT, REAR | A11001-- | |
| 10 | 56B-15-17222 | SHAFT, FRONT | A11001-- | |
| 11 | 198-15-26510 | PLUG | A11001-- | |
| 12 | 56B-15-12564 | GEAR, OUTPUT | A11001-- | |
| 13 | 01010-61655 | BOLT | A11001-- | |
| 14 | 01643-31645 | WASHER | A11001-- | |
| 15 | 04020-01842 | PIN, DOWEL | A11001-- | |
| 16 | 56B-15-17612 | GEAR, RING | A11001-- | |
| 17 | 04070-00115 | RING, SNAP | A11001-- | |
| 18 | 56B-15-17251 | GEAR | A11001-- | |
| 19 | 04064-07025 | RING | A11001-- | |
| 20 | 56B-15-17131 | HOUSING, DIFFERENTIAL | A11001-- | |
| 21 | 07043-70108 | PLUG | A11001-- | |
| 22 | 01010-81235 | BOLT | A11001-- | |
| 23 | 01643-31232 | WASHER | A11001-- | |
| 24 | 425-32-22670 | DISC | A11001-- | |
| 25 | 56B-15-17730 | PLATE | A11001-- | |
| 26 | 425-32-22680 | PLATE | A11001-- | |
| 27 | 56B-15-17710 | SPRING, WAVE | A11001-- | |
| 28 | 56B-15-17271 | HUB | A11001-- | |
| 29 | 04064-07525 | RING, SNAP | A11001-- | |
| 30 | 56B-15-17760 | PISTON | A11001-- | |
| 31 | 287-15-19210 | RING, SEAL | A11001-- | |
| 32 | 154-15-22831 | RING, SEAL | A11001-- | |
| 33 | 421-22-12840 | BEARING | A11001-- | |
| 34 | 56B-15-19620 | BEARING | A11001-- | |
| 35 | 56B-15-19321 | BEARING | A11001-- | |
| 36 | 04065-06220 | RING, SNAP | A11001-- | |
| 37 | 56B-15-17860 | RING, SEAL | A11001-- | |
| 56B-15-05060 | KIT, TRANSMISSION | A11001-- | ||
| F1 - PART AVAILABLE IN TRANSMISSION SERVICE KIT 56B-15-05060. |
