| Item | Part No. | Part Name | Qty | Serial No. |

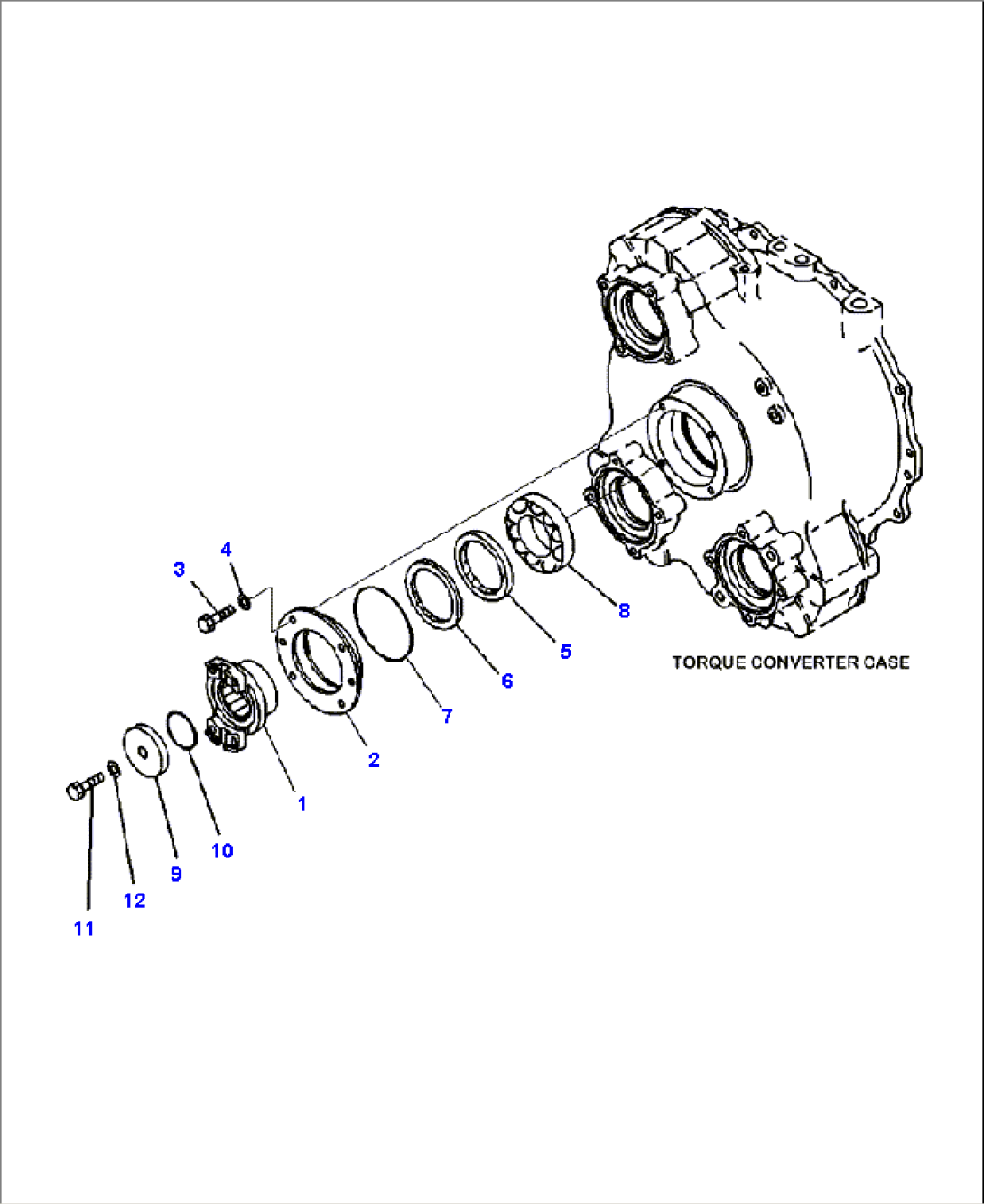

| TRANSMISSION ASSEMBLY (SEE FIG. F3300-01A0 ) | A11001-- | |||
| 1 | 56D-15-24231 | COUPLING | A11001-- | |
| 2 | 56D-13-19370 | RETAINER | A11001-- | |
| 3 | 01010-81025 | BOLT | A11001-- | |
| 4 | 01643-31032 | WASHER | A11001-- | |
| 5 | 07012-50095 | SEAL, OIL | A11001-- | |
| 6 | 425-15-28710 | SEAL, DUST | A11001-- | |
| 7 | 07000-72130 | O-RING | A11001-- | |
| 8 | 711-53-11370 | BEARING | A11001-- | |
| 9 | 56D-15-29841 | HOLDER | A11001-- | |
| 10 | 07000-75065 | O-RING | A11001-- | |
| 11 | 01050-61670 | BOLT | A11001-- | |
| 12 | 01643-31645 | WASHER | A11001-- | |
| 56D-13-05300 | KIT, TRANSMISSION | A11001-- | ||
| F1 - PART AVAILABLE IN SERVICE KIT: |
