| Item | Part No. | Part Name | Qty | Serial No. |

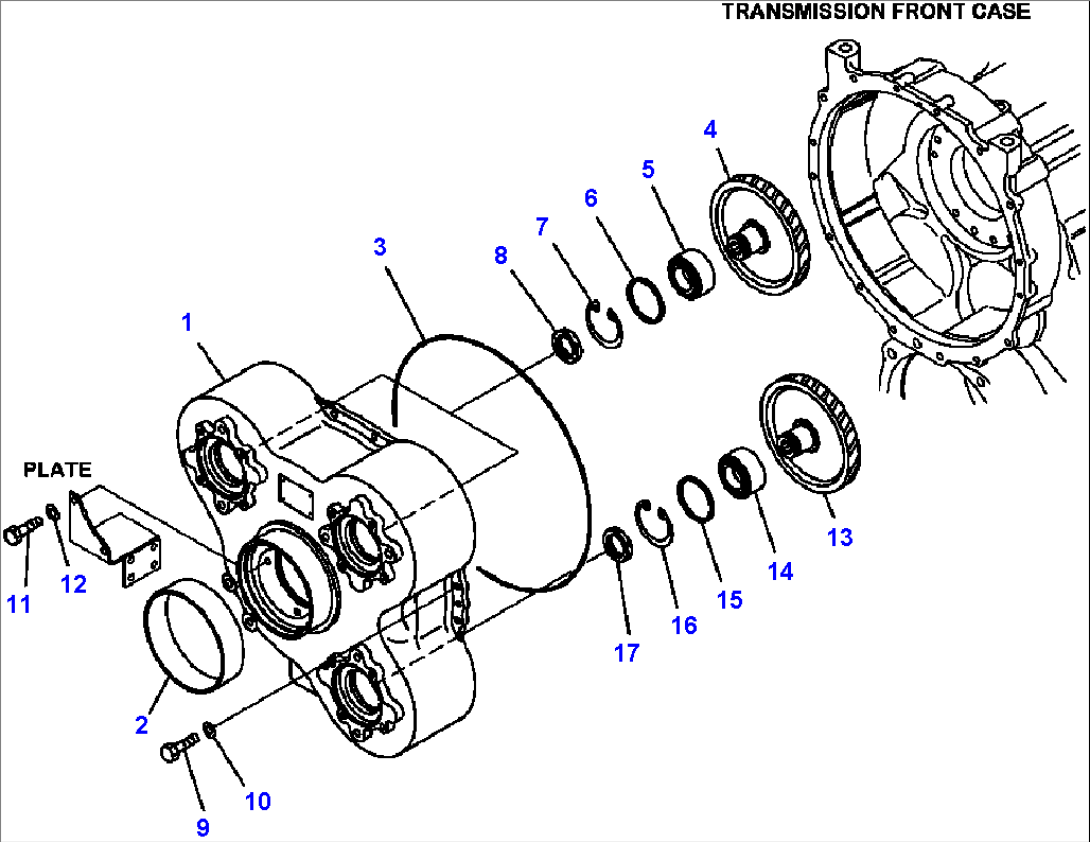

| TRANSMISSION (SEE FIG. F3300-01A0) | ||||
| 1 | 566-13-83131 | HOUSING | ||
| 2 | 566-13-83381 | BUSHING | ||
| 3 | 566-13-43140 | O-RING | ||
| 4 | 56B-13-14210 | GEAR | ||
| 5 | 711-35-14230 | BEARING | ||
| 6 | 711-35-14120 | PLATE | ||
| 7 | 04065-09530 | RING, SNAP | ||
| 8 | 01530-04812 | NUT, LOCK | ||
| 9 | 01010-81235 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 01010-81245 | BOLT | ||
| 12 | 01643-31232 | WASHER | ||
| 13 | 56B-13-14210 | GEAR | ||
| 14 | 711-35-14230 | BEARING | ||
| 15 | 711-35-14120 | PLATE | ||
| 16 | 04065-09530 | RING, SNAP | ||
| 17 | 01530-04812 | NUT, LOCK | ||
| 56B-15-05072 | KIT, TRANSMISSION (SEE FIG. F3300-01A0) | |||
| F1 - PART AVAILABLE IN SERVICE KIT: |
