| Item | Part No. | Part Name | Qty | Serial No. |

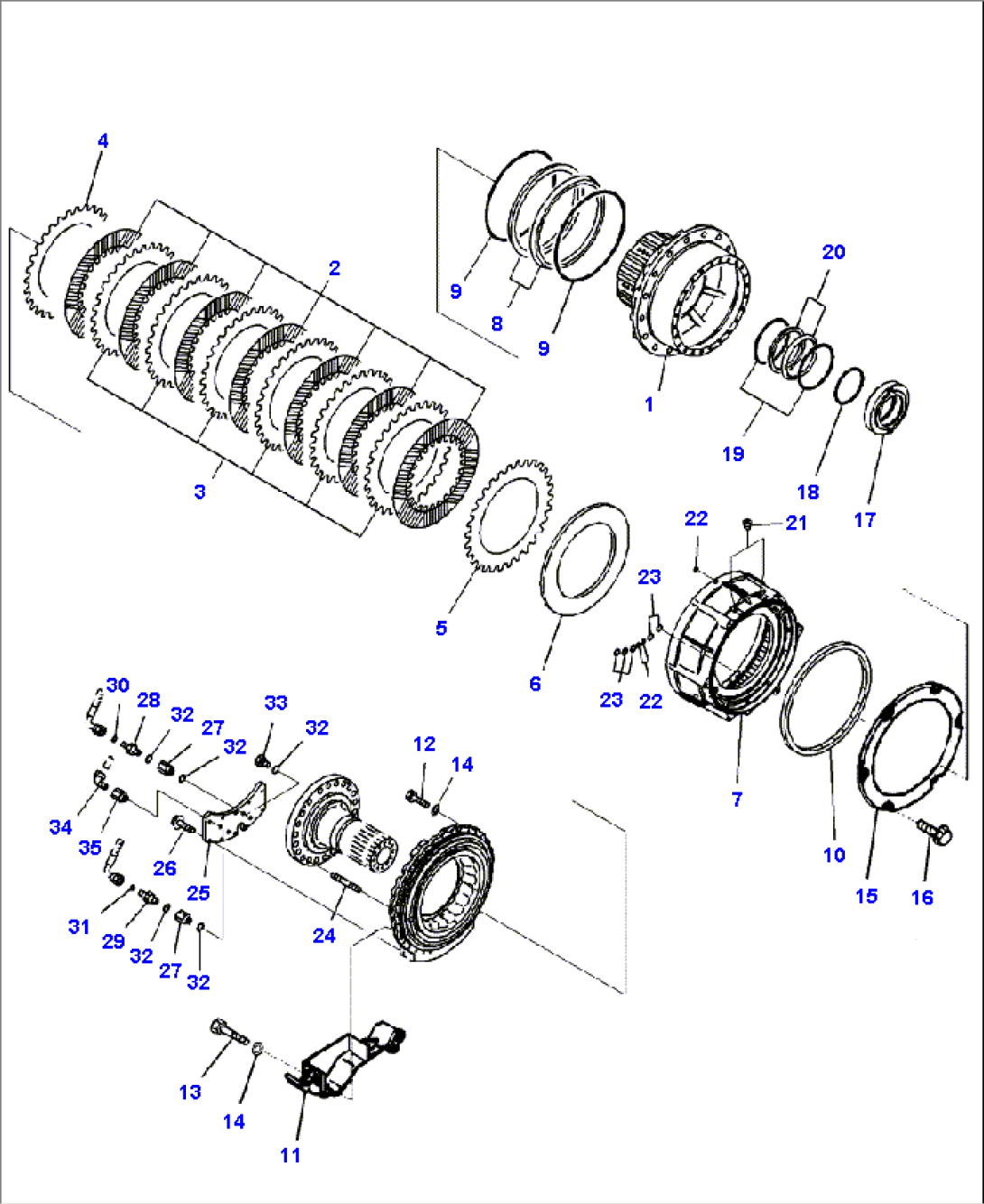

| FINAL DRIVE ASSEMBLY (SEE FIG. F3360-01A0 ) | A11001-- | |||
| FINAL DRIVE ASSEMBLY, R.H. (SEE FIG. F3360-05A0 ) | A11001-- | |||
| 1 | 56D-27-12715 | HUB | A11001-- | |
| 2 | 56D-33-11510 | DISC | A11001-- | |
| 3 | 56D-33-11251 | PLATE | A11001-- | |
| 4 | 56D-33-11261 | DAMPER | A11001-- | |
| 5 | 56D-33-11271 | DAMPER | A11001-- | |
| 6 | 56E-32-11280 | PLATE | A11001-- | |
| 7 | 56D-32-21211 | GEAR | A11001-- | |
| 8 | 56D-33-00030 | SEAL ASSEMBLY | A11001-- | |
| 56D-33-00040 | RING ASSEMBLY, SEAL | A11001-- | ||
| 56D-33-11810 | SEAL | A11001-- | ||
| 9 | 195-27-00150 | O-RING ASSEMBLY | A11001-- | |
| (NSS) | O-RING | A11001-- | ||
| 10 | 56D-23-13461 | SEAL | A11001-- | |
| 11 | 56D-32-21934 | COVER | A11001-- | |
| 12 | 01010-E1235 | BOLT | A11001-- | |
| 13 | 01010-E1265 | BOLT | A11001-- | |
| 14 | 01643-31232 | WASHER | A11001-- | |
| 15 | 56D-33-21490 | PLATE | A11001-- | |
| 16 | 01435-01020 | BOLT | A11001-- | |
| 17 | 56D-33-11330 | RETAINER | A11001-- | |
| 18 | 07000-15135 | O-RING | A11001-- | |
| 19 | 180-27-00081 | O-RING | A11001-- | |
| 20 | 56D-33-11320 | SEAL | A11001-- | |
| 21 | 07043-70108 | PLUG | A11001-- | |
| 22 | 07000-12012 | O-RING | A11001-- | |
| 23 | 07000-12018 | O-RING | A11001-- | |
| 24 | 01144-32090 | STUD | A11001-- | |
| 25 | 56D-32-21911 | COVER | A11001-- | |
| 26 | 01435-01030 | BOLT | A11001-- | |
| 27 | 6162-73-4690 | ADAPTER | A11001-- | |
| 28 | 02781-0021D | UNION | A11001-- | |
| 29 | 02781-0031D | UNION | A11001-- | |
| 30 | 02896-11008 | O-RING | A11001-- | |
| 31 | 02896-11009 | O-RING | A11001-- | |
| 32 | 07002-11423 | O-RING | A11001-- | |
| 33 | 07040-11409 | PLUG | A11001-- | |
| 34 | 285-35-11820 | ELBOW | A11001-- | |
| 35 | 21W-977-1120 | NIPPLE | A11001-- |
