| Item | Part No. | Part Name | Qty | Serial No. |

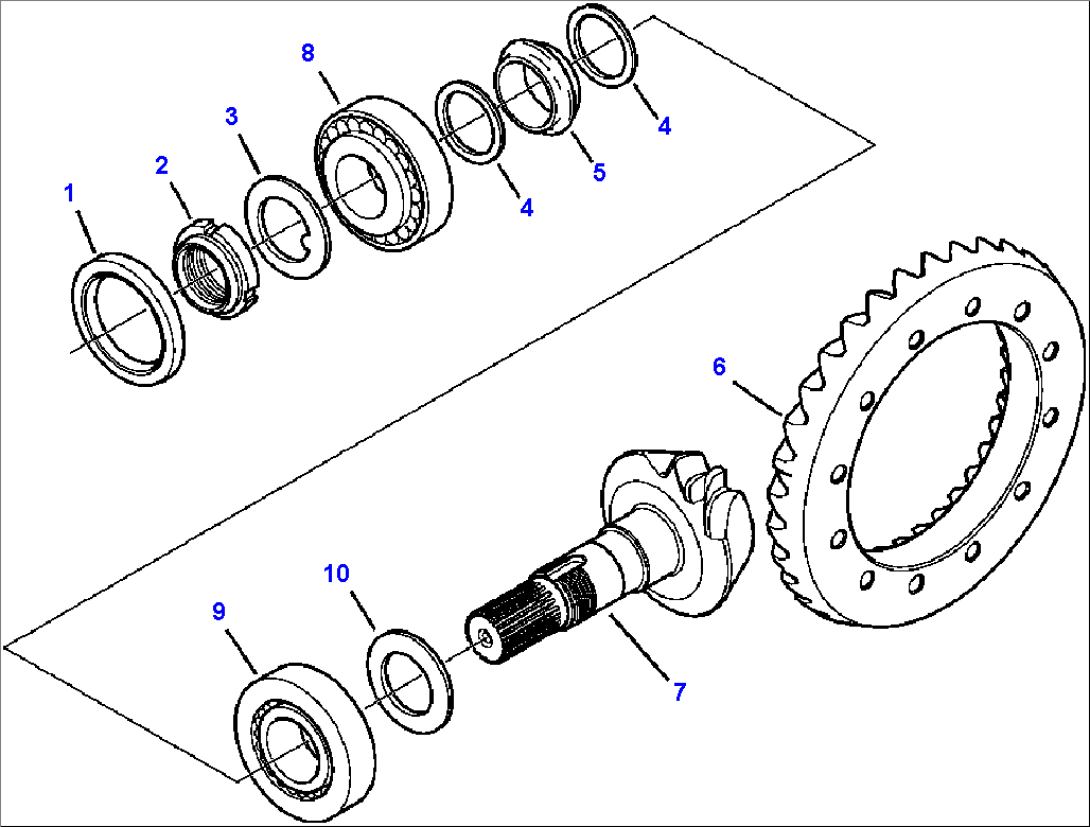

| REAR AXLE (SEE FIG. F3400-01A0 ) | A73001-- | |||
| 1 | CA0145050 | SEAL | A73001-- | |
| CA0068346 | RING AND PINION GEARS | A73001-- | ||
| 2 | CA0115054 | RING, NUT | A73001-- | |
| 3 | CA0113717 | RETAINER, IDLE GEAR | A73001-- | |
| 4 | CA0125829 | WASHER | A73001-- | |
| 5 | CA0126369 | THRUST WASHER | A73001-- | |
| 6 | (NSS) | GEAR, BEVEL | A73001-- | |
| 7 | (NSS) | GEAR, PINION | A73001-- | |
| 8 | CA0027350 | BEARING | A73001-- | |
| 9 | CA0027395 | BEARING | A73001-- | |
| 10 | CA0134186 | SHIM, 2.5 MM | A73001-- | |
| CA0134187 | SHIM, 2.6 MM | A73001-- | ||
| CA0134188 | SHIM, 2.7 MM | A73001-- | ||
| CA0134189 | SHIM, 2.8 MM | A73001-- | ||
| CA0134190 | SHIM, 2.9 MM | A73001-- | ||
| CA0134191 | SHIM, 3.0 MM | A73001-- | ||
| CA0134192 | SHIM, 3.1 MM | A73001-- | ||
| CA0134193 | SHIM, 3.2 MM | A73001-- | ||
| CA0134194 | SHIM, 3.3 MM | A73001-- | ||
| CA0134195 | SHIM, 3.4 MM | A73001-- |
