| Item | Part No. | Part Name | Qty | Serial No. |

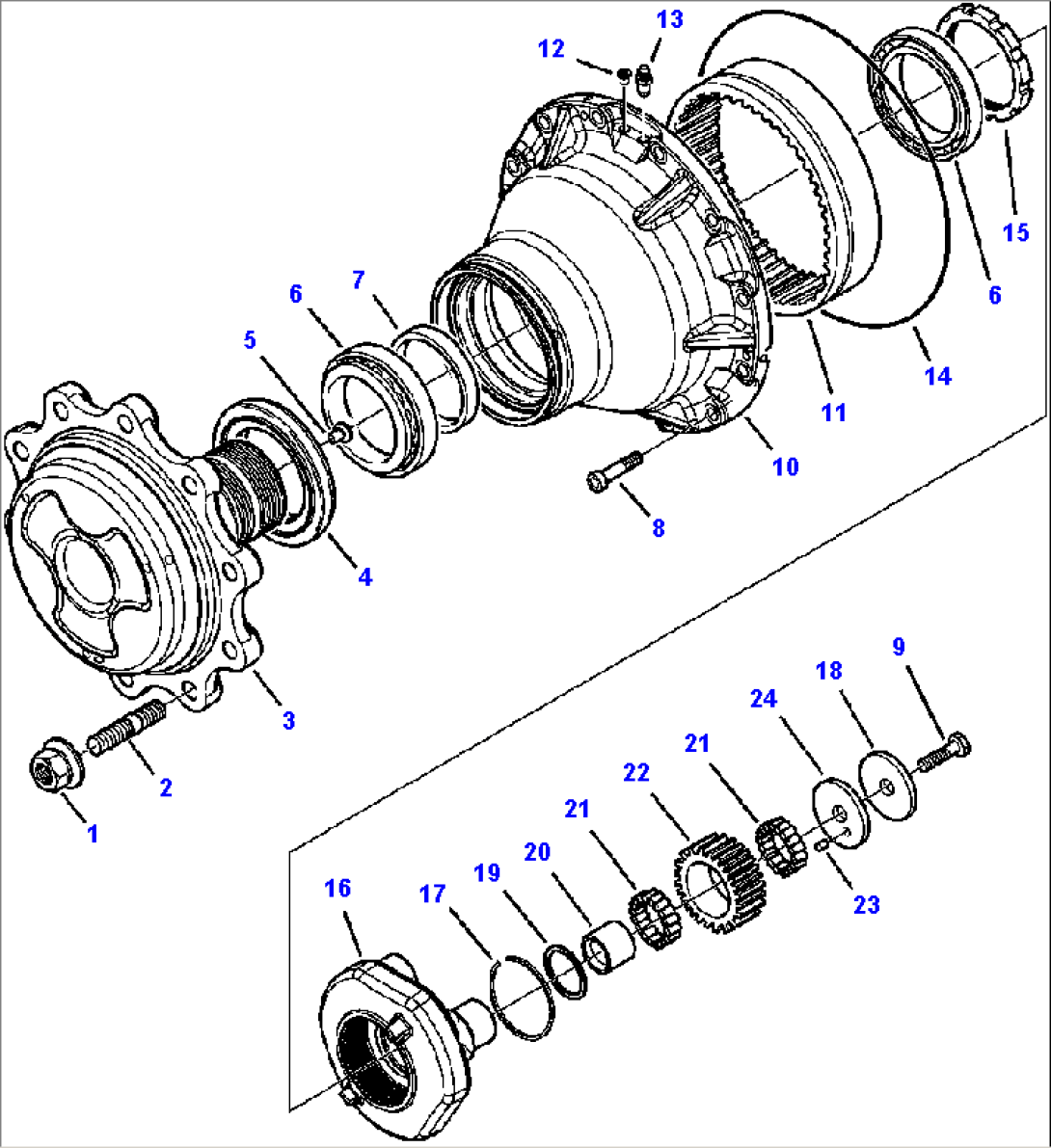

| REAR AXLE (SEE FIG. F3400-01A0 ) | A43001-- | |||
| 1 | NUT (SEE FIG. F3400-01A0 ) | A43001-- | ||
| 2 | CA0116957 | STUD | A43001-- | |
| 3 | CA0148482 | FLANGE | A43001-- | |
| 4 | CA0047702 | SEAL | A43001-- | |
| 5 | CA0115682 | SLIDE BLOCK | A43001-- | |
| 6 | CA0118370 | BEARING | A43001-- | |
| 7 | CA0148942 | WASHER, THRUST | A43001-- | |
| 8 | CA0021967 | SCREW | A43001-- | |
| 9 | CA0125229 | BOLT | A43001-- | |
| CA0068353 | KIT, WHEEL HUB | A43001-- | ||
| 10 | (NSS) | WHEEL HUB | A43001-- | |
| 11 | CA0142833 | RING GEAR | A43001-- | |
| 12 | CA0021570 | PLUG | A43001-- | |
| 13 | CA0116792 | PLUG | A43001-- | |
| 14 | CA0028565 | RING | A43001-- | |
| 15 | CA0148626 | RING, NUT | A43001-- | |
| 16 | CA0148483 | CARRIER, GEAR | A43001-- | |
| 17 | CA0642260 | RING, SNAP | A43001-- | |
| 18 | CA0147153 | WASHER, THRUST | A43001-- | |
| CA0147140 | BEARING ASSEMBLY | A43001-- | ||
| 19 | CA0147860 | WASHER, THRUST | A43001-- | |
| 20 | CA0147866 | RING | A43001-- | |
| 21 | CA0028390 | BEARING, ROLLER | A43001-- | |
| 22 | CA0147141 | PLANET WHEEL | A43001-- | |
| 23 | CA0028367 | PIN | A43001-- | |
| 24 | CA0147142 | WASHER, THRUST | A43001-- |
