| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02896-21009 | O-RING | A11001-- | |
| 2 | 07002-22034 | O-RING | A11001-- | |
| 3 | 02781-00315 | UNION | A11001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n a11001 up
- Power train and final drive
- F3425 01a0 brake oil circuit front piping
Поиск по каталогу

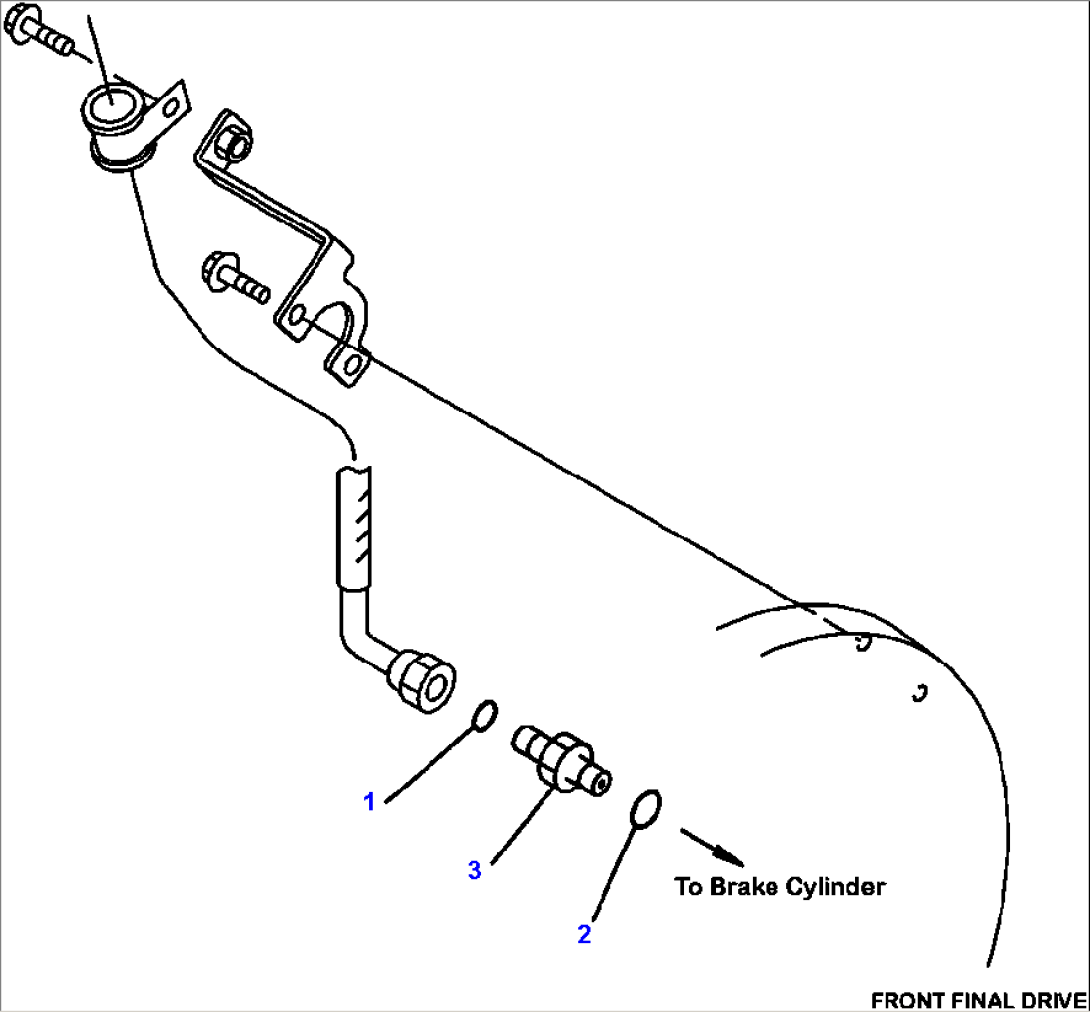

F3425-01A0 BRAKE OIL CIRCUIT FRONT PIPING
