| Item | Part No. | Part Name | Qty | Serial No. |

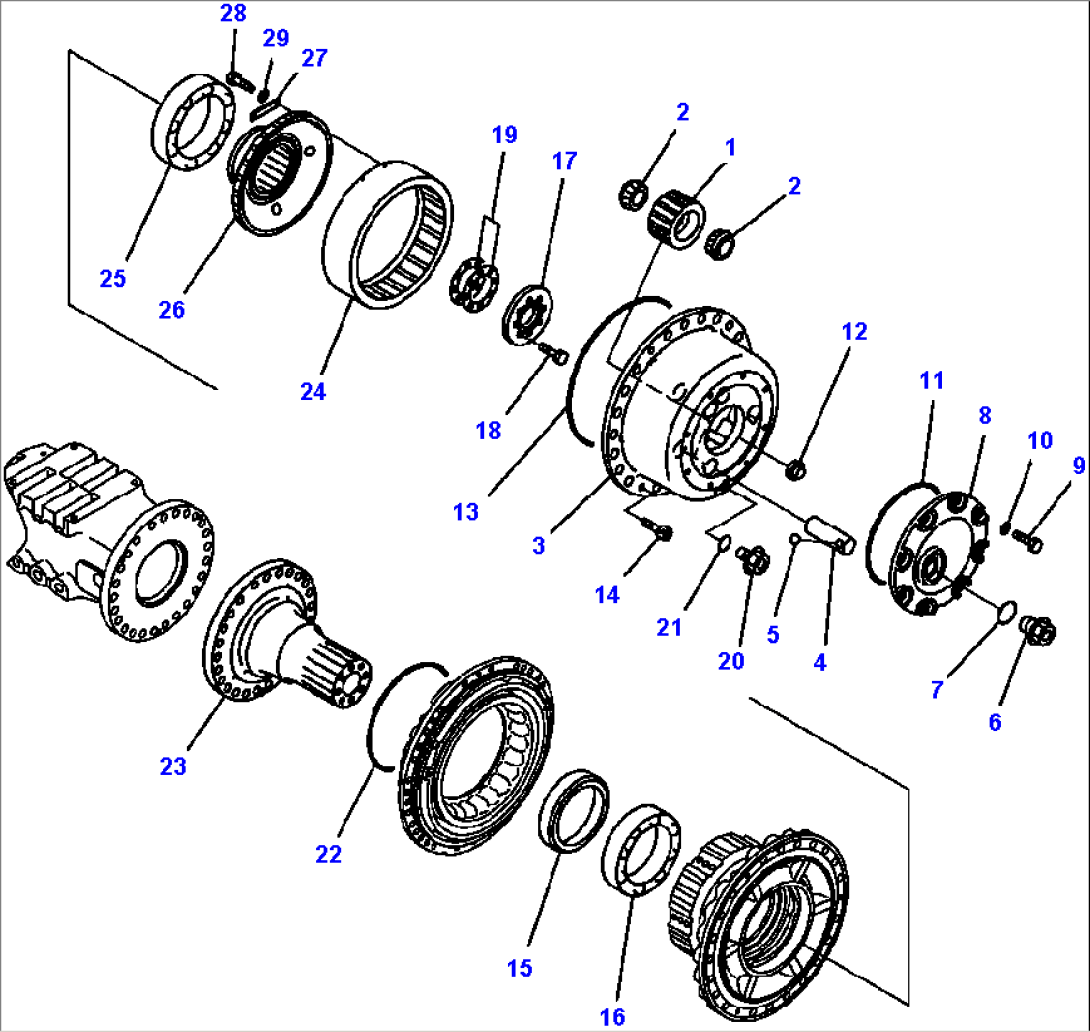

| AXLE ASSEMBLY, CENTER (SEE FIG. F3450-01A0) | A11001-- | |||
| 56C-23-22002 | FINAL DRIVE ASSEMBLY | A11001-- | ||
| 56C-23-24002 | FINAL DRIVE ASSEMBLY, L.H. | A11001-- | ||
| 1 | 56B-22-12530 | GEAR, PLANET | A11001-- | |
| 2 | 421-22-12770 | BEARING | A11001-- | |
| 3 | 56B-22-12610 | CARRIER | A11001-- | |
| 4 | 424-22-12510 | SHAFT | A11001-- | |
| 5 | 04260-01587 | BALL | A11001-- | |
| 6 | 07044-13620 | PLUG | A11001-- | |
| 7 | 07002-13634 | O-RING | A11001-- | |
| 8 | 56B-22-12621 | COVER | A11001-- | |
| 9 | 01010-E1235 | BOLT | A11001-- | |
| 10 | 01643-31232 | WASHER | A11001-- | |
| 11 | 07000-15280 | O-RING | A11001-- | |
| 12 | 286-22-12630 | BUTTON | A11001-- | |
| 13 | 07000-15410 | O-RING | A11001-- | |
| 14 | 01252-71025 | BOLT | A11001-- | |
| 15 | 56B-22-12631 | RETAINER | A11001-- | |
| 16 | 56D-22-22350 | BEARING | A11001-- | |
| 17 | 421-22-12220 | RETAINER | A11001-- | |
| 18 | 01010-61450 | BOLT | A11001-- | |
| 19 | 421-22-12190 | SHIM, 1.00 MM | A11001-- | |
| 421-22-12180 | SHIM, 0.50 MM | A11001-- | ||
| 421-22-12170 | SHIM, 0.20 MM | A11001-- | ||
| 421-22-12160 | SHIM, 0.05 MM | A11001-- | ||
| 20 | 07044-12412 | PLUG | A11001-- | |
| 21 | 07002-12434 | O-RING | A11001-- | |
| 22 | 07000-15300 | O-RING | A11001-- | |
| 23 | 56B-22-13210 | TUBE | A11001-- | |
| 24 | 56B-22-12541 | RING, GEAR | A11001-- | |
| 25 | 421-22-12790 | BEARING | A11001-- | |
| 26 | 56B-22-12342 | HUB | A11001-- | |
| 27 | 421-22-12360 | PLATE | A11001-- | |
| 28 | 01010-E0820 | BOLT | A11001-- | |
| 29 | 01643-30823 | WASHER | A11001-- |
