| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, CENTER (SEE FIG. F3450-01A0 ) | A11001-- | |||

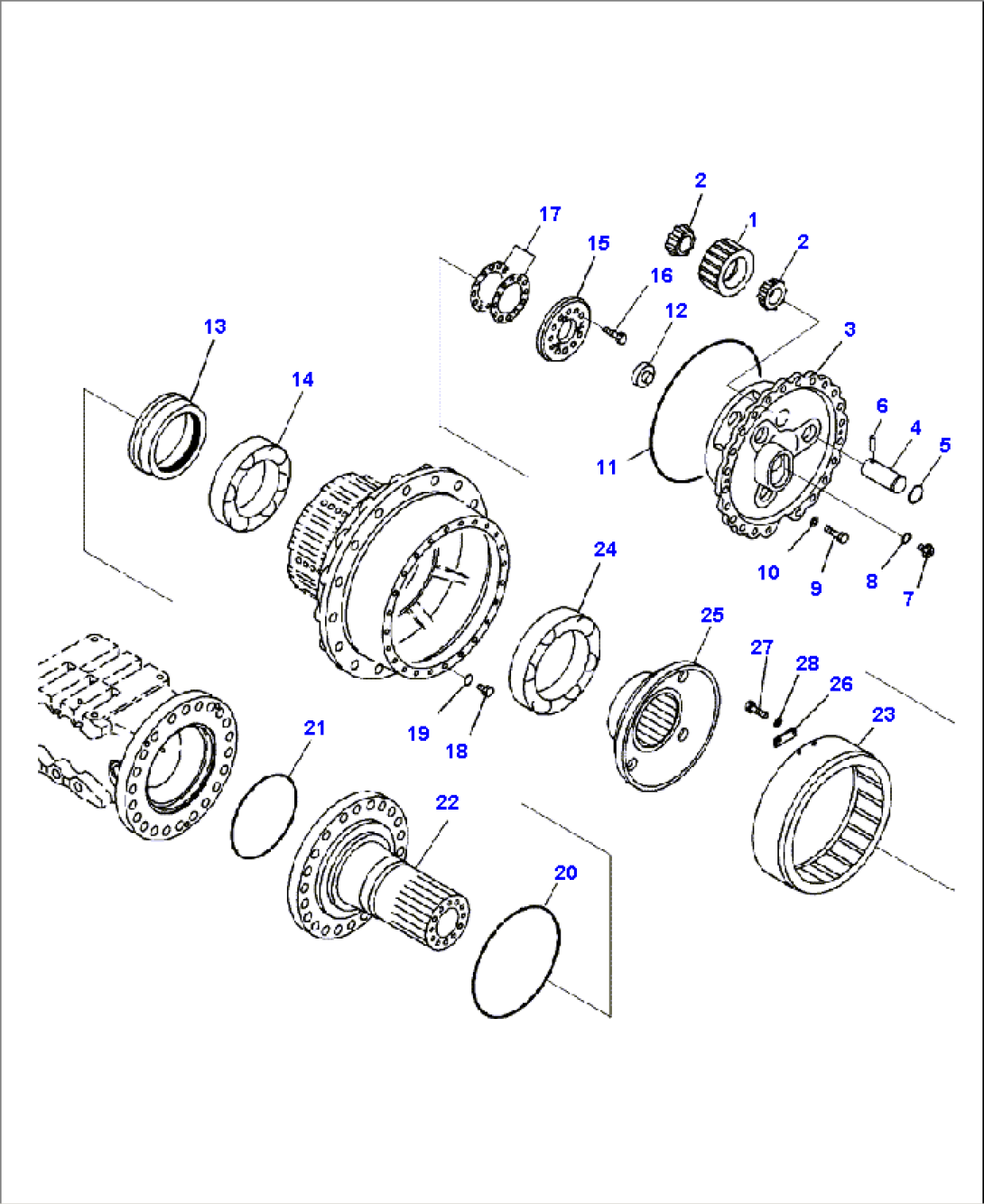

| FINAL DRIVE ASSEMBLY, CENTER (SEE FIG. F3450-05A0 ) | A11001-- | |||
| 56D-23-25051 | FINAL DRIVE ASSEMBLY, R.H. CENTER | A11001-- | ||
| 1 | 56D-22-12531 | GEAR | A11001-- | |
| 2 | 423-22-12811 | BEARING | A11001-- | |
| 3 | 56D-22-12611 | CARRIER | A11001-- | |
| 4 | 56D-22-12511 | SHAFT | A11001-- | |
| 5 | 07000-13034 | O-RING | A11001-- | |
| 6 | 197 23 R1 | PIN | A11001-- | |
| 7 | 07044-13620 | PLUG, WITH MAGNET | A11001-- | |
| 8 | 07002-13634 | O-RING | A11001-- | |
| 9 | 01010-61440 | BOLT | A11001-- | |
| 10 | 01643-31445 | WASHER | A11001-- | |
| 11 | 07000-15335 | O-RING | A11001-- | |
| 12 | 286-22-12630 | BUTTON | A11001-- | |
| 13 | 56D-23-12632 | RETAINER | A11001-- | |
| 14 | 56D-22-22340 | BEARING | A11001-- | |
| 15 | 56D-22-12211 | RETAINER | A11001-- | |
| 16 | 01010-E1250 | BOLT | A11001-- | |
| 17 | 423-22-12260 | SHIM, T = 0.05 MM | A11001-- | |
| 423-22-12250 | SHIM, T = 0.2 MM | A11001-- | ||
| 423-22-12240 | SHIM, T = 0.3 MM | A11001-- | ||
| 423-22-12230 | SHIM, T = 1.0 MM | A11001-- | ||
| 18 | 07040-11409 | PLUG | A11001-- | |
| 19 | 07002-11423 | O-RING | A11001-- | |
| 20 | 07000-15260 | O-RING | A11001-- | |
| 21 | 07000-15200 | O-RING | A11001-- | |
| 22 | 56D-22-13212 | TUBE, SPIRAL | A11001-- | |
| 23 | 56D-22-12542 | GEAR, RING | A11001-- | |
| 24 | 56D-22-22350 | BEARING | A11001-- | |
| 25 | 56D-22-12340 | HUB | A11001-- | |
| 26 | 423-22-12561 | PLATE | A11001-- | |
| 27 | 01010-E0820 | BOLT | A11001-- | |
| 28 | 01643-30823 | WASHER | A11001-- |
