| Item | Part No. | Part Name | Qty | Serial No. |

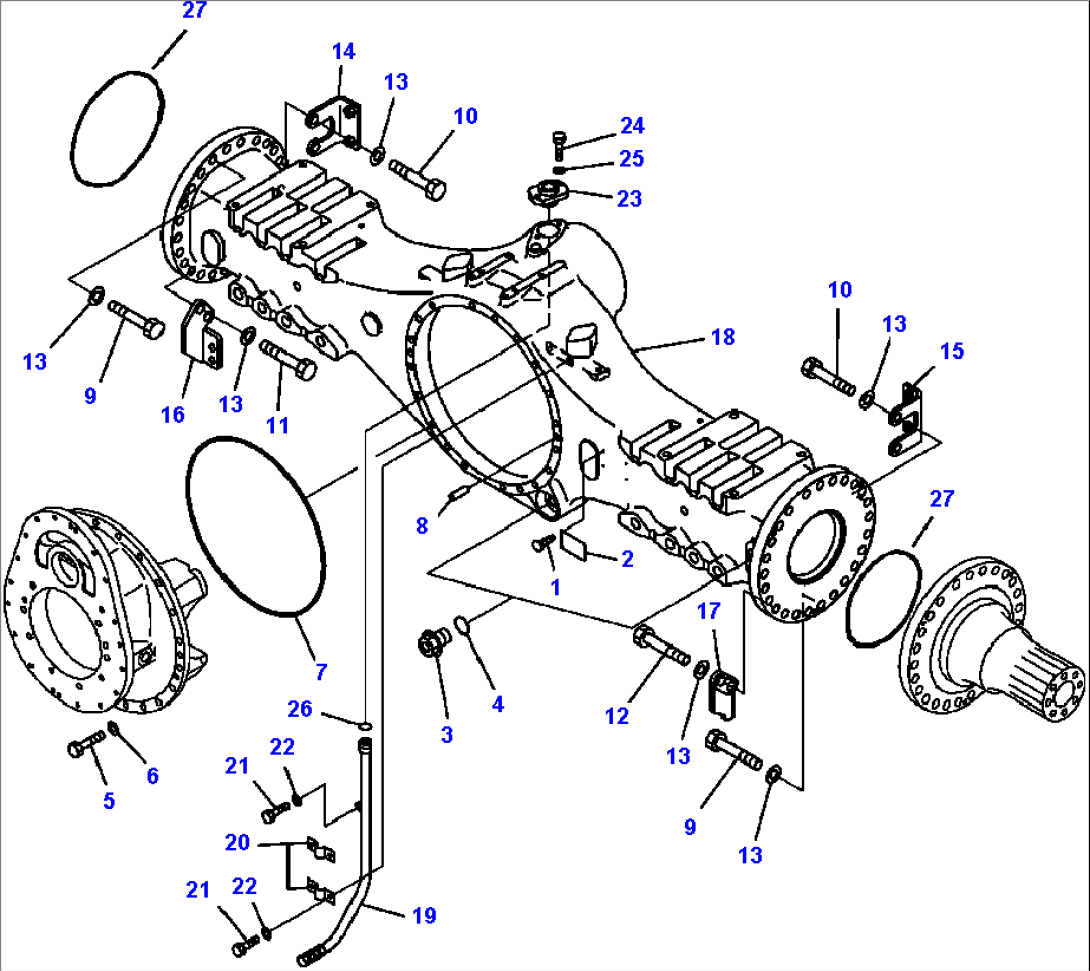

| AXLE ASSEMBLY, CENTER (SEE FIG. F3450-01A0) | A11001-- | |||
| 1 | 04418-03060 | SCREW | A11001-- | |
| 2 | (NSS) | PLATE, NAME, LIMITED SUPPLY | A11001-- | |
| 3 | 07044-13620 | PLUG | A11001-- | |
| 4 | 07002-13634 | O-RING | A11001-- | |
| 5 | 01010-61450 | BOLT | A11001-- | |
| 6 | 01643-31445 | WASHER | A11001-- | |
| 7 | 07000-15445 | O-RING | A11001-- | |
| 8 | 04020-01638 | PIN, DOWEL | A11001-- | |
| 9 | 01011-62000 | BOLT | A11001-- | |
| 10 | 01011-62010 | BOLT | A11001-- | |
| 11 | 01011-62015 | BOLT | A11001-- | |
| 12 | 01011-62020 | BOLT | A11001-- | |
| 13 | 01643-32060 | WASHER | A11001-- | |
| 14 | 56B-43-18181 | BRACKET | A11001-- | |
| 15 | 56B-43-18152 | BRACKET | A11001-- | |
| 16 | 56B-33-21850 | BRACKET | A11001-- | |
| 17 | 56B-33-21860 | BRACKET | A11001-- | |
| 18 | 56C-23-13113 | HOUSING | A11001-- | |
| 19 | 56B-23-19660 | TUBE | A11001-- | |
| 20 | 07282-02288 | CLAMP | A11001-- | |
| 21 | 01010-E1020 | BOLT | A11001-- | |
| 22 | 01643-51032 | WASHER | A11001-- | |
| 23 | 56B-22-11990 | FLANGE | A11001-- | |
| 24 | 01010-E1030 | BOLT | A11001-- | |
| 25 | 01643-51032 | WASHER | A11001-- | |
| 26 | 07000-13022 | O-RING | A11001-- | |
| 27 | 07000-15170 | O-RING | A11001-- |
