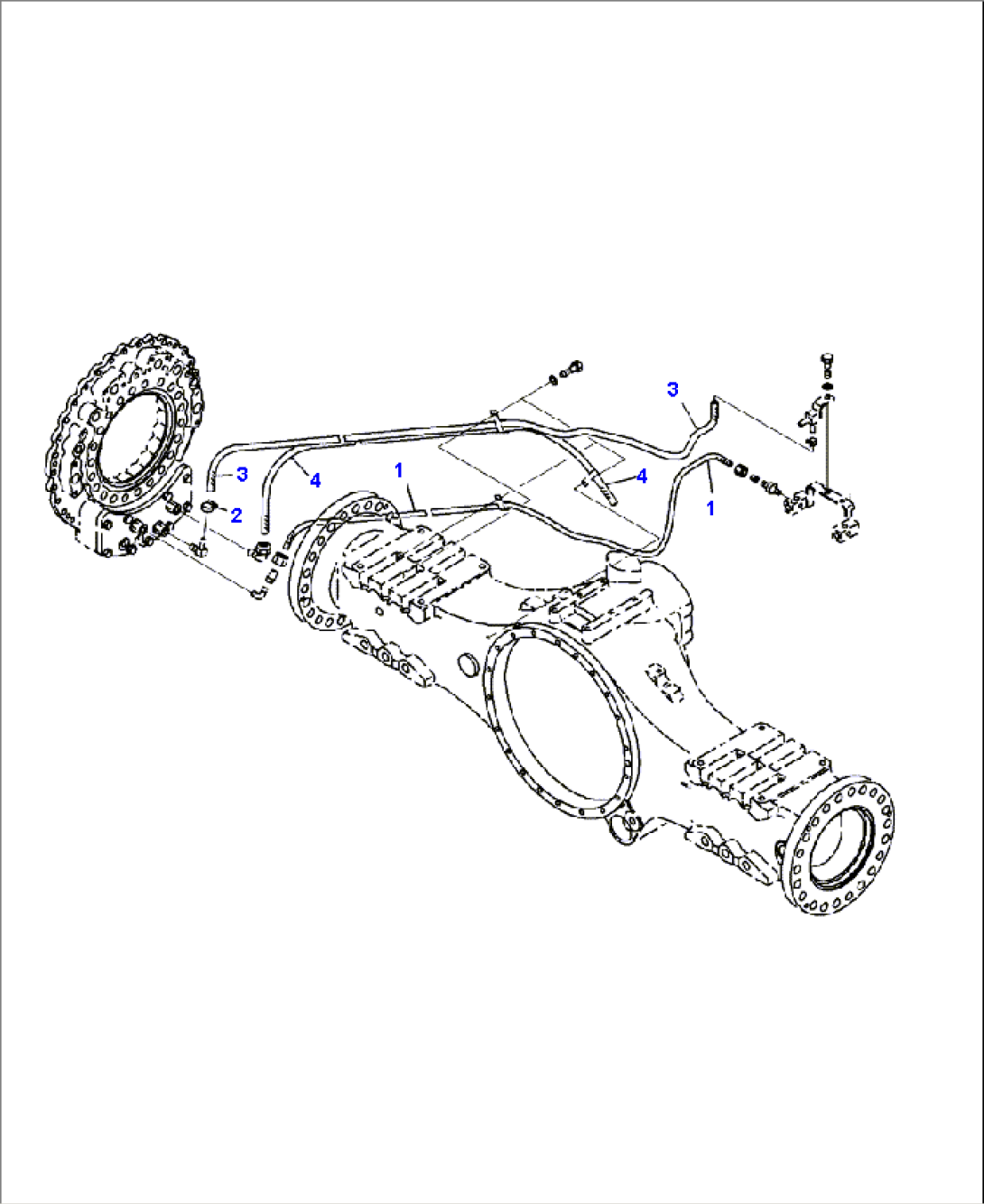

| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, CENTER (SEE FIG. F3450-01A0 ) | A11001-- | |||
| FINAL DRIVE ASSEMBLY, CENTER (SEE FIG. F3450-05A0 ) | A11001-- | |||
| FINAL DRIVE ASSEMBLY, R.H. CENTER (SEE FIG. F3450-09A0 ) | A11001-- | |||
| 1 | (NSS) | TUBE | A11001-- | |
| 2 | 11Y-09-11130 | CLAMP | A11001-- | |
| 3 | 07270-41015 | TUBE | A11001-- | |
| 4 | 566-35-42710 | TUBE | A11001-- |
