| Item | Part No. | Part Name | Qty | Serial No. |

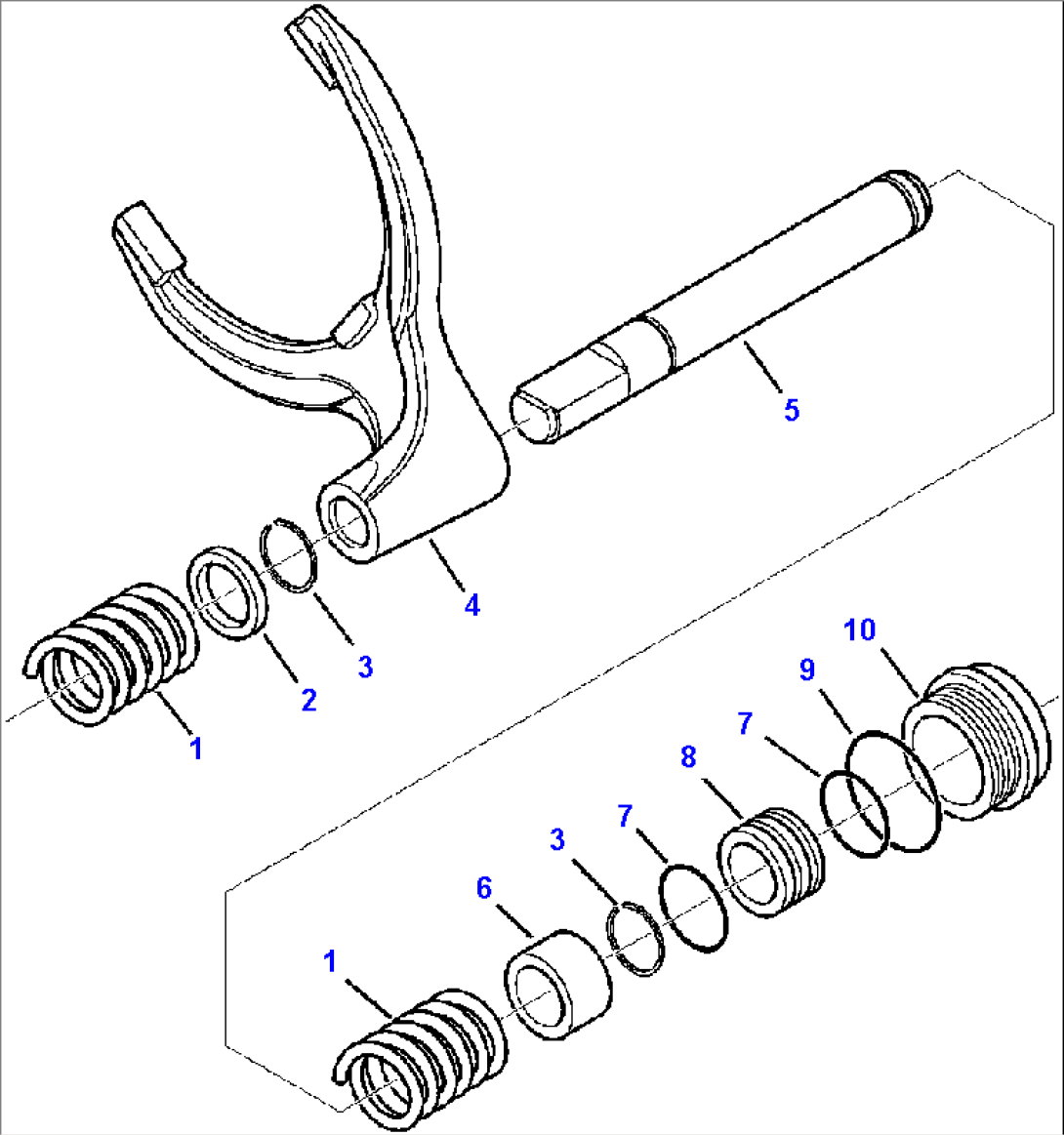

| REAR AXLE ( SEE FIG. F3460-01A0 ) | A13001-- | |||
| 1 | CA0125756 | SPRING | A13001-- | |
| 2 | CA0146770 | WASHER, THRUST | A13001-- | |
| 3 | CA0024736 | RING, SNAP | A13001-- | |
| 4 | CA0148563 | FORK | A13001-- | |
| 5 | CA0148783 | PISTON | A13001-- | |
| 6 | CA0146769 | SLEEVE | A13001-- | |
| 7 | CA0028121 | O-RING | A13001-- | |
| 8 | CA0139139 | PISTON | A13001-- | |
| 9 | CA0028512 | O-RING | A13001-- | |
| 10 | CA0148564 | CYLINDER | A13001-- |
