| Item | Part No. | Part Name | Qty | Serial No. |

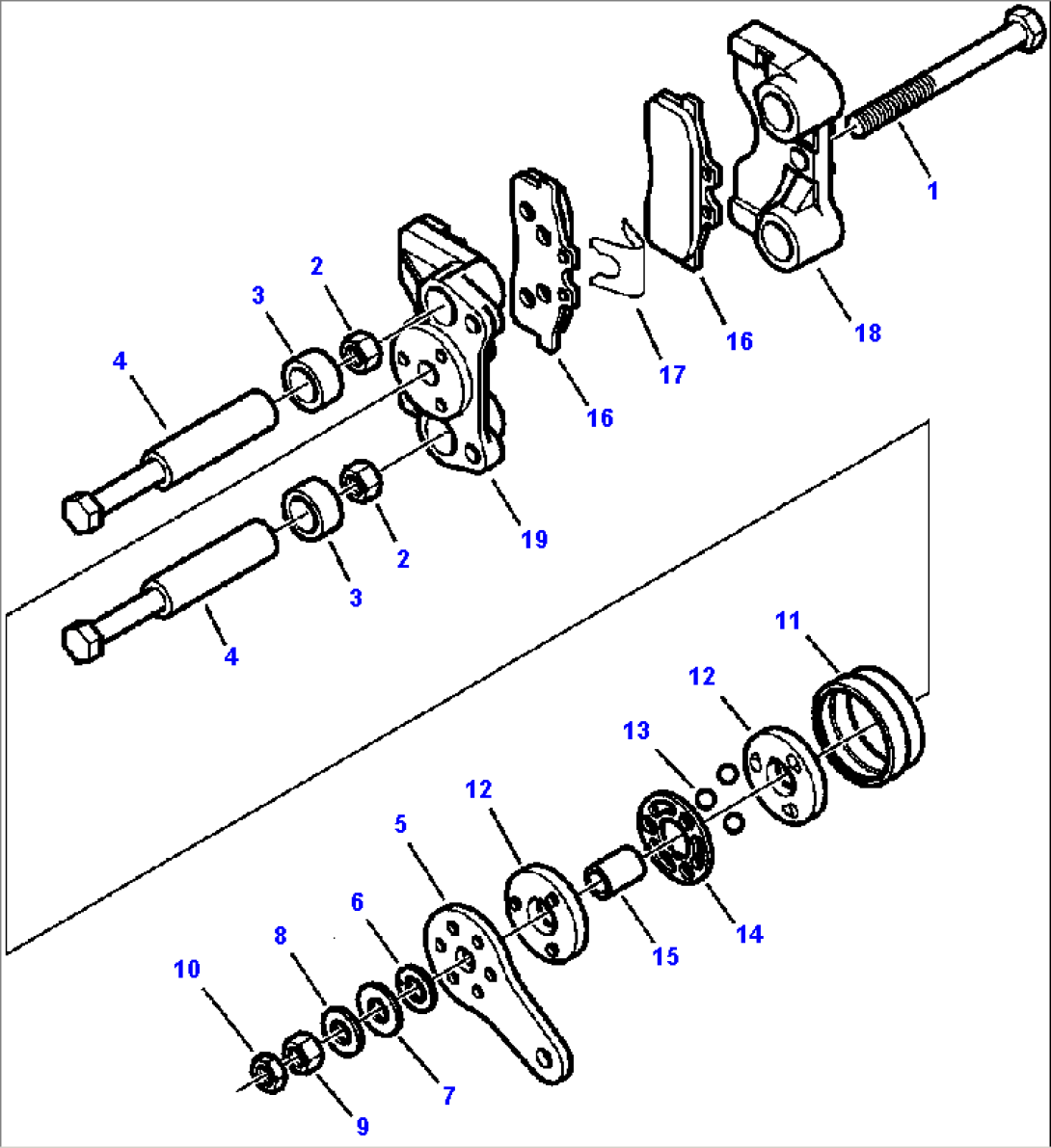

| REAR AXLE ( SEE FIG. F3460-01A0 ) | A13001-- | |||
| CA0149826 | CALIPER | A13001-- | ||
| CA0048645 | KIT, BRAKE | A13001-- | ||
| 1 | (NSS) | BOLT | A13001-- | |
| 2 | (NSS) | NUT | A13001-- | |
| 3 | (NSS) | SLEEVE | A13001-- | |
| 4 | (NSS) | BOLT | A13001-- | |
| 5 | (NSS) | LEVER | A13001-- | |
| 6 | (NSS) | WASHER | A13001-- | |
| 7 | (NSS) | WASHER | A13001-- | |
| 8 | (NSS) | WASHER | A13001-- | |
| 9 | (NSS) | NUT | A13001-- | |
| 10 | (NSS) | NUT | A13001-- | |
| CA0049465 | KIT, CAM | A13001-- | ||
| 11 | (NSS) | SLEEVE, OUTER | A13001-- | |
| 12 | (NSS) | CAM | A13001-- | |
| 13 | (NSS) | BALL | A13001-- | |
| 14 | (NSS) | PLATE, BALL | A13001-- | |
| 15 | (NSS) | SLEEVE, INNER | A13001-- | |
| CA0048646 | KIT, PAD | A13001-- | ||
| 16 | (NSS) | PAD, BRAKE | A13001-- | |
| 17 | (NSS) | CLIP, SPRING | A13001-- | |
| 18 | (NSS) | HOUSING, INNER | A13001-- | |
| 19 | (NSS) | HOUSING, OUTER | A13001-- |
