| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, REAR (SEE FIG. F3560-01A0) | A11001-- | |||

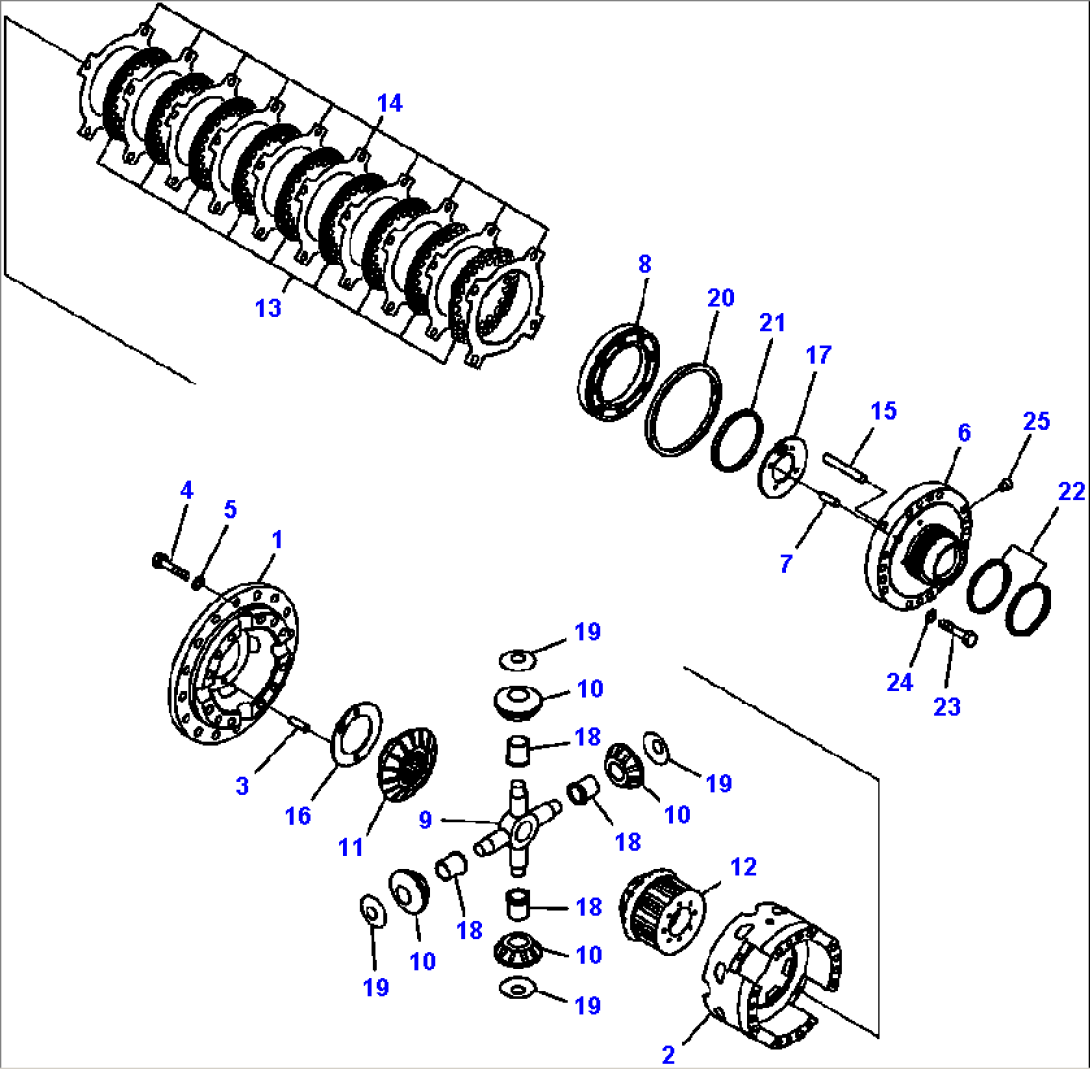

| DIFFERENTIAL ASSEMBLY (SEE FIG. F3560-01A0) | A11001-- | |||
| 56C-22-11601 | CASE | A11001-- | ||
| 1 | (NSS) | CASE | A11001-- | |
| 2 | (NSS) | CASE | A11001-- | |
| 3 | 175-21-12180 | PIN | A11001-- | |
| 4 | 01010-61685 | BOLT | A11001-- | |
| 5 | 01643-51645 | WASHER | A11001-- | |
| 6 | 56B-22-11531 | CASE | A11001-- | |
| 7 | 175-21-12180 | PIN | A11001-- | |
| 8 | 56B-22-11911 | PISTON | A11001-- | |
| 9 | 56C-22-11411 | SHAFT | A11001-- | |
| 10 | 56C-22-17151 | PINION | A11001-- | |
| 11 | 421-23-31461 | GEAR | A11001-- | |
| 12 | 56C-22-11430 | GEAR, SIDE | A11001-- | |
| 13 | 56B-22-11610 | DISK | A11001-- | |
| 14 | 56B-22-11620 | PLATE | A11001-- | |
| 15 | 561-88-68940 | PIN | A11001-- | |
| 16 | 421-23-31630 | WASHER | A11001-- | |
| 17 | 56B-22-11450 | WASHER | A11001-- | |
| 18 | 56C-22-17170 | BUSHING | A11001-- | |
| 19 | 56C-22-11561 | WASHER | A11001-- | |
| 20 | 103-15-12811 | RING | A11001-- | |
| 21 | 415-15-12360 | RING, SEAL | A11001-- | |
| 22 | 14Y-22-13270 | RING | A11001-- | |
| 23 | 01010-61465 | BOLT | A11001-- | |
| 24 | 01643-51445 | WASHER | A11001-- | |
| 25 | 07043-70108 | PLUG | A11001-- |
