| Item | Part No. | Part Name | Qty | Serial No. |

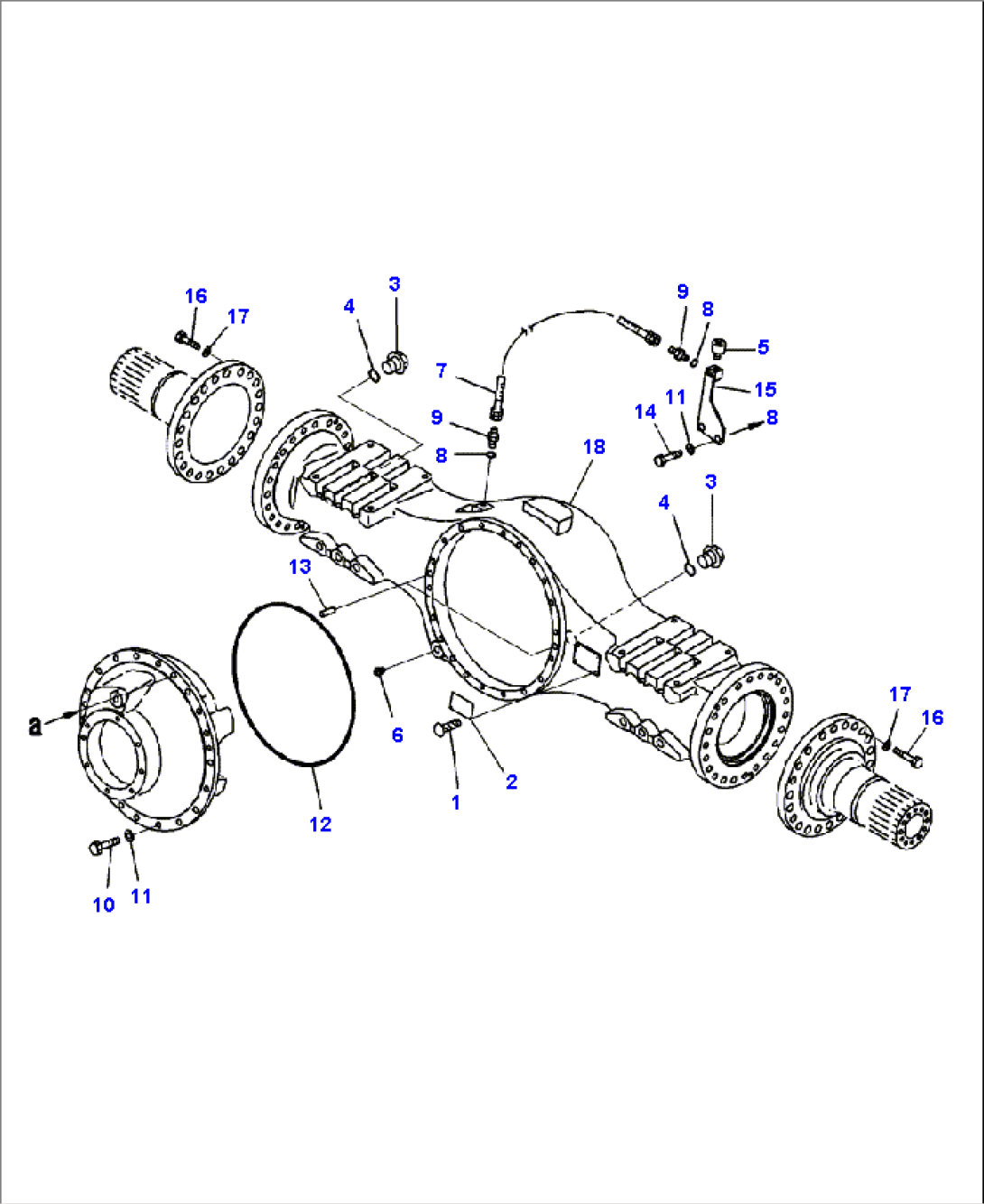

| AXLE ASSEMBLY, REAR (SEE FIG. F3560-01A0 ) | A11001-- | |||
| 1 | 04418-03060 | SCREW | A11001-- | |
| 2 | (NSS) | NAME PLATE | A11001-- | |
| 3 | 07044-13620 | PLUG, WITH MAGNET | A11001-- | |
| 4 | 07002-13634 | O-RING | A11001-- | |
| 5 | 07030-00252 | BREATHER | A11001-- | |
| 6 | 07042-70415 | PLUG, TAPER | A11001-- | |
| 7 | 02760-00204 | HOSE, FACE SEAL TYPE | A11001-- | |
| 8 | 02896-11008 | O-RING | A11001-- | |
| 9 | 8255-62-4431 | CONNECTOR | A11001-- | |
| 10 | 01010-61445 | BOLT | A11001-- | |
| 11 | 01643-31445 | WASHER | A11001-- | |
| 12 | 07000-15430 | O-RING | A11001-- | |
| 13 | 04020-01638 | PIN, DOWEL | A11001-- | |
| 14 | 01010-61450 | BOLT | A11001-- | |
| 15 | 56D-22-22620 | BRACKET | A11001-- | |
| 16 | 01010-62065 | BOLT | A11001-- | |
| 17 | 01643-32060 | WASHER | A11001-- | |
| 18 | 56D-22-13124 | HOUSING | A11001-- |
