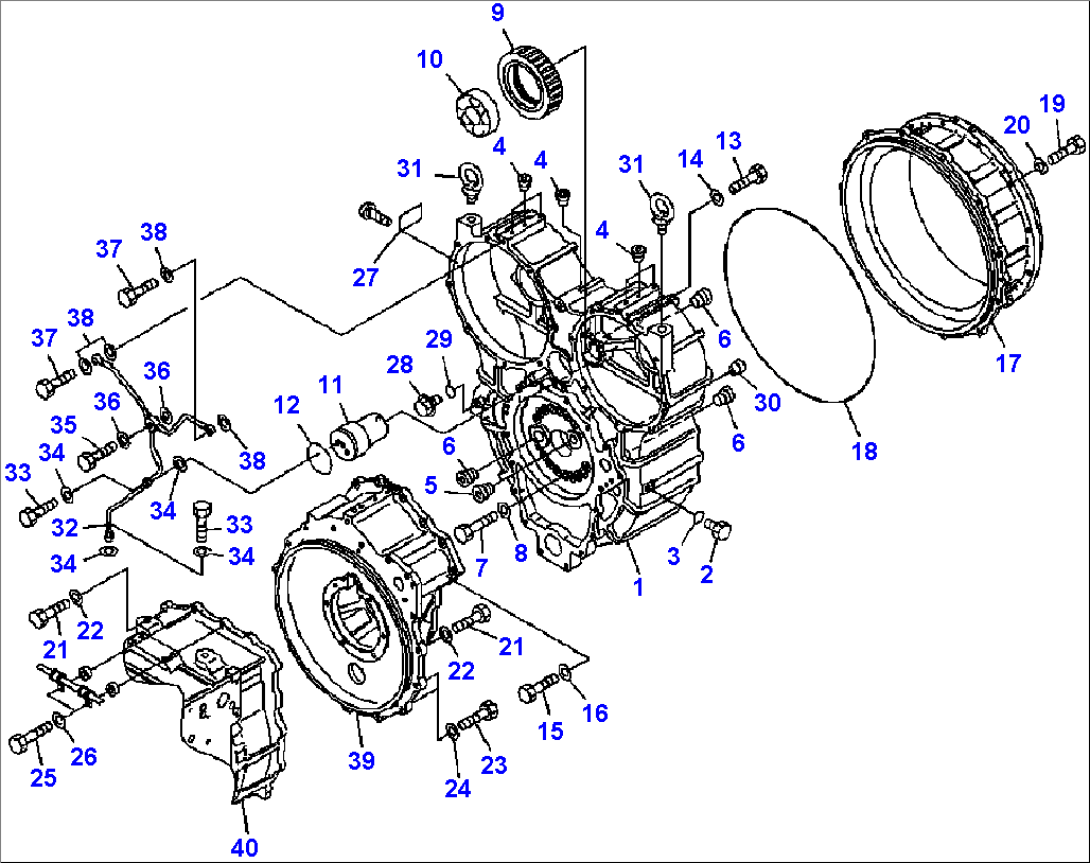

| Item | Part No. | Part Name | Qty | Serial No. |
| | TORQUE CONVERTER (SEE FIG. F4310-51A0 ) | | A92001-- |
| | TORQUE CONVERTER WITH LOCK-UP (SEE FIG. F4310-51A1 ) | | A92001-- |
| 1 | 425-13-33112 | CASE | | A92001-- |
| 2 | 07040-11409 | PLUG | | A92001-- |
| 3 | 07002-61423 | O-RING | | A92001-- |
| 4 | 07043-70108 | PLUG | | A92001-- |
| 5 | 425-13-33740 | PLUG | | A92001-- |
| 6 | 07043-71019 | PLUG | | A92001-- |
| 7 | 01010-81255 | BOLT | | A92001-- |
| 8 | 01643-31232 | WASHER | | A92001-- |
| 9 | 425-13-34231 | GEAR | | A92001-- |
| 10 | 425-13-34250 | BEARING | | A92001-- |
| 11 | 425-13-34240 | SHAFT | | A92001-- |
| 12 | 07000-72085 | O-RING | | A92001-- |
| 13 | 01010-81445 | BOLT | | A92001-- |
| 14 | 01643-31445 | WASHER | | A92001-- |
| 15 | 01010-81240 | BOLT | | A92001-- |
| 16 | 01643-31232 | WASHER | | A92001-- |
| 17 | 425-13-33122 | HOUSING | | A92001-- |
| 18 | 561-15-69620 | O-RING | | A92001-- |
| 19 | 01010-81240 | BOLT | | A92001-- |
| 20 | 01643-31232 | WASHER | | A92001-- |
| 21 | 01010-81240 | BOLT | | A92001-- |
| 22 | 01643-31232 | WASHER | | A92001-- |
| 23 | 01010-81245 | BOLT | | A92001-- |
| 24 | 01643-31232 | WASHER | | A92001-- |
| 25 | 01010-81255 | BOLT | | A92001-- |
| 26 | 01643-31232 | WASHER | | A92001-- |
| 27 | (NSS) | PLATE, NAME (LIMITED SUPPLY) | | A92001-- |
| N/I | 04418-03060 | SCREW | | A92001-- |
| 28 | 708-8E-16150 | PLUG | | A92001-- |
| 29 | 07002-61023 | O-RING | | A92001-- |
| 30 | 419-15-12750 | ORIFICE | | A92001-- |
| 31 | 04530-12438 | BOLT | | A92001-- |
| 32 | 425-13-33721 | TUBE | | A92001-- |
| 33 | 07206-31014 | BOLT | | A92001-- |
| 34 | 07005-01412 | GASKET | | A92001-- |
| 35 | 07206-31216 | BOLT | | A92001-- |
| 36 | 07005-01612 | GASKET | | A92001-- |
| 37 | 07206-30812 | BOLT | | A92001-- |
| 38 | 07005-01212 | GASKET | | A92001-- |
| 39 | | CASE (SEE FIG. F4310-55A0 ) | | A92001-- |
| 40 | | CASE (SEE FIG. F4320-58A0 ) | | A92001-- |
| | | | |
| | F1 - THIS PART IS SUPPLIED PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY. | | |
