| Item | Part No. | Part Name | Qty | Serial No. |

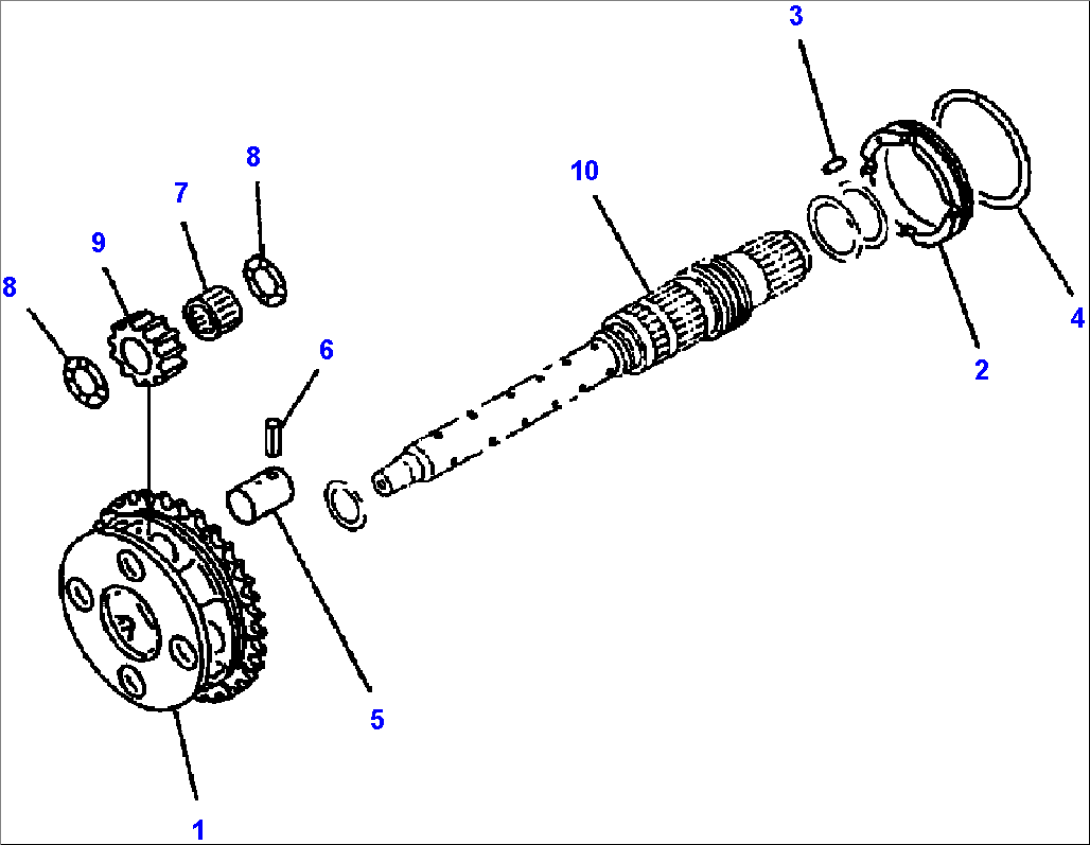

| TRANSMISSION ASSEMBLY (SEE FIG. F4320-01A0 ) | A52001-- | |||
| 1 | 426-15-12310 | CARRIER, REVERSE | A52001-- | |
| 2 | 426-15-12820 | COLLAR | A52001-- | |
| 3 | 04020-00616 | PIN, DOWEL | A52001-- | |
| 4 | 07018-11706 | RING, SEAL | A52001-- | |
| 5 | 426-15-12510 | SHAFT | A52001-- | |
| 6 | 04025-00624 | PIN, SPRING | A52001-- | |
| 7 | 426-15-19510 | BEARING | A52001-- | |
| 8 | 09233-14520 | WASHER, THRUST | A52001-- | |
| 9 | 426-15-12410 | GEAR | A52001-- | |
| 10 | SHAFT (SEE FIG. F4320-59A0 ) | A52001-- |
