| Item | Part No. | Part Name | Qty | Serial No. |

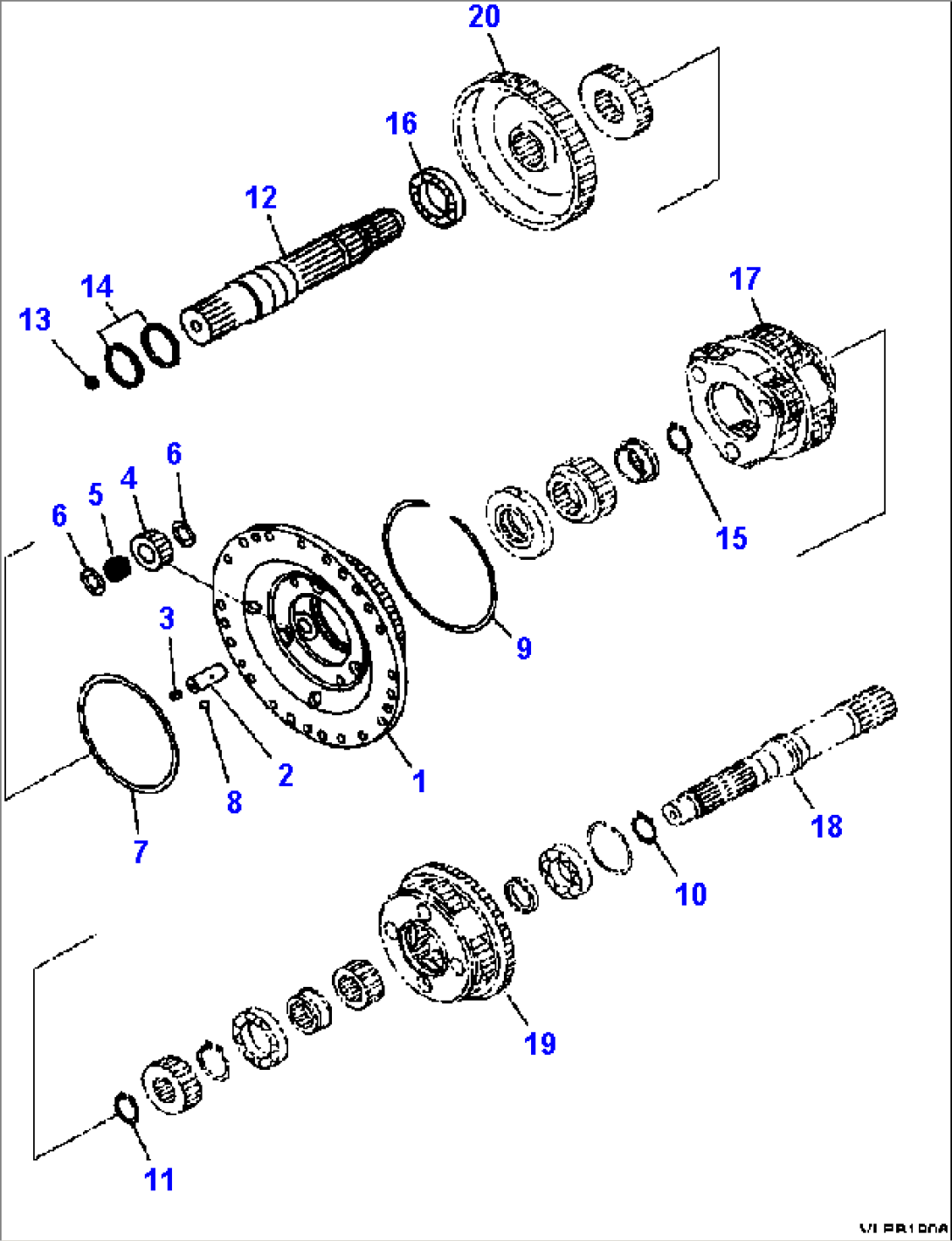

| TRANSMISSION ASSEMBLY (SEE FIG. F4320-51A0 ) | A70001 -- | |||
| 2 | ||||
| 1 | 425-15-22350 | CARRIER | A70001 -- | |
| 425-15-02141 | SHAFT ASSEMBLY | A70001 -- | ||
| 2 | (NSS) | SHAFT | A70001 -- | |
| 3 | 145-14-11320 | PLUG | A70001 -- | |
| 4 | 425-15-22450 | GEAR | A70001 -- | |
| 5 | 425-15-29440 | BEARING | A70001 -- | |
| 6 | 712-85-12560 | WASHER, THRUST | A70001 -- | |
| 7 | 130-09-15790 | RING, SNAP | A70001 -- | |
| 8 | 04260-00635 | BALL | A70001 -- | |
| 9 | 232-15-19540 | RING, SNAP | A70001 -- | |
| 10 | 04064-05020 | RING, SNAP | A70001 -- | |
| 11 | 04064-04818 | RING, SNAP | A70001 -- | |
| 425-15-02130 | SHAFT ASSEMBLY | A70001 -- | ||
| 12 | (NSS) | SHAFT | A70001 -- | |
| 13 | 423-15-12190 | PLUG | A70001 -- | |
| 14 | 07018-10753 | RING, SEAL | A70001 -- | |
| 15 | 04064-05020 | RING, SNAP | A70001 -- | |
| 16 | 06000-06013 | BEARING, BALL | A70001 -- | |
| 17 | CARRIER (SEE FIG. F4320-57A0 ) | A70001 -- | ||
| 18 | INPUT SHAFT (SEE FIG. F4320-60A0 ) | A70001 -- | ||
| 19 | CARRIER (SEE FIG. F4320-56A0 ) | A70001 -- | ||
| 20 | GEAR (SEE FIG. F4320-55A0 ) | A70001 -- |
