| Item | Part No. | Part Name | Qty | Serial No. |

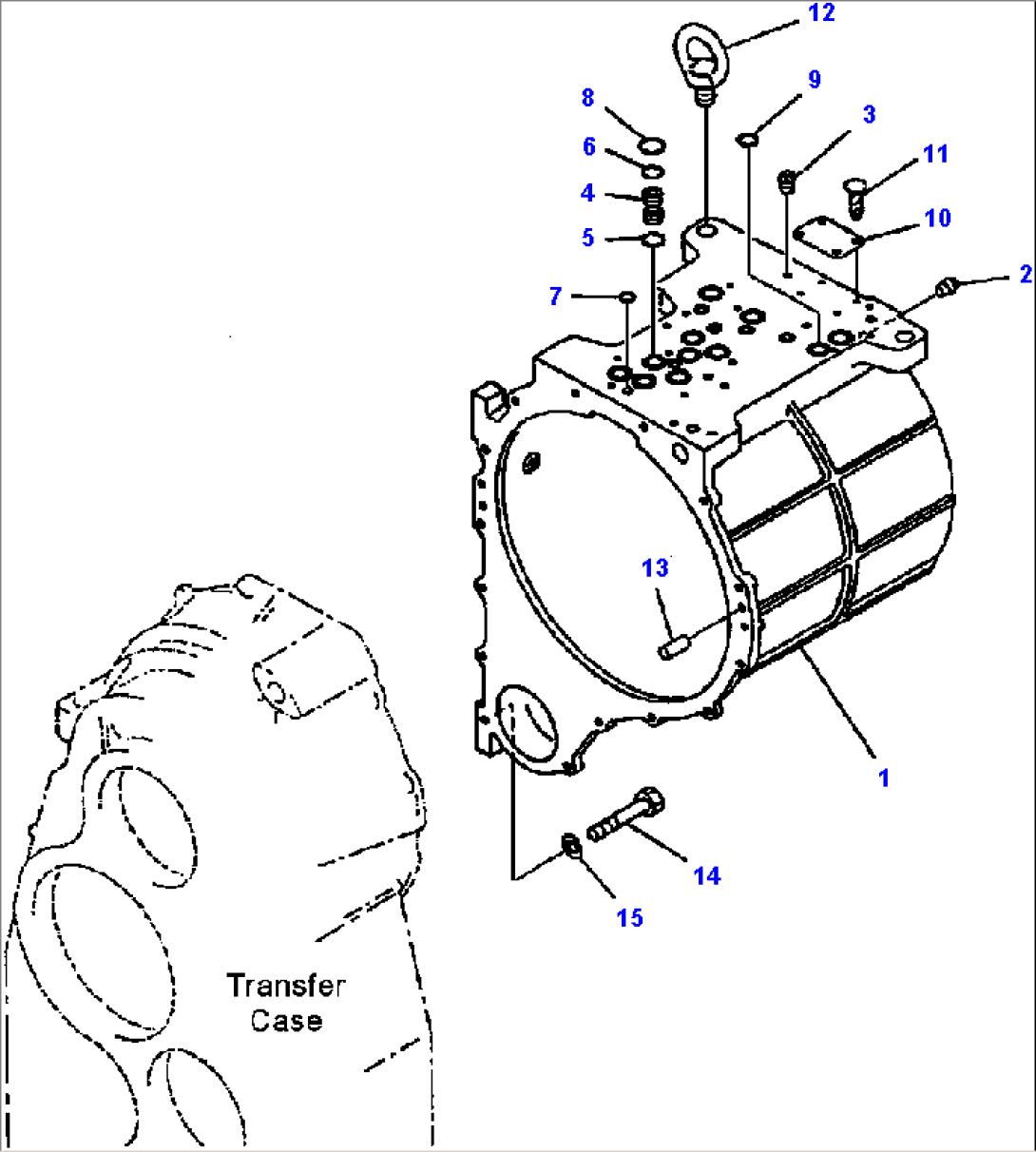

| TRANSMISSION ASSEMBLY (SEE FIG. F4320-01A0 ) | A52001-- | |||
| 2 | ||||
| 426-15-00100 | CASE ASSEMBLY | A52001-- | ||
| 1 | (NSS) | CASE | A52001-- | |
| 2 | 07042-00312 | PLUG | A52001-- | |
| 3 | 07043-70211 | PLUG | A52001-- | |
| 4 | 425-15-11310 | SLEEVE | A52001-- | |
| 5 | 07000-72021 | O-RING | A52001-- | |
| 6 | 170-09-17130 | O-RING | A52001-- | |
| 7 | 07000-72018 | O-RING | A52001-- | |
| 8 | 07000-73030 | O-RING | A52001-- | |
| 9 | 07000-72021 | O-RING | A52001-- | |
| 10 | 09608-05080 | NAMEPLATE | A52001-- | |
| 11 | 04418-13060 | SCREW | A52001-- | |
| 12 | 04530-02438 | BOLT, EYE | A52001-- | |
| 13 | 04020-01228 | PIN | A52001-- | |
| 14 | 01010-81260 | BOLT | A52001-- | |
| 15 | 01643-31232 | WASHER | A52001-- |
