| Item | Part No. | Part Name | Qty | Serial No. |

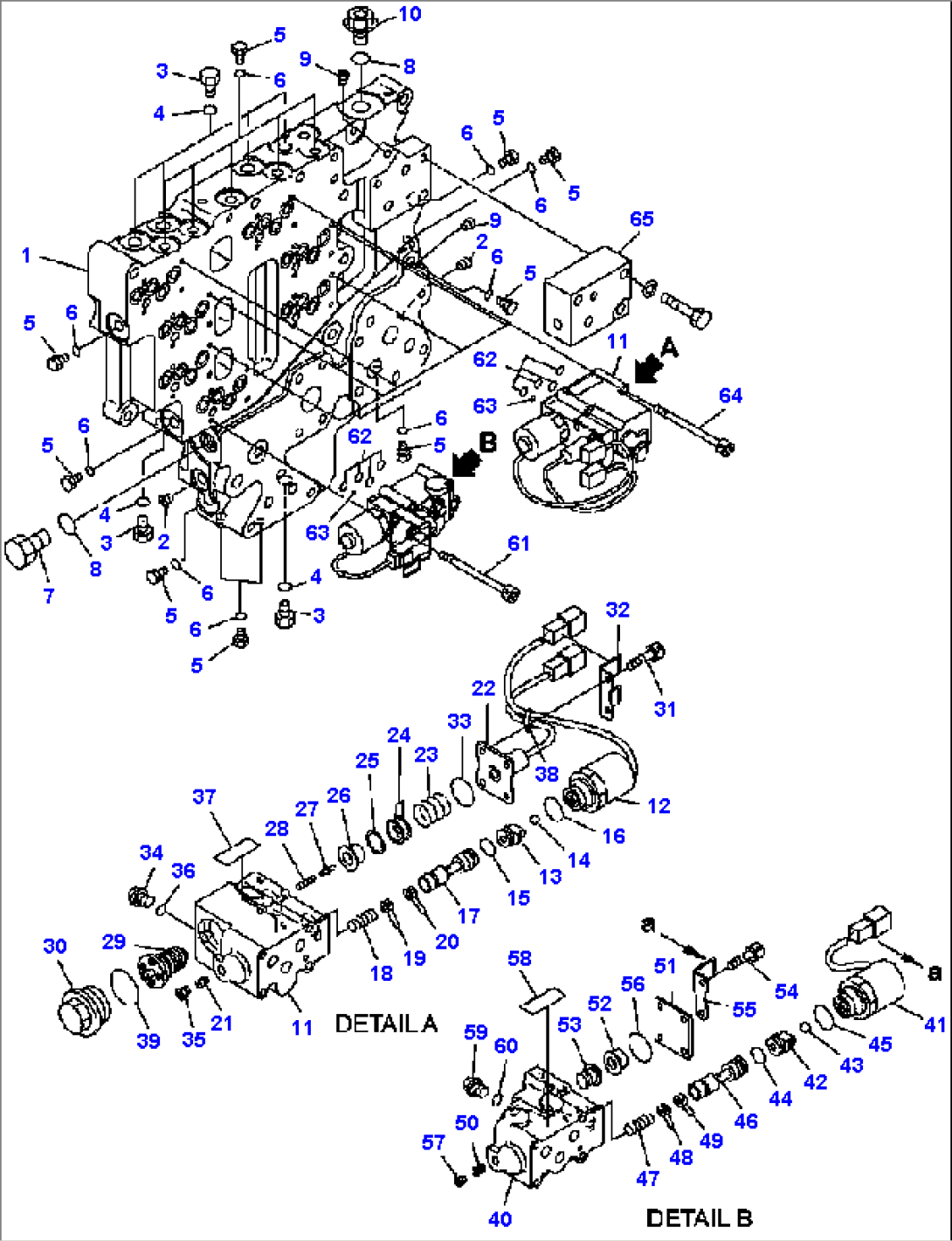

| TRANSMISSION ASSEMBLY (WITH LOCK-UP) (SEE FIG. F4320-51A0 ) | A92001-- | |||
| 425-15-35011 | VALVE ASSEMBLY | A92001-- | ||
| 1 | 425-15-35131 | SEAT | A92001-- | |
| 2 | 07043-70312 | PLUG | A92001-- | |
| 3 | 07040-11612 | PLUG | A92001-- | |
| 4 | (NSS) | O-RING | A92001-- | |
| 5 | 07040-11409 | PLUG | A92001-- | |
| 6 | 07002-61423 | O-RING | A92001-- | |
| 7 | 07040-13016 | PLUG | A92001-- | |
| 8 | 07002-63034 | O-RING | A92001-- | |
| 9 | 07043-70211 | PLUG | A92001-- | |
| 10 | 426-15-46451 | ADAPTER | A92001-- | |
| 425-15-35201 | ECMV ASSEMBLY | A92001-- | ||
| 11 | (NSS) | BODY | A92001-- | |
| 12 | (NSS) | SOLENOID | A92001-- | |
| 13 | (NSS) | VALVE | A92001-- | |
| 14 | (NSS) | BALL | A92001-- | |
| 15 | (NSS) | O-RING | A92001-- | |
| 16 | (NSS) | O-RING | A92001-- | |
| 17 | (NSS) | SPOOL | A92001-- | |
| 18 | (NSS) | SPRING | A92001-- | |
| 19 | (NSS) | SHIM, 0.5 MM | A92001-- | |
| 20 | (NSS) | SHIM, 0.2 MM | A92001-- | |
| 21 | (NSS) | PLUG | A92001-- | |
| 22 | (NSS) | SWITCH ASSEMBLY | A92001-- | |
| 23 | (NSS) | SPRING | A92001-- | |
| 24 | (NSS) | SHIM, 0.5 MM | A92001-- | |
| 25 | (NSS) | SHIM, 0.2 MM | A92001-- | |
| 26 | (NSS) | SHEET | A92001-- | |
| 27 | (NSS) | PIN | A92001-- | |
| 28 | (NSS) | SPRING | A92001-- | |
| 29 | (NSS) | SPOOL | A92001-- | |
| 30 | (NSS) | PLUG | A92001-- | |
| 31 | 01252-60510 | BOLT | A92001-- | |
| 32 | 714-23-15690 | BRACKET | A92001-- | |
| 33 | (NSS) | O-RING | A92001-- | |
| 34 | 708-8E-16150 | PLUG | A92001-- | |
| 35 | (NSS) | PLUG | A92001-- | |
| 36 | 07002-61023 | O-RING | A92001-- | |
| 37 | (NSS) | PLATE | A92001-- | |
| 38 | (NSS) | BAND | A92001-- | |
| 39 | (NSS) | O-RING | A92001-- | |
| 425-15-35300 | ECMV ASEMBLY | A92001-- | ||
| 40 | (NSS) | BODY | A92001-- | |
| 41 | (NSS) | SOLENOID | A92001-- | |
| 42 | (NSS) | VALVE | A92001-- | |
| 43 | (NSS) | BALL | A92001-- | |
| 44 | (NSS) | O-RING | A92001-- | |
| 45 | (NSS) | O-RING | A92001-- | |
| 46 | (NSS) | SPOOL | A92001-- | |
| 47 | (NSS) | SPRING | A92001-- | |
| 48 | (NSS) | SHIM, 0.5 MM | A92001-- | |
| 49 | (NSS) | SHIM, 0.2 MM | A92001-- | |
| 50 | (NSS) | PLUG | A92001-- | |
| 51 | (NSS) | PLATE | A92001-- | |
| 52 | (NSS) | SPRING SEAT | A92001-- | |
| 53 | (NSS) | SLEEVE | A92001-- | |
| 54 | 01252-60510 | BOLT | A92001-- | |
| 55 | 425-15-35330 | BRACKET | A92001-- | |
| 56 | (NSS) | O-RING | A92001-- | |
| 57 | (NSS) | PLUG | A92001-- | |
| 58 | (NSS) | PLATE | A92001-- | |
| 59 | 708-8E-16150 | PLUG | A92001-- | |
| 60 | 07002-61023 | O-RING | A92001-- | |
| 61 | 01252-70650 | BOLT | A92001-- | |
| 62 | 07000-72015 | O-RING | A92001-- | |
| 63 | 07000-71007 | O-RING | A92001-- | |
| 64 | 01252-70650 | BOLT | A92001-- | |
| 65 | 426-15-45141 | BLOCK | A92001-- |
