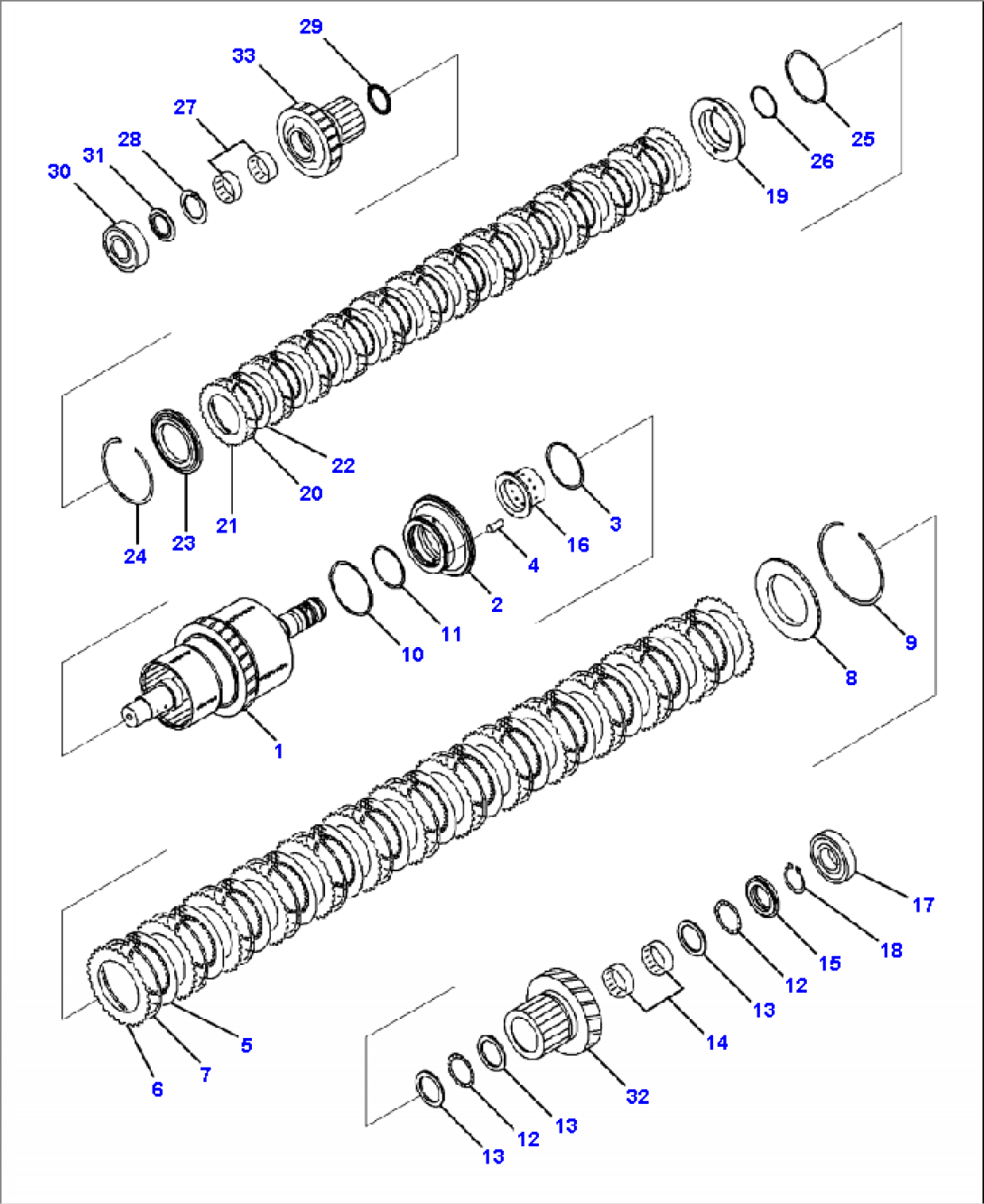

| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40000 | TRANSMISSION ASSEMBLY | A47001-- | ||
| OR | ||||
| 714-07-40010 | TRANSMISSION ASSEMBLY, WITH LOCKUP | A47001-- | ||
| 714-07-42010 | CLUTCH ASSEMBLY | A47001-- | ||
| 1 | 714-07-42111 | SHAFT AND CYLINDER ASSEMBLY FRONT | A47001-- | |
| N/I | (NSS) | SHAFT | A47001-- | |
| N/I | (NSS) | PLUG | A47001-- | |
| N/I | (NSS) | HOUSING | A47001-- | |
| 2 | 714-07-42650 | PISTON | A47001-- | |
| 3 | 362-15-19520 | RING | A47001-- | |
| 4 | 04020-00514 | PIN | A47001-- | |
| 5 | 714-07-49731 | CLUTCH | A47001-- | |
| 6 | 714-07-12680 | PLATE | A47001-- | |
| 7 | 714-07-12691 | SPRING | A47001-- | |
| 8 | 714-07-12711 | PLATE | A47001-- | |
| 9 | 714-07-12720 | RING, SNAP | A47001-- | |
| 10 | 714-08-19230 | RING, SEAL | A47001-- | |
| 11 | 714-07-19320 | RING, SEAL | A47001-- | |
| 12 | 419-15-12640 | BEARING | A47001-- | |
| 13 | 714-07-46240 | PLATE | A47001-- | |
| 14 | 714-23-19410 | BEARING | A47001-- | |
| 15 | 714-07-46111 | SPACER | A47001-- | |
| 16 | 714-07-42621 | PISTON | A47001-- | |
| 17 | 714-07-29350 | BEARING | A47001-- | |
| 18 | 04064-05520 | RING | A47001-- | |
| 19 | 714-07-42611 | PISTON | A47001-- | |
| 20 | 714-08-19710 | DISC | A47001-- | |
| 21 | 714-08-19730 | PLATE | A47001-- | |
| 22 | 714-08-12911 | SPRING | A47001-- | |
| 23 | 714-08-12610 | PLATE | A47001-- | |
| 24 | 714-08-19510 | RING, SNAP | A47001-- | |
| 25 | 714-07-49210 | RING, SEAL | A47001-- | |
| 26 | 714-07-49220 | RING, SEAL | A47001-- | |
| 27 | 419-15-12271 | BEARING | A47001-- | |
| 28 | 714-11-19510 | WASHER | A47001-- | |
| 29 | 714-07-49810 | WASHER | A47001-- | |
| 30 | 714-07-49650 | BEARING | A47001-- | |
| 31 | 714-11-12710 | SPACER | A47001-- | |
| 32 | 714-07-42411 | GEAR, FORWARD | A47001-- | |
| 33 | 714-07-42712 | GEAR, 1ST | A47001-- |
