| Item | Part No. | Part Name | Qty | Serial No. |

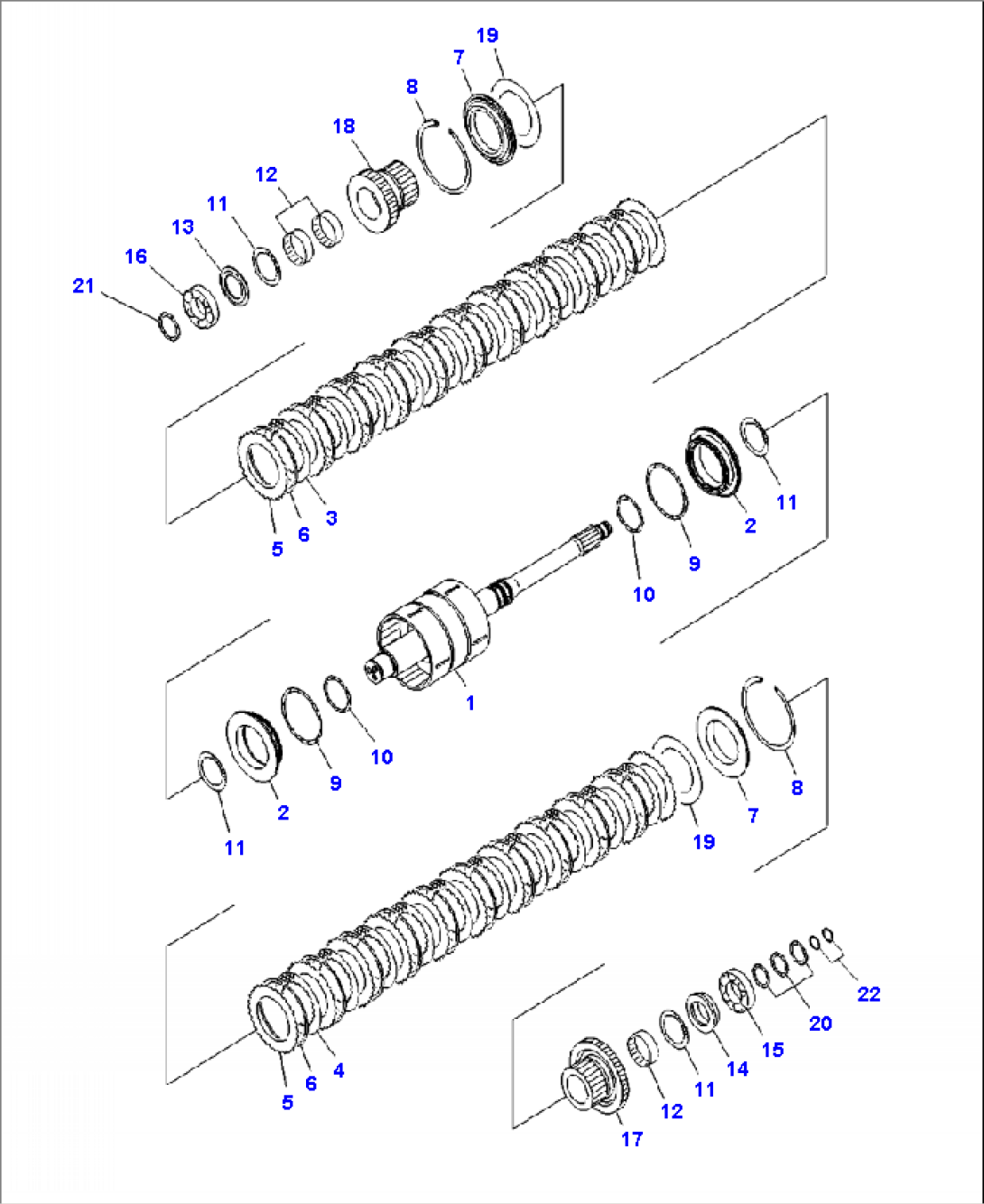

| TRANSMISSION ( SEE FIG. F4350-51A0 ) | ||||
| 714-12-32050 | CLUTCH | |||
| 1 | 714-12-32152 | SHAFT AND CYLINDER ASSEMBLY | ||
| 2 | 714-12-32651 | PISTON, FORWARD AND REVERSE | ||
| 3 | 714-07-29710 | DISC | ||
| 4 | 714-07-29720 | DISC | ||
| 5 | 714-16-19730 | PLATE, SEPARATE | ||
| 6 | 56D-15-12710 | SPRING, WAVE | ||
| 7 | 714-07-22610 | PLATE, END | ||
| 8 | 419-15-12140 | RING, SNAP | ||
| 9 | 714-11-19230 | RING, SEAL | ||
| 10 | 714-16-19210 | RING, SEAL | ||
| 11 | 714-08-19570 | WASHER, THRUST | ||
| 12 | 714-23-19431 | BEARING | ||
| 13 | 714-11-12720 | SPACER | ||
| 14 | 714-07-22711 | SPACER | ||
| 15 | 714-12-19380 | BEARING | ||
| 16 | 419-15-12591 | BEARING | ||
| 17 | 714-12-32421 | GEAR, 38 TEETH, FORWARD | ||
| 18 | 714-12-32412 | GEAR, 30 TEETH, REVERSE | ||
| 19 | 714-07-22720 | PLATE | ||
| 20 | 714-12-39210 | RING, SEAL | ||
| 21 | 714-12-39230 | RING, SEAL | ||
| 22 | 714-21-19810 | RING, SEAL |
