| Item | Part No. | Part Name | Qty | Serial No. |

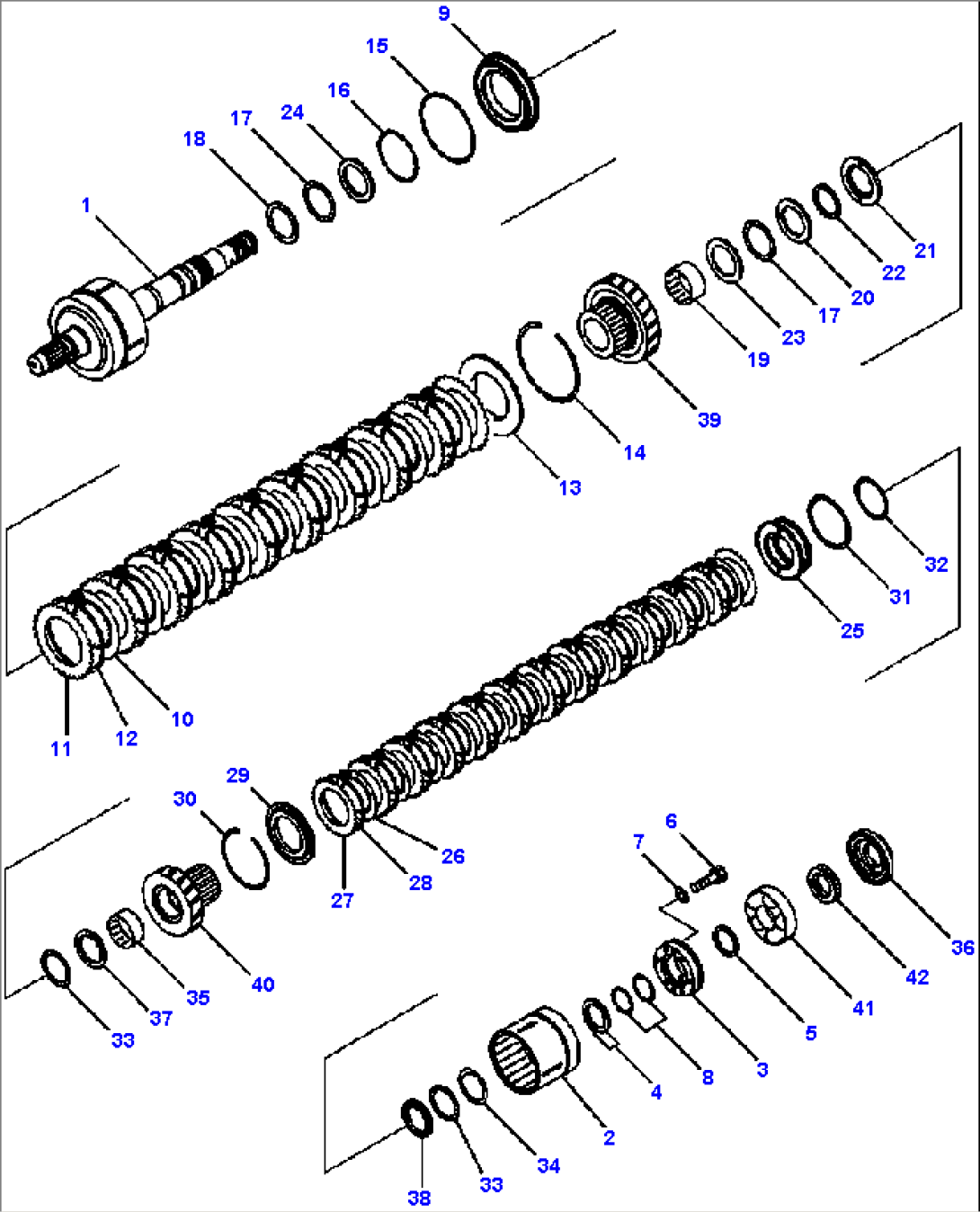

| TRANSMISSION (SEE FIG. F4350-52A0) | A45001-- | |||
| 714-07-42030 | CLUTCH ASSEMBLY | A45001-- | ||
| 1 | 714-07-42131 | SHAFT AND CYLINDER, 3RD AND 4TH | A45001-- | |
| N/I | (NSS) | SHAFT | A45001-- | |
| N/I | (NSS) | ORIFICE | A45001-- | |
| N/I | (NSS) | PLUG | A45001-- | |
| N/I | (NSS) | HOUSING | A45001-- | |
| N/I | (NSS) | SCREW, 3MM | A45001-- | |
| 2 | 714-07-42591 | HOUSING | A45001-- | |
| 3 | 714-07-47721 | COVER | A45001-- | |
| 4 | 22W-15-16241 | COLLAR | A45001-- | |
| 5 | 134-13-31580 | RING | A45001-- | |
| 6 | 01010-80840 | BOLT | A45001-- | |
| 7 | 01643-30823 | WASHER | A45001-- | |
| 8 | 714-12-39210 | RING, SEAL | A45001-- | |
| 9 | 714-16-12660 | PISTON | A45001-- | |
| 10 | 714-12-19711 | DISC | A45001-- | |
| 11 | 714-16-19730 | PLATE | A45001-- | |
| 12 | 56D-15-12710 | SPRING | A45001-- | |
| 13 | 714-12-12610 | PLATE | A45001-- | |
| 14 | 419-15-12140 | RING, SNAP | A45001-- | |
| 15 | 714-16-19230 | RING, SEAL | A45001-- | |
| 16 | 714-16-19210 | RING, SEAL | A45001-- | |
| 17 | 419-15-12670 | BEARING | A45001-- | |
| 18 | 419-15-12680 | WASHER | A45001-- | |
| 19 | 714-07-49460 | BEARING | A45001-- | |
| 20 | 714-07-46151 | SPACER | A45001-- | |
| 21 | 714-07-46161 | SPACER | A45001-- | |
| 22 | 714-07-46171 | SPACER | A45001-- | |
| 23 | 714-07-46250 | PLATE | A45001-- | |
| 24 | 714-07-46270 | PLATE | A45001-- | |
| 25 | 714-07-42631 | PISTON | A45001-- | |
| 26 | 714-07-49741 | CLUTCH | A45001-- | |
| 27 | 714-07-49751 | PLATE | A45001-- | |
| 28 | 714-10-12811 | SPRING | A45001-- | |
| 29 | 714-07-48281 | PLATE | A45001-- | |
| 30 | 714-01-11380 | RING, SNAP | A45001-- | |
| 31 | 714-10-19220 | RING, SEAL | A45001-- | |
| 32 | 714-08-19210 | RING, SEAL | A45001-- | |
| 33 | 419-15-12640 | BEARING | A45001-- | |
| 34 | 419-15-12650 | WASHER | A45001-- | |
| 35 | 714-23-19420 | BEARING | A45001-- | |
| 36 | 714-07-46180 | SPACER | A45001-- | |
| 37 | 714-07-46240 | PLATE | A45001-- | |
| 38 | 714-07-46260 | PLATE | A45001-- | |
| 39 | 714-07-42441 | GEAR, 3RD | A45001-- | |
| 40 | 714-07-42451 | GEAR, 4TH | A45001-- | |
| 41 | 714-07-49470 | BEARING | A45001-- | |
| 42 | 714-07-49510 | BEARING | A45001-- |
