| Item | Part No. | Part Name | Qty | Serial No. |

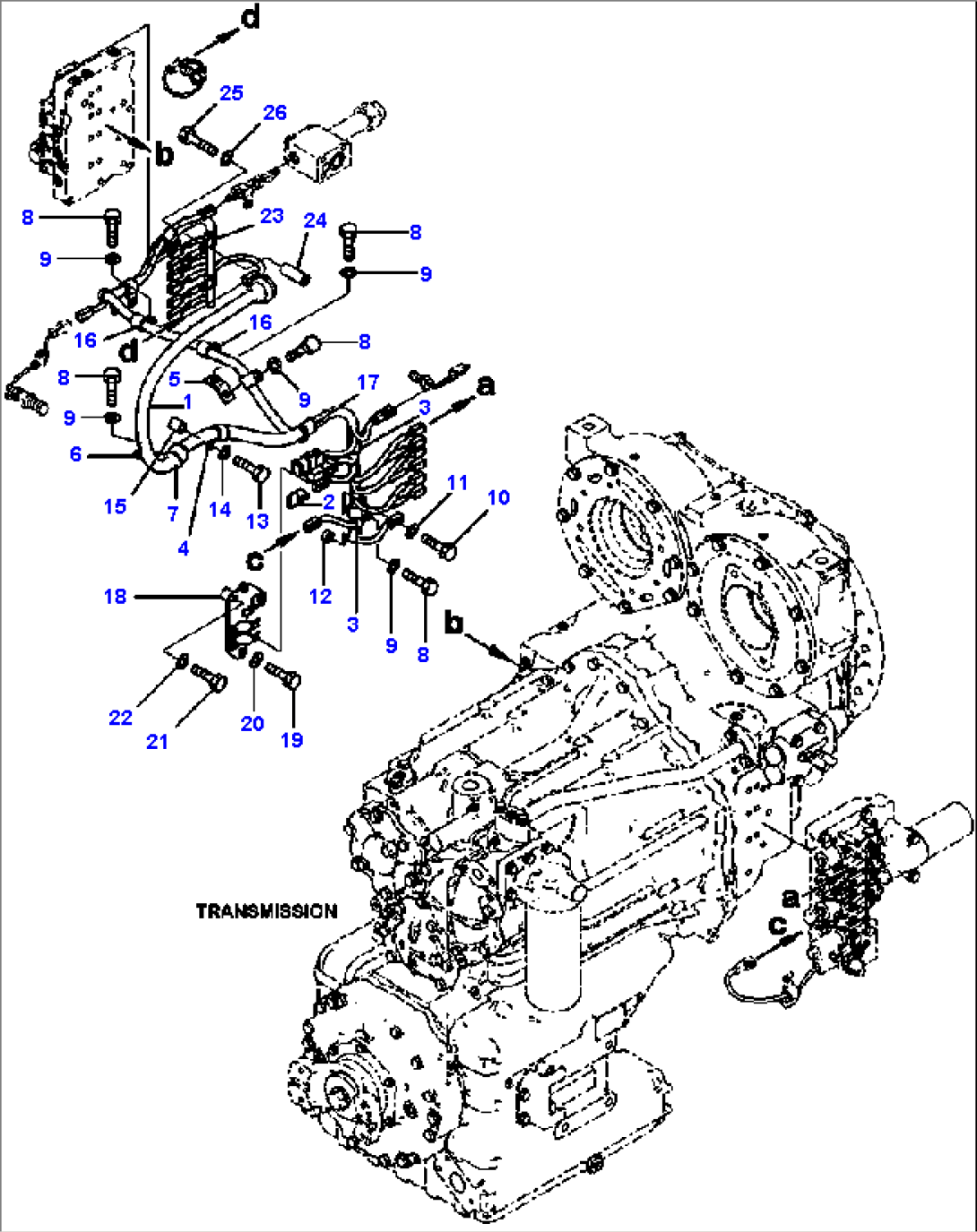

| TRANSMISSION (SEE FIG. F4350-52A0) | A45001-- | |||
| 1 | 714-07-45812 | WIRING HARNESS | A45001-- | |
| 2 | 21J-06-13661 | DIODE | A45001-- | |
| 3 | 600-051-2180 | CLIP | A45001-- | |
| 4 | 600-051-2260 | CLIP | A45001-- | |
| 5 | 714-12-38760 | BRACKET | A45001-- | |
| 6 | 23B-40-43210 | CLIP | A45001-- | |
| 7 | 07095-20523 | CUSHION | A45001-- | |
| 8 | 01010-81020 | BOLT | A45001-- | |
| 9 | 01643-31032 | WASHER | A45001-- | |
| 10 | 01010-81030 | BOLT | A45001-- | |
| 11 | 01643-31032 | WASHER | A45001-- | |
| 12 | 560-43-15220 | WASHER | A45001-- | |
| 13 | 01010-81045 | BOLT | A45001-- | |
| 14 | 01643-31032 | WASHER | A45001-- | |
| 15 | 144-874-7470 | BOSS | A45001-- | |
| 16 | 600-051-2190 | CLIP | A45001-- | |
| 17 | 600-051-2200 | CLIP | A45001-- | |
| 18 | 714-07-45851 | BRACKET | A45001-- | |
| 19 | 01010-81020 | BOLT | A45001-- | |
| 20 | 01643-31032 | WASHER | A45001-- | |
| 21 | 01010-81045 | BOLT | A45001-- | |
| 22 | 01643-31032 | WASHER | A45001-- | |
| 23 | 600-051-2160 | CLIP | A45001-- | |
| 24 | 6150-81-6940 | SPACER | A45001-- | |
| 25 | 01010-81075 | BOLT | A45001-- | |
| 26 | 01643-31032 | WASHER | A45001-- |
