| Item | Part No. | Part Name | Qty | Serial No. |

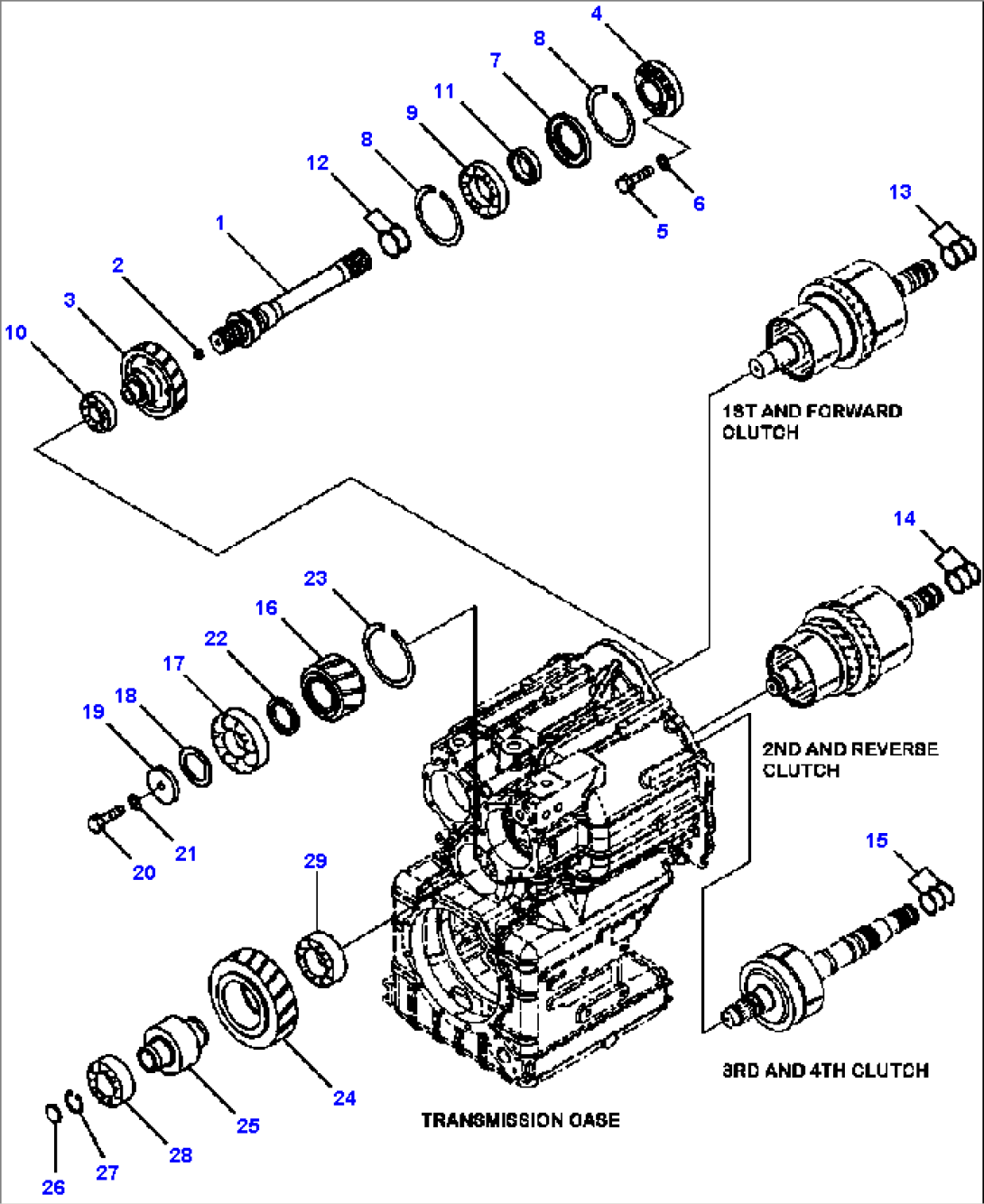

| TRANSMISSION (SEE FIG. F4350-52A0) | A45001-- | |||
| 1 | 714-07-42252 | SHAFT, INPUT | A45001-- | |
| 2 | 17A-22-47360 | PLUG | A45001-- | |
| 3 | 714-07-42511 | GEAR | A45001-- | |
| 4 | 714-07-47713 | COVER | A45001-- | |
| 5 | 01010-81285 | BOLT | A45001-- | |
| 6 | 01643-31232 | WASHER | A45001-- | |
| 7 | 714-07-46122 | SPACER | A45001-- | |
| 8 | 04071-00140 | RING | A45001-- | |
| 9 | 714-07-49640 | BEARING | A45001-- | |
| 10 | 714-07-49410 | BEARING | A45001-- | |
| 11 | 714-07-49420 | BEARING | A45001-- | |
| 12 | 714-12-39210 | RING, SEAL | A45001-- | |
| 13 | 714-12-39230 | RING, SEAL | A45001-- | |
| 14 | 714-12-39230 | RING, SEAL | A45001-- | |
| 15 | 419-15-12122 | RING, SEAL | A45001-- | |
| 16 | 714-07-43211 | GEAR | A45001-- | |
| 17 | 714-07-49610 | BEARING | A45001-- | |
| 18 | 714-07-49670 | PLATE | A45001-- | |
| 19 | 234-15-23280 | HOLDER | A45001-- | |
| 20 | 01011-61615 | BOLT | A45001-- | |
| 21 | 01643-31645 | WASHER | A45001-- | |
| 22 | 714-07-46320 | SPACER | A45001-- | |
| 23 | 04071-00150 | RING | A45001-- | |
| 24 | 714-07-43223 | GEAR | A45001-- | |
| 25 | 714-07-43323 | SHAFT | A45001-- | |
| 26 | 714-07-46310 | PLATE | A45001-- | |
| 27 | 04065-04518 | RING | A45001-- | |
| 28 | 714-12-39360 | BEARING | A45001-- | |
| 29 | 714-07-49661 | BEARING | A45001-- |
