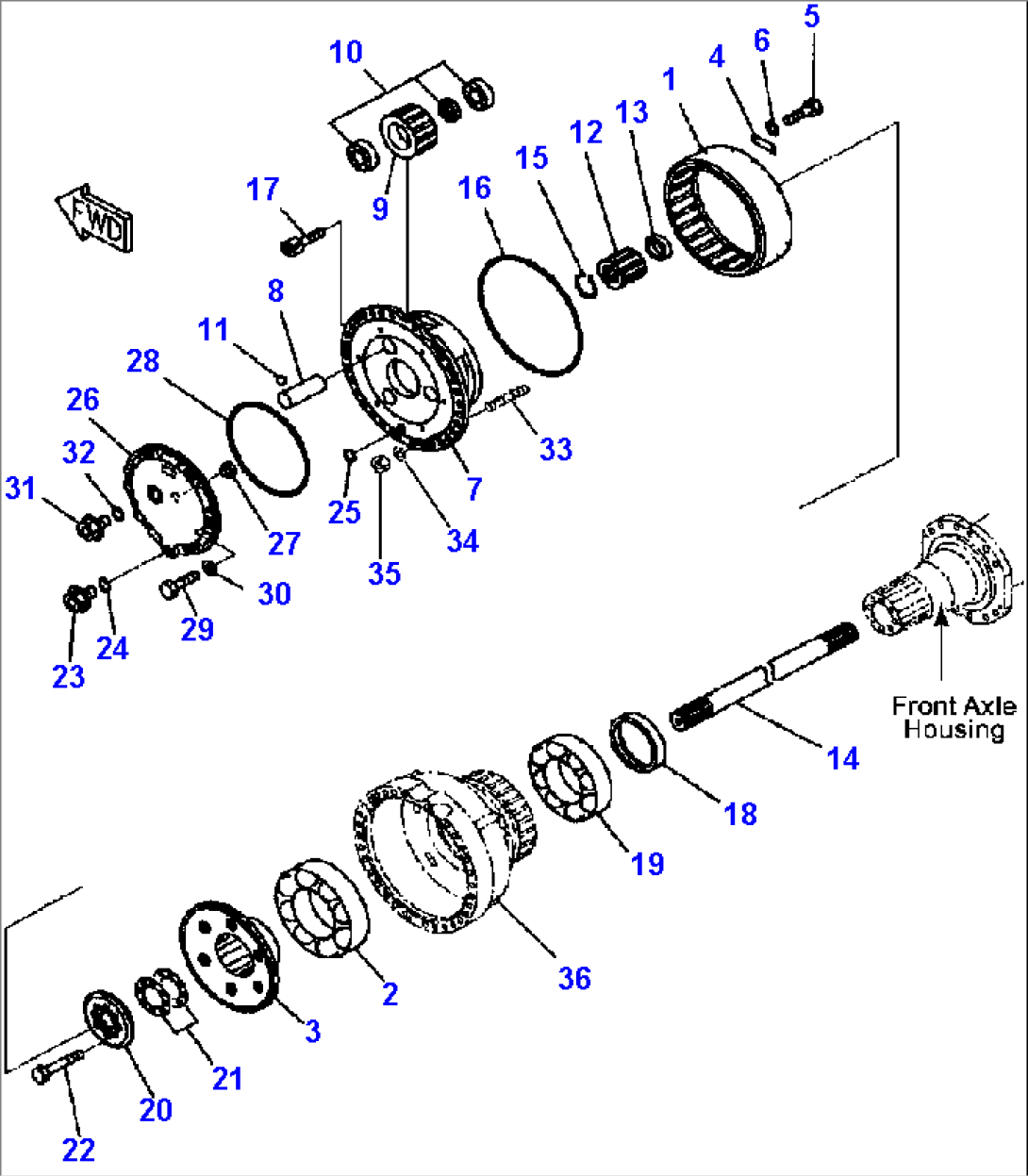

| Item | Part No. | Part Name | Qty | Serial No. |
| | AXLE ASSEMBLY, FRONT (SEE FIG. F4400-01A0 ) | | A70001 -- |
| | WHEEL BRAKE ASSEMBLY, FRONT (SEE FIG. F4400-01A0 ) | | A70001 -- |
| 1 | | | | |
| 1 | 425-22-12540 | GEAR | | A70001 -- |
| 2 | 421-22-12870 | BEARING | | A70001 -- |
| 3 | 425-22-12310 | HUB | | A70001 -- |
| 4 | 566-22-12560 | PLATE, LOCK | | A70001 -- |
| 5 | 01010-60820 | BOLT | | A70001 -- |
| 6 | 01643-30823 | WASHER | | A70001 -- |
| 425-22-12101 | CARRIER ASSEMBLY | | A70001 -- |
| 7 | 425-22-12612 | CARRIER | | A70001 -- |
| 8 | 425-22-12510 | SHAFT | | A70001 -- |
| 9 | 425-22-12580 | GEAR | | A70001 -- |
| 10 | 425-22-12570 | BEARING | | A70001 -- |
| 11 | 04260-01587 | BALL | | A70001 -- |
| 12 | 425-22-12421 | GEAR | | A70001 -- |
| 13 | 425-22-12430 | SPACER | | A70001 -- |
| 14 | 425-22-12440 | SHAFT, L.H. FRONT | | A70001 -- |
| 425-22-12410 | SHAFT, R.H. FRONT | | A70001 -- |
| 15 | 04064-06525 | RING, SNAP | | A70001 -- |
| 16 | 07000-05440 | O-RING | | A70001 -- |
| 17 | 01252-31025 | BOLT | | A70001 -- |
| 18 | 421-22-12130 | RETAINER | | A70001 -- |
| 19 | 421-22-12840 | BEARING | | A70001 -- |
| 20 | 425-22-12210 | RETAINER | | A70001 -- |
| 21 | (NSS) | SHIM, 0.2 MM | | A70001 -- |
| (NSS) | SHIM, 0.3 MM | | A70001 -- |
| (NSS) | SHIM, 1.0 MM | | A70001 -- |
| 22 | 01010-61660 | BOLT | | A70001 -- |
| 23 | 07044-12412 | PLUG | | A70001 -- |
| 24 | 07002-12434 | O-RING | | A70001 -- |
| 25 | 07000-13028 | O-RING | | A70001 -- |
| 26 | 425-22-12624 | COVER | | A70001 -- |
| 27 | 286-22-12630 | BUTTON | | A70001 -- |
| 28 | 07000-15340 | O-RING | | A70001 -- |
| 29 | 01010-81230 | BOLT | | A70001 -- |
| 30 | 01643-31232 | WASHER | | A70001 -- |
| 31 | 07041-13612 | PLUG | | A70001 -- |
| 32 | 07002-13634 | O-RING | | A70001 -- |
| 33 | | STUD, WHEEL (SEE FIG. F4400-01A0 ) | | A70001 -- |
| 34 | | WASHER (SEE FIG. F4400-06A0 ) | | A70001 -- |
| 35 | | NUT, LUG (SEE FIG. F4400-06A0 ) | | A70001 -- |
| 36 | | HUB (SEE FIG. F4400-01A0 ) | | A70001 -- |
