| Item | Part No. | Part Name | Qty | Serial No. |
| FRONT AXLE ASSEMBLY (SEE FIG. F4400-01A0 ) | A92001-- | |||

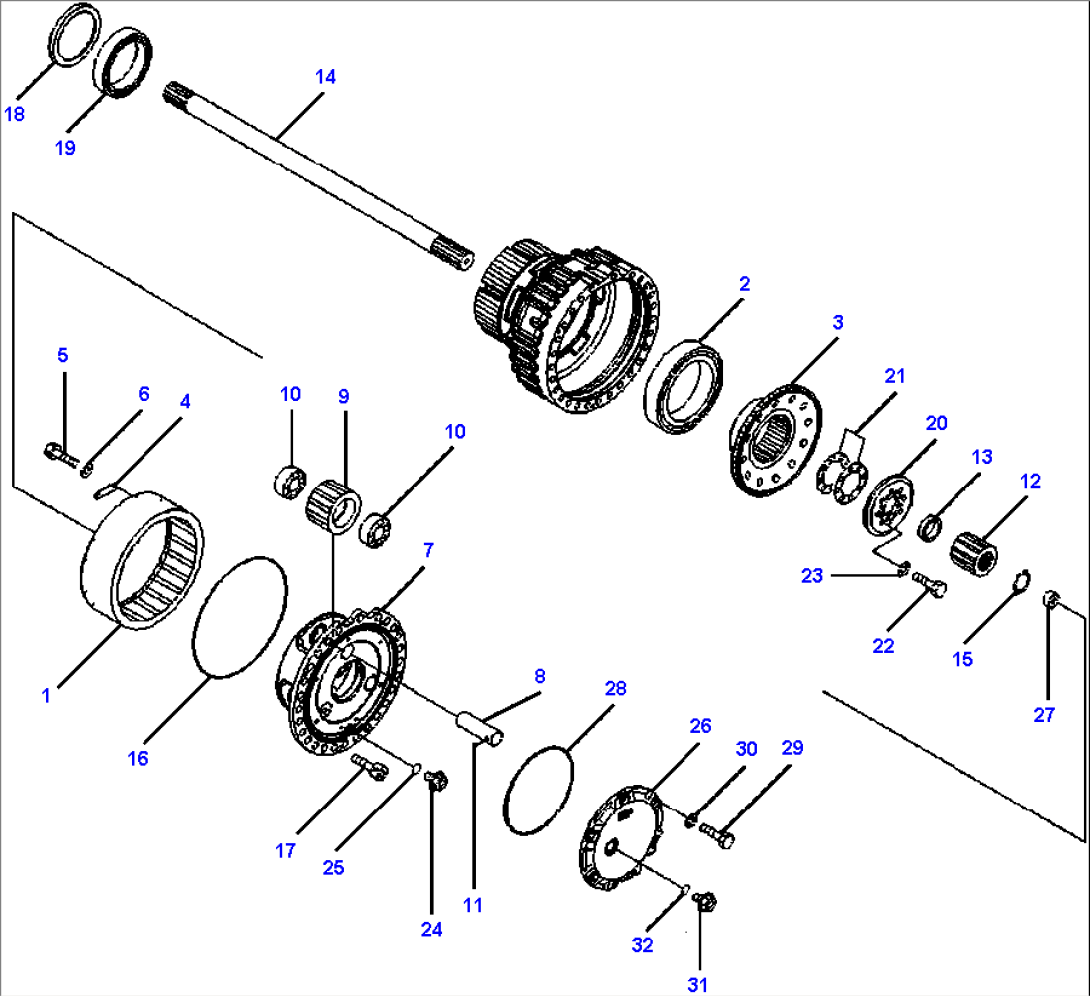

| FINAL DRIVE ASSEMBLY, L.H. (SEE FIG. F4400-01A0 ) | A92001-- | |||
| 1 | 425-22-32541 | GEAR | A92001-- | |
| 2 | 425-22-32870 | BEARING | A92001-- | |
| 3 | 425-22-32311 | HUB | A92001-- | |
| 4 | 425-22-32560 | PLATE | A92001-- | |
| 5 | 01010-E0820 | BOLT | A92001-- | |
| 6 | 01643-30823 | WASHER | A92001-- | |
| 7 | 425-22-32610 | CARRIER | A92001-- | |
| 8 | 425-22-32510 | SHAFT | A92001-- | |
| 9 | 425-22-32530 | GEAR | A92001-- | |
| 10 | 425-22-32570 | BEARING | A92001-- | |
| 11 | 04260-01587 | BALL | A92001-- | |
| 12 | 425-22-32422 | GEAR | A92001-- | |
| 13 | 425-22-32430 | SPACER | A92001-- | |
| 14 | 425-22-32412 | SHAFT | A92001-- | |
| 15 | 04064-06525 | RING | A92001-- | |
| 16 | 07000-15425 | O-RING | A92001-- | |
| 17 | 01252-61025 | BOLT | A92001-- | |
| 18 | 425-22-32130 | RETAINER | A92001-- | |
| 19 | 421-22-12870 | BEARING | A92001-- | |
| 20 | 425-22-32210 | RETAINER | A92001-- | |
| 21 | 425-22-32230 | SHIM, 1.00 MM | A92001-- | |
| N/I | 425-22-32240 | SHIM, 0.30 MM | A92001-- | |
| N/I | 425-22-32250 | SHIM, 0.20 MM | A92001-- | |
| N/I | 425-22-32260 | SHIM, 0.05 MM | A92001-- | |
| 22 | 01010-61665 | BOLT | A92001-- | |
| 23 | 01643-31645 | WASHER | A92001-- | |
| 24 | 07044-12412 | PLUG | A92001-- | |
| 25 | 07002-12434 | O-RING | A92001-- | |
| 26 | 425-22-32620 | COVER | A92001-- | |
| 27 | 425-22-32630 | PIN | A92001-- | |
| 28 | 07000-15315 | O-RING | A92001-- | |
| 29 | 01010-E1230 | BOLT | A92001-- | |
| 30 | 01643-31232 | WASHER | A92001-- | |
| 31 | 07040-13618 | PLUG | A92001-- | |
| 32 | 07002-13634 | O-RING | A92001-- |
