| Item | Part No. | Part Name | Qty | Serial No. |

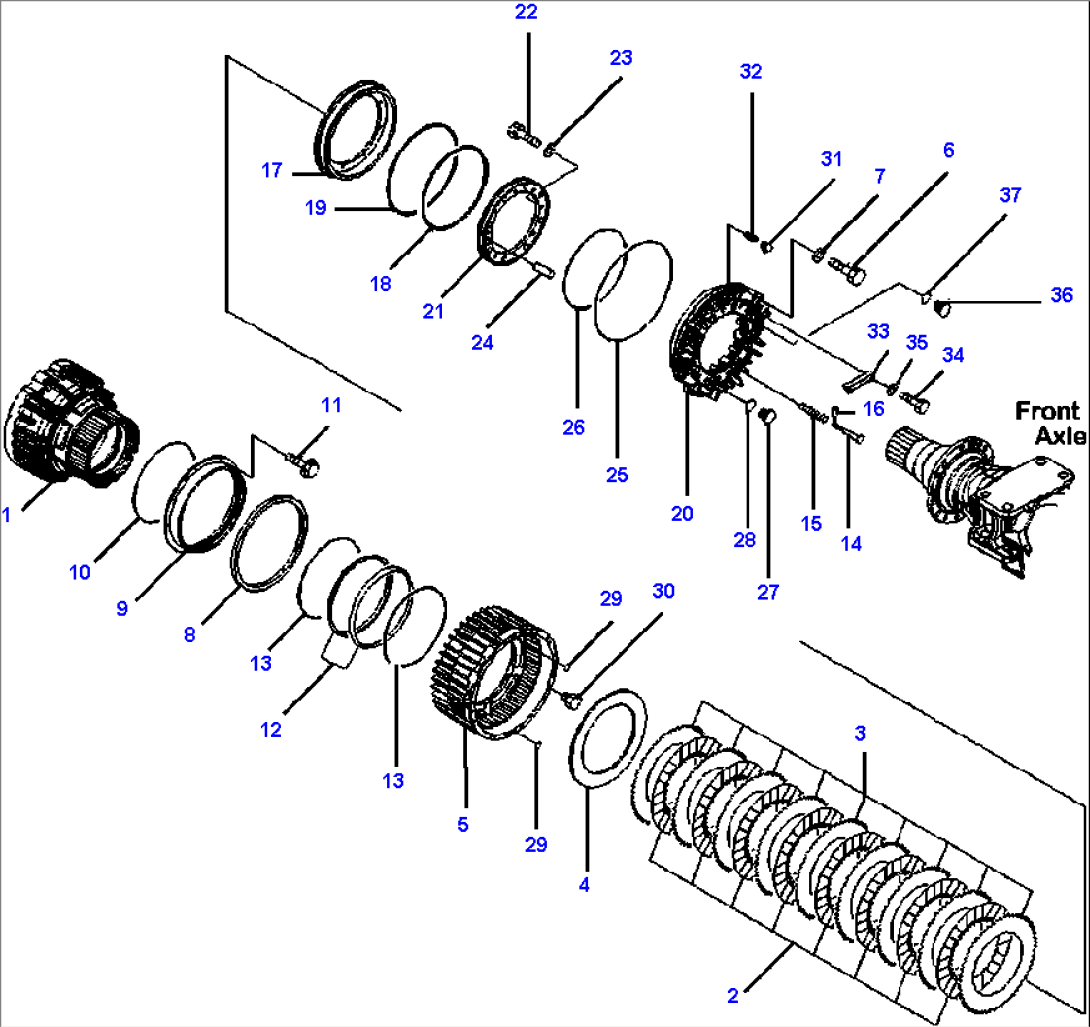

| FRONT AXLE ASSEMBLY (SEE FIG. F4400-01A0 ) | A92001-- | |||
| 425-22-35010 | FINAL DRIVE ASSEMBLY, R.H. | A92001-- | ||
| 1 | 425-22-32753 | HUB | A92001-- | |
| 2 | 425-33-11510 | DISC | A92001-- | |
| 3 | 566-33-41230 | PLATE | A92001-- | |
| 4 | 426-33-21280 | PLATE | A92001-- | |
| 5 | 425-33-31250 | GEAR | A92001-- | |
| 6 | 01010-61445 | BOLT | A92001-- | |
| 7 | 01643-31445 | WASHER | A92001-- | |
| 8 | 566-09-31161 | SEAL | A92001-- | |
| 9 | 426-33-31350 | RETAINER | A92001-- | |
| 10 | 426-33-31330 | O-RING | A92001-- | |
| 11 | 01435-01025 | BOLT | A92001-- | |
| 425-33-00111 | FLOATING SEAL ASSEMBLY | A92001-- | ||
| 12 | (NSS) | SEAL RING ASSEMBLY | A92001-- | |
| (NSS) | RING | A92001-- | ||
| 13 | 425-33-00120 | O-RING ASSEMBLY | A92001-- | |
| (NSS) | O-RING | A92001-- | ||
| 14 | 426-33-21660 | GUIDE | A92001-- | |
| 15 | 426-33-21670 | SPRING | A92001-- | |
| 16 | 706-66-40271 | PIN | A92001-- | |
| 17 | 426-33-21170 | PISTON | A92001-- | |
| 18 | 421-33-11440 | SEAL | A92001-- | |
| 19 | 421-33-11430 | SEAL | A92001-- | |
| 20 | 425-33-31150 | CYLINDER | A92001-- | |
| 21 | 426-33-21181 | SLEEVE | A92001-- | |
| 22 | 01010-E1235 | BOLT | A92001-- | |
| 23 | 01643-31232 | WASHER | A92001-- | |
| 24 | 04020-00820 | PIN | A92001-- | |
| 25 | 07000-A5485 | O-RING | A92001-- | |
| 26 | 426-33-31330 | O-RING | A92001-- | |
| 27 | 07040-12012 | PLUG | A92001-- | |
| 28 | 07002-22034 | O-RING | A92001-- | |
| 29 | 07000-A2018 | O-RING | A92001-- | |
| 30 | 287-35-11470 | PLUG | A92001-- | |
| 31 | 566-32-11620 | CAP | A92001-- | |
| 32 | 566-32-11430 | BLEEDER | A92001-- | |
| 33 | 425-22-33920 | COVER | A92001-- | |
| 34 | 01010-E1050 | BOLT | A92001-- | |
| 35 | 01643-31032 | WASHER | A92001-- | |
| 36 | 07040-12012 | PLUG | A92001-- | |
| 37 | 07002-12034 | O-RING | A92001-- |
