| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-46-31310 | BOLT | A92001-- | |
| 2 | 425-46-31320 | BOLT | A92001-- | |
| 3 | 01580-03931 | NUT | A92001-- | |
| 4 | 01643-33990 | WASHER | A92001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 6 s/n a92001 a93000
- Power train and final drive
- F4400 08a0 front axle mounting
Поиск по каталогу

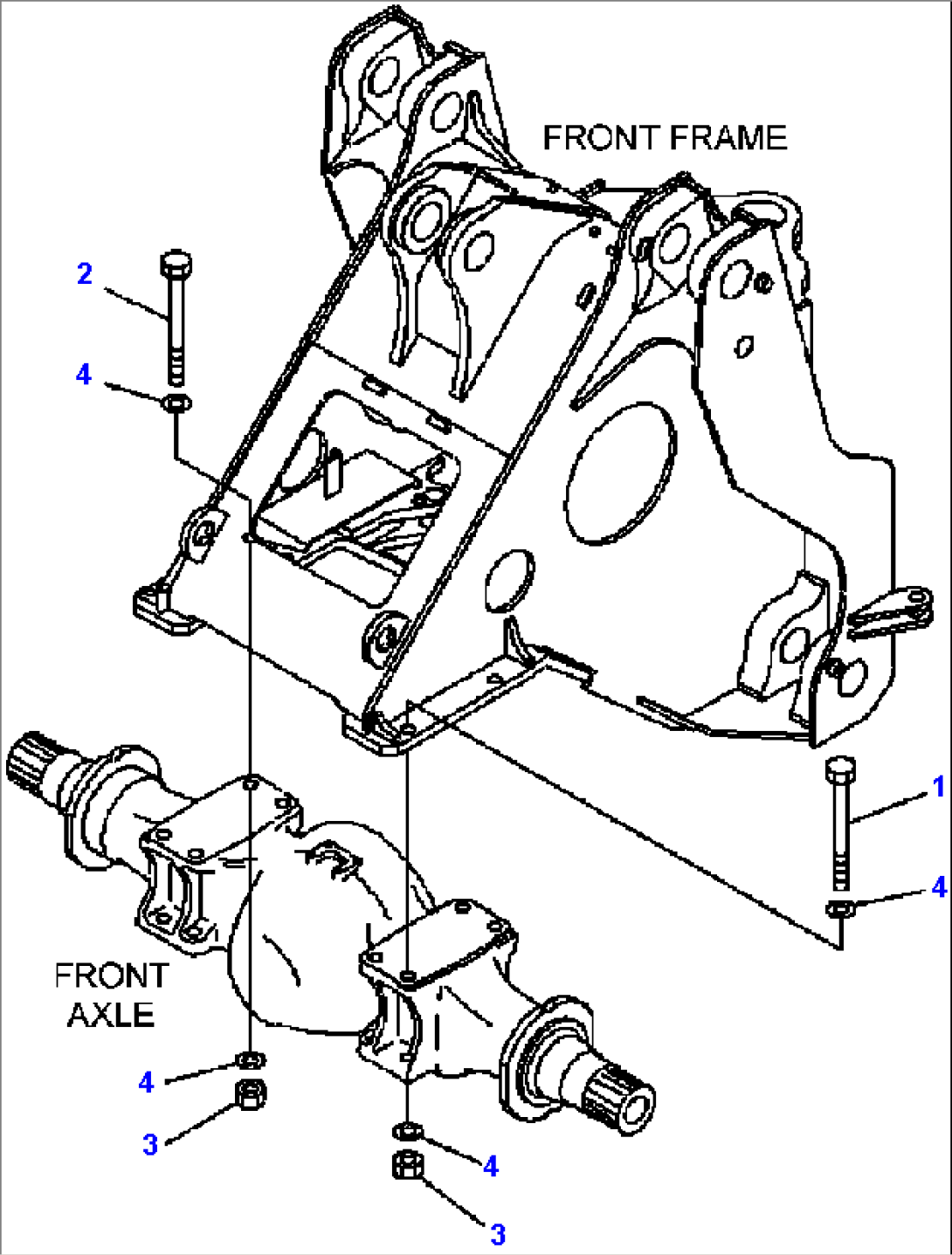

F4400-08A0 FRONT AXLE MOUNTING
