| Item | Part No. | Part Name | Qty | Serial No. |

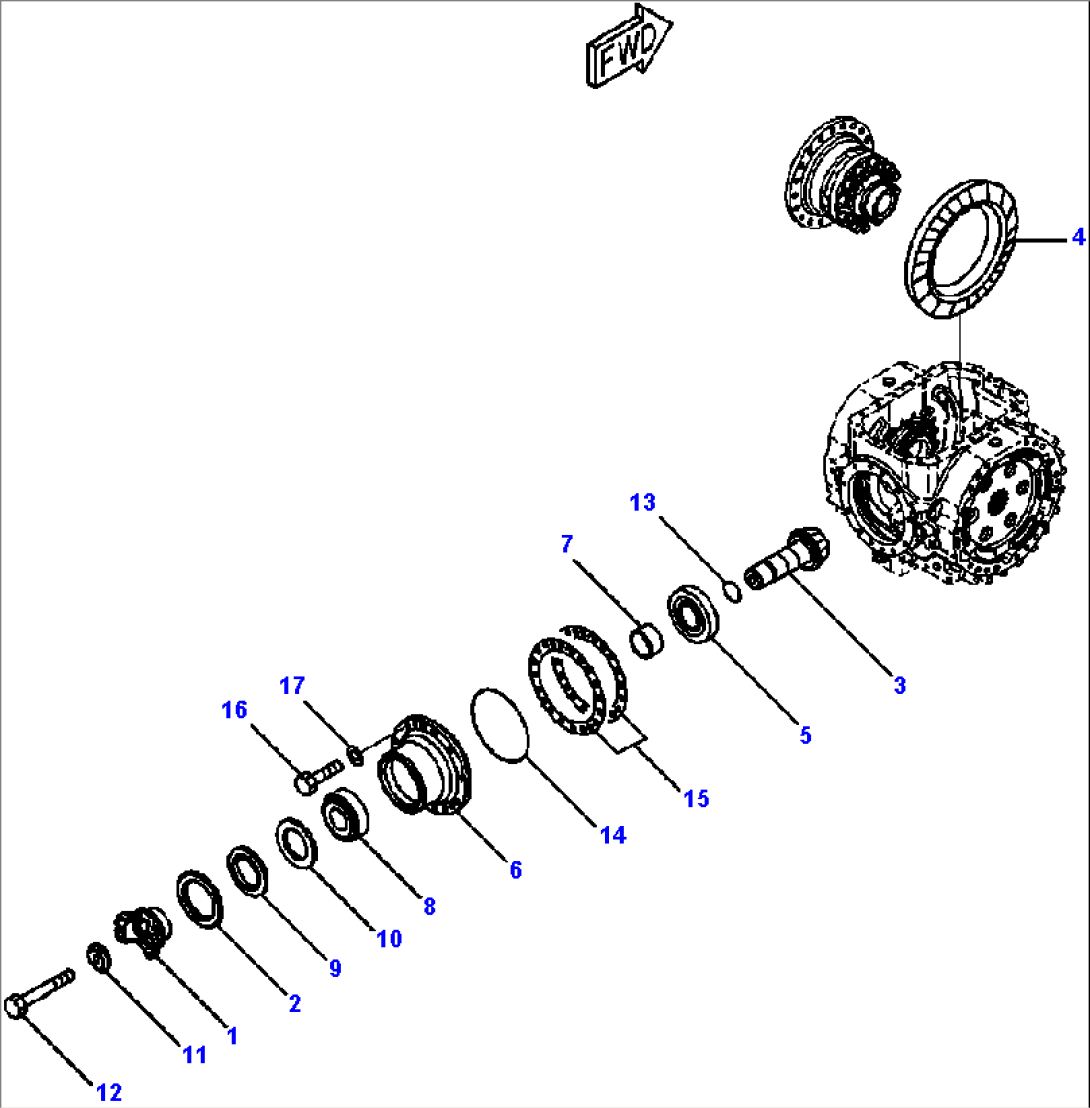

| AXLE ASSEMBLY (SEE FIG. F4400-51B0) | A45001-- | |||
| 421-22-31042 | DIFFERENTIAL, STANDARD | A45001-- | ||
| OR | ||||
| 421-22-31083 | DIFFERENTIAL, LIMITED SLIP | A45001-- | ||
| 1 | 421-22-31231 | COUPLING | A45001-- | |
| 2 | 421-22-31310 | PROTECTOR | A45001-- | |
| N/I | 23C-22-51301 | PINION AND GEAR ASSEMBLY | A45001-- | |
| 3 | 23C-22-51311 | PINION | A45001-- | |
| 4 | 23C-22-51320 | GEAR | A45001-- | |
| 5 | 421-22-31810 | BEARING | A45001-- | |
| 6 | 421-22-31120 | CAGE | A45001-- | |
| 7 | 421-22-31860 | SPACER | A45001-- | |
| 8 | 421-22-31820 | BEARING | A45001-- | |
| 9 | 421-22-31761 | SEAL, DUST | A45001-- | |
| 10 | 421-22-31771 | SEAL | A45001-- | |
| 11 | 425-22-11240 | HOLDER | A45001-- | |
| 12 | 01011-62420 | BOLT | A45001-- | |
| 13 | 07000-15060 | O-RING | A45001-- | |
| 14 | 07000-15240 | O-RING | A45001-- | |
| 15 | 421-22-31261 | SHIM, 0.05 MM | A45001-- | |
| 421-22-31271 | SHIM, 0.2 MM | A45001-- | ||
| 421-22-31281 | SHIM, 0.3 MM | A45001-- | ||
| 421-22-31291 | SHIM, 0.8 MM | A45001-- | ||
| 16 | 01010-61650 | BOLT | A45001-- | |
| 17 | 01643-31645 | WASHER | A45001-- |
