| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY (SEE FIG. F4400-51B0) | A45001-- | |||
| DIFFERENTIAL, LIMITED SLIP (SEE FIG. F4400-53B0) | A45001-- | |||

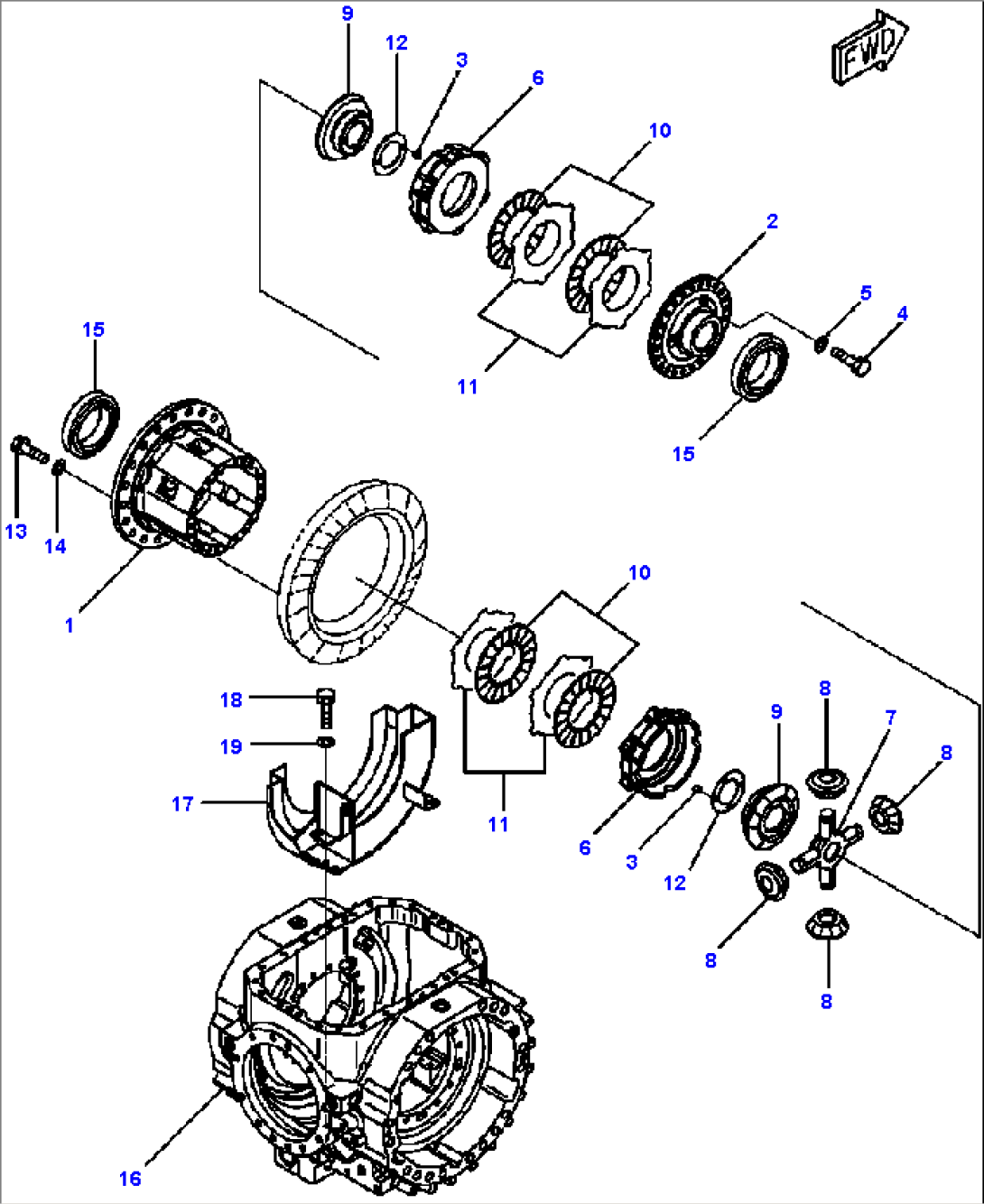

| 421-22-37700 | DIFFERENTIAL ASSEMBLY | A45001-- | ||
| 1 | 421-22-37660 | CASE | A45001-- | |
| 2 | 421-22-37720 | COVER | A45001-- | |
| 3 | 175-21-12180 | PIN | A45001-- | |
| 4 | 01010-61240 | BOLT | A45001-- | |
| 5 | 01643-31232 | WASHER | A45001-- | |
| 6 | 421-22-37760 | RING, PRESSURE | A45001-- | |
| 7 | 421-22-37220 | SHAFT | A45001-- | |
| 8 | 421-22-37310 | GEAR | A45001-- | |
| 9 | 421-22-37320 | GEAR | A45001-- | |
| 10 | 421-22-37410 | DISC | A45001-- | |
| 11 | 421-22-37450 | PLATE, 3.1 MM | A45001-- | |
| OR | ||||
| 421-22-37460 | PLATE, 3.2 MM | A45001-- | ||
| 12 | 421-22-37371 | WASHER, 4.0 MM | A45001-- | |
| OR | ||||
| 421-22-37381 | WASHER, 4.1 MM | A45001-- | ||
| 13 | 01010-61645 | BOLT | A45001-- | |
| 14 | 01643-31645 | WASHER | A45001-- | |
| 15 | 421-22-11860 | BEARING | A45001-- | |
| 16 | 421-22-33811 | HOUSING | A45001-- | |
| 17 | 421-22-31832 | COVER, GEAR | A45001-- | |
| 18 | 01010-61225 | BOLT | A45001-- | |
| 19 | 01643-31232 | WASHER | A45001-- |
