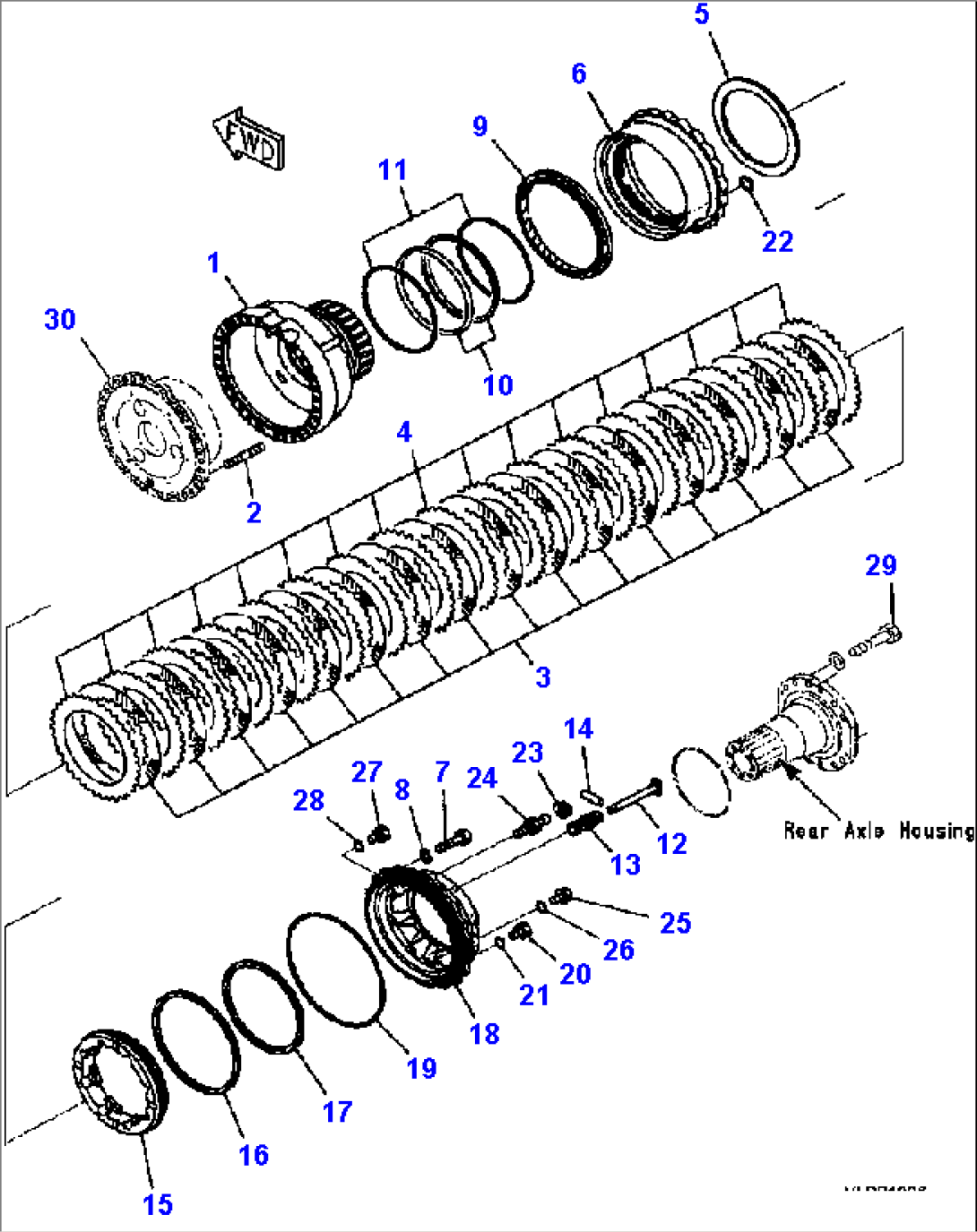

| Item | Part No. | Part Name | Qty | Serial No. |
| 425-23-20050 | AXLE ASSEMBLY, REAR | A70001 -- | ||
| 425-22-24050 | FINAL DRIVE AND WHEEL BRAKE ASSEMBLY, REAR | A70001 -- | ||
| 3 | ||||
| 1 | 425-22-22711 | HUB | A70001 -- | |
| 2 | 01144-62070 | STUD, WHEEL AND TIRE MOUNTING | A70001 -- | |
| 3 | 235-25-11360 | DISC, WHEEL BRAKE | A70001 -- | |
| 4 | 232-25-51430 | PLATE, BRAKE | A70001 -- | |
| 5 | 421-33-11280 | PLATE | A70001 -- | |
| 6 | 425-33-21230 | GEAR | A70001 -- | |
| 7 | 01010-61440 | BOLT | A70001 -- | |
| 8 | 01643-31445 | WASHER | A70001 -- | |
| 9 | 421-33-21811 | SEAL | A70001 -- | |
| 421-33-00050 | SEAL ASSEMBLY, FLOATING | A70001 -- | ||
| 10 | 170-27-00113 | RING ASSEMBLY, SEAL | A70001 -- | |
| 11 | 421-33-00060 | O-RING ASSEMBLY | A70001 -- | |
| 12 | 425-33-21610 | GUIDE | A70001 -- | |
| 13 | 425-33-21621 | SPRING | A70001 -- | |
| 14 | 04020-00514 | PIN, DOWEL | A70001 -- | |
| 15 | 425-33-21160 | PISTON | A70001 -- | |
| 16 | 421-33-11440 | SEAL | A70001 -- | |
| 17 | 421-33-11480 | SEAL | A70001 -- | |
| 18 | 425-33-21141 | CYLINDER | A70001 -- | |
| 425-33-21151 | CYLINDER | A70001 -- | ||
| 19 | 07000-A5445 | O-RING | A70001 -- | |
| 20 | 07040-11409 | PLUG | A70001 -- | |
| 21 | 07002-21423 | O-RING | A70001 -- | |
| 22 | 07000-A2016 | O-RING | A70001 -- | |
| 23 | 566-32-11620 | CAP | A70001 -- | |
| 24 | 566-32-11430 | BLEEDER | A70001 -- | |
| 25 | 07040-12012 | PLUG (FOR SHIPPING) | A70001 -- | |
| 26 | 07002-22034 | O-RING (FOR SHIPPING) | A70001 -- | |
| 27 | 07040-12012 | PLUG | A70001 -- | |
| 28 | 07002-12034 | O-RING | A70001 -- | |
| 29 | BOLT (SEE FIG. F4500-03A1 ) | A70001 -- | ||
| 30 | CARRIER (SEE FIG. F4500-02A1 ) | A70001 -- |
