| Item | Part No. | Part Name | Qty | Serial No. |

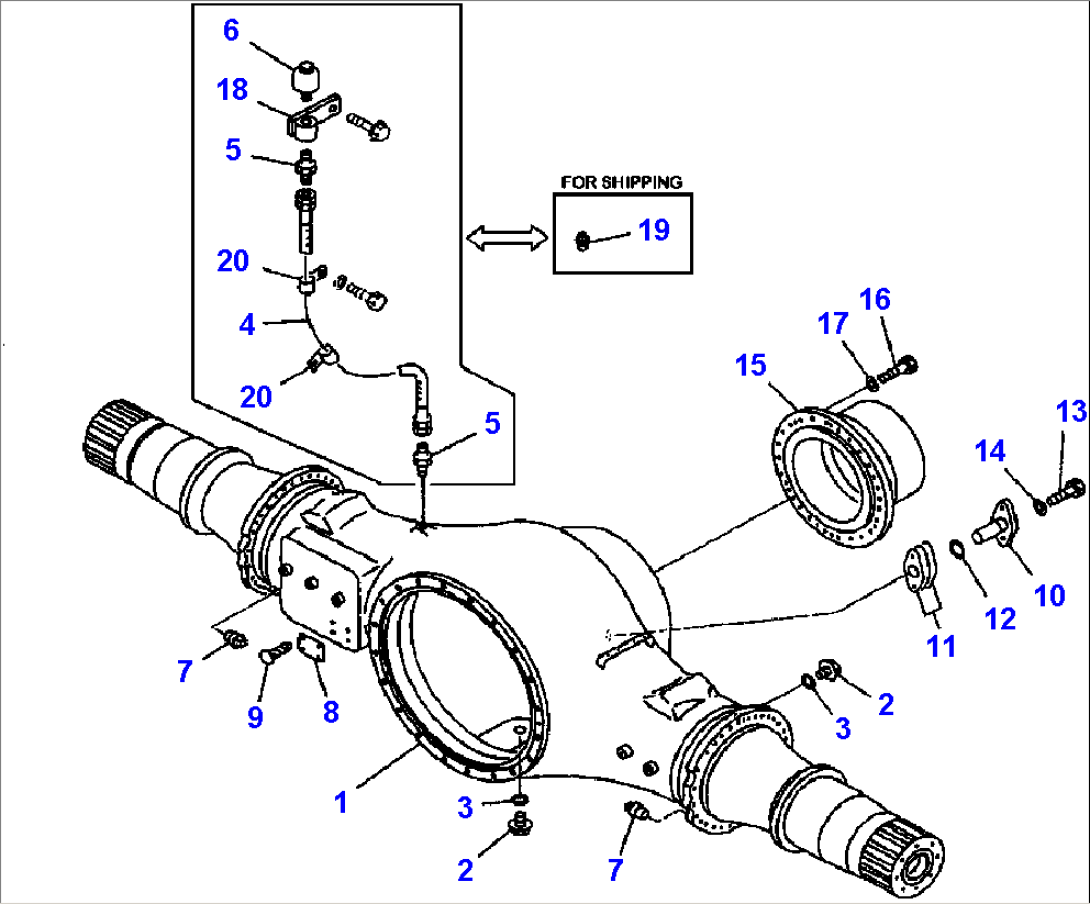

| REAR AXLE (SEE FIG. F4500-01A0 ) | A50001-- | |||
| 1 | 427-23-13101 | HOUSING | A50001-- | |
| 2 | 07044-13620 | PLUG | A50001-- | |
| 3 | 07002-13634 | O-RING | A50001-- | |
| 4 | 07102-20315 | HOSE | A50001-- | |
| 5 | 566-35-14340 | NIPPLE | A50001-- | |
| 6 | 07030-00252 | BREATHER | A50001-- | |
| 7 | 07042-20312 | PLUG | A50001-- | |
| 8 | 20Y-00-A2112 | PLATE | A50001-- | |
| 9 | 04418-13060 | SCREW | A50001-- | |
| 10 | 427-22-13510 | SHAFT | A50001-- | |
| 11 | 427-22-13520 | SHIM, 1.0 MM | A50001-- | |
| 427-22-13530 | SHIM, 0.3 MM | A50001-- | ||
| 427-22-13540 | SHIM, 0.2 MM | A50001-- | ||
| 12 | 07000-13035 | O-RING | A50001-- | |
| 13 | 01010-31645 | BOLT | A50001-- | |
| 14 | 01643-31645 | WASHER | A50001-- | |
| 15 | 427-23-13311 | SUPPORT | A50001-- | |
| 16 | 01010-62465 | BOLT | A50001-- | |
| 17 | 01643-32460 | WASHER | A50001-- | |
| 18 | 427-23-13410 | JOINT | A50001-- | |
| 19 | 07042-70211 | PLUG (FOR SHIPPING) | A50001-- | |
| 20 | 08036-01814 | CLIP | A50001-- |
