| Item | Part No. | Part Name | Qty | Serial No. |

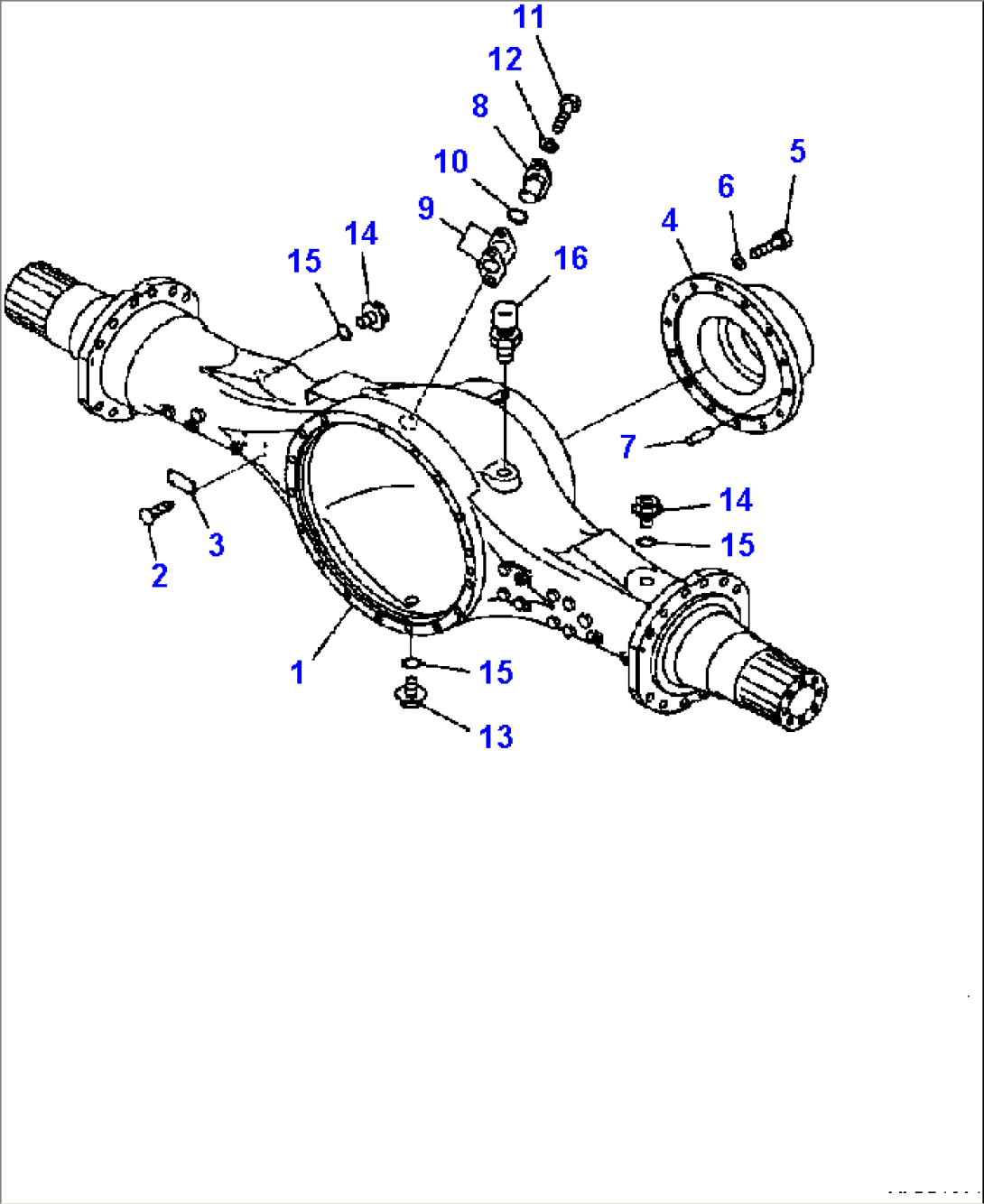

| AXLE ASSEMBLY, REAR (SEE FIG. F4500-01A0 ) | A70001 -- | |||
| 2 | ||||
| 1 | 425-23-23101 | HOUSING, REAR AXLE | A70001 -- | |
| 2 | 04418-13060 | SCREW | A70001 -- | |
| 3 | 815-02-10110 | PLATE, NAME | A70001 -- | |
| 4 | 425-23-13310 | SUPPORT | A70001 -- | |
| 5 | 01010-61650 | BOLT | A70001 -- | |
| 6 | 01643-31645 | WASHER | A70001 -- | |
| 7 | 04020-01842 | PIN, DOWEL | A70001 -- | |
| 8 | 425-22-13510 | SHAFT | A70001 -- | |
| 9 | 425-22-13540 | SHIM, 0.2 MM | A70001 -- | |
| 425-22-13530 | SHIM, 0.3 MM | A70001 -- | ||
| 425-22-13520 | SHIM, 1.0 MM | A70001 -- | ||
| 10 | 07000-13035 | O-RING | A70001 -- | |
| 11 | 01010-61230 | BOLT | A70001 -- | |
| 12 | 01643-31232 | WASHER | A70001 -- | |
| 13 | 07044-13620 | PLUG, DRAIN | A70001 -- | |
| 14 | 566-16-11351 | PLUG, FILL | A70001 -- | |
| 15 | 07002-13634 | O-RING | A70001 -- | |
| 16 | 07030-01030 | BREATHER | A70001 -- |
