| Item | Part No. | Part Name | Qty | Serial No. |

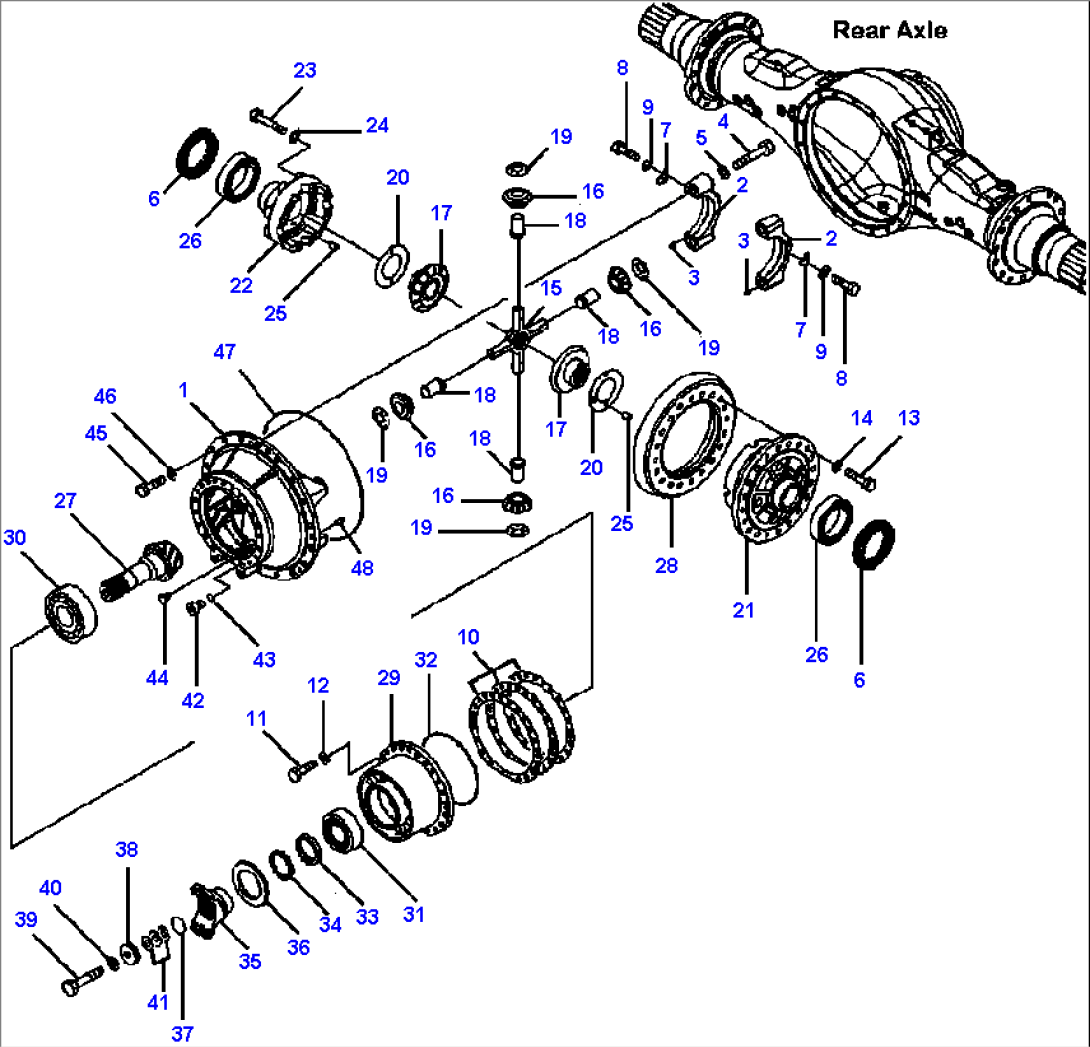

| AXLE ASSEMBLY (SEE FIG. F4500-01A0 ) | A92001-- | |||
| 425-23-31010 | DIFFERENTIAL ASSEMBLY | A92001-- | ||
| 425-22-31102 | CARRIER | A92001-- | ||
| 1 | 425-22-31111 | CARRIER | A92001-- | |
| 2 | (NSS) | CAP | A92001-- | |
| 3 | 175-21-12180 | PIN | A92001-- | |
| 4 | 01011-63040 | BOLT | A92001-- | |
| 5 | 01643-33080 | WASHER | A92001-- | |
| 6 | 425-22-31140 | NUT | A92001-- | |
| 7 | 425-22-31150 | PLATE | A92001-- | |
| 8 | 01010-E0820 | BOLT | A92001-- | |
| 9 | 01643-30823 | WASHER | A92001-- | |
| 10 | 425-22-31370 | SHIM, 1.00 MM | A92001-- | |
| N/I | 425-22-31380 | SHIM, 0.30 MM | A92001-- | |
| N/I | 425-22-31390 | SHIM, 0.20 MM | A92001-- | |
| N/I | 425-22-31360 | SHIM, 0.05 MM | A92001-- | |
| 11 | 01010-61655 | BOLT | A92001-- | |
| 12 | 01643-31645 | WASHER | A92001-- | |
| 13 | 01010-62055 | BOLT | A92001-- | |
| 14 | 01643-32060 | WASHER | A92001-- | |
| 15 | 425-22-31410 | SHAFT | A92001-- | |
| 16 | 425-22-31450 | PINION | A92001-- | |
| 17 | 425-22-31431 | GEAR | A92001-- | |
| 18 | 425-22-31680 | BUSHING | A92001-- | |
| 19 | 425-22-31691 | WASHER | A92001-- | |
| 20 | 425-22-31530 | WASHER | A92001-- | |
| 425-22-31501 | CASE ASSEMBLY | A92001-- | ||
| 21 | (NSS) | CASE | A92001-- | |
| 22 | (NSS) | CASE | A92001-- | |
| 23 | 01011-62040 | BOLT | A92001-- | |
| 24 | 01643-32060 | WASHER | A92001-- | |
| 25 | 175-21-12180 | PIN | A92001-- | |
| 26 | 425-22-31850 | BEARING | A92001-- | |
| 425-22-31201 | GEAR ASSEMBLY | A92001-- | ||
| 27 | (NSS) | PINION | A92001-- | |
| 28 | 425-22-31201 | GEAR | A92001-- | |
| 29 | 425-23-31140 | CAGE | A92001-- | |
| 30 | 426-22-31820 | BEARING | A92001-- | |
| 31 | 421-22-31820 | BEARING | A92001-- | |
| 32 | 07000-15310 | O-RING | A92001-- | |
| 33 | 421-22-31771 | SEAL | A92001-- | |
| 34 | 421-22-31761 | SEAL | A92001-- | |
| 35 | 425-22-31230 | COUPLING | A92001-- | |
| 36 | 421-22-31310 | PROTECTOR | A92001-- | |
| 37 | 07000-15065 | O-RING | A92001-- | |
| 38 | 425-22-31240 | HOLDER | A92001-- | |
| 39 | 01051-62445 | BOLT | A92001-- | |
| 40 | 01643-32460 | WASHER | A92001-- | |
| 41 | 425-22-31570 | SHIM, 0.05 MM | A92001-- | |
| N/I | 425-22-31580 | SHIM, 0.20 MM | A92001-- | |
| N/I | 425-22-31590 | SHIM, 0.50 MM | A92001-- | |
| 42 | 07040-13316 | PLUG | A92001-- | |
| 43 | 07002-13334 | O-RING | A92001-- | |
| 44 | 287-35-11470 | PLUG | A92001-- | |
| 45 | 01010-62050 | BOLT | A92001-- | |
| 46 | 01643-32060 | WASHER | A92001-- | |
| 47 | 14X-27-11170 | O-RING | A92001-- | |
| 48 | 04020-01638 | PIN | A92001-- |
