| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-22-12790 | NUT, WHEEL LUG | A70001 -- | |
| 2 | 01643-32060 | WASHER | A70001 -- | |
| 3 | CARRIER ASSEMBLY (SEE FIG. F4500-02A0 ) | A70001 -- | ||
| 4 | STUD (SEE FIG. F4500-01A0 ) | A70001 -- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3l s/n a70001 up
- Power train and final drive
- F4500 06a0 rear axle wheel rim mounting
Поиск по каталогу

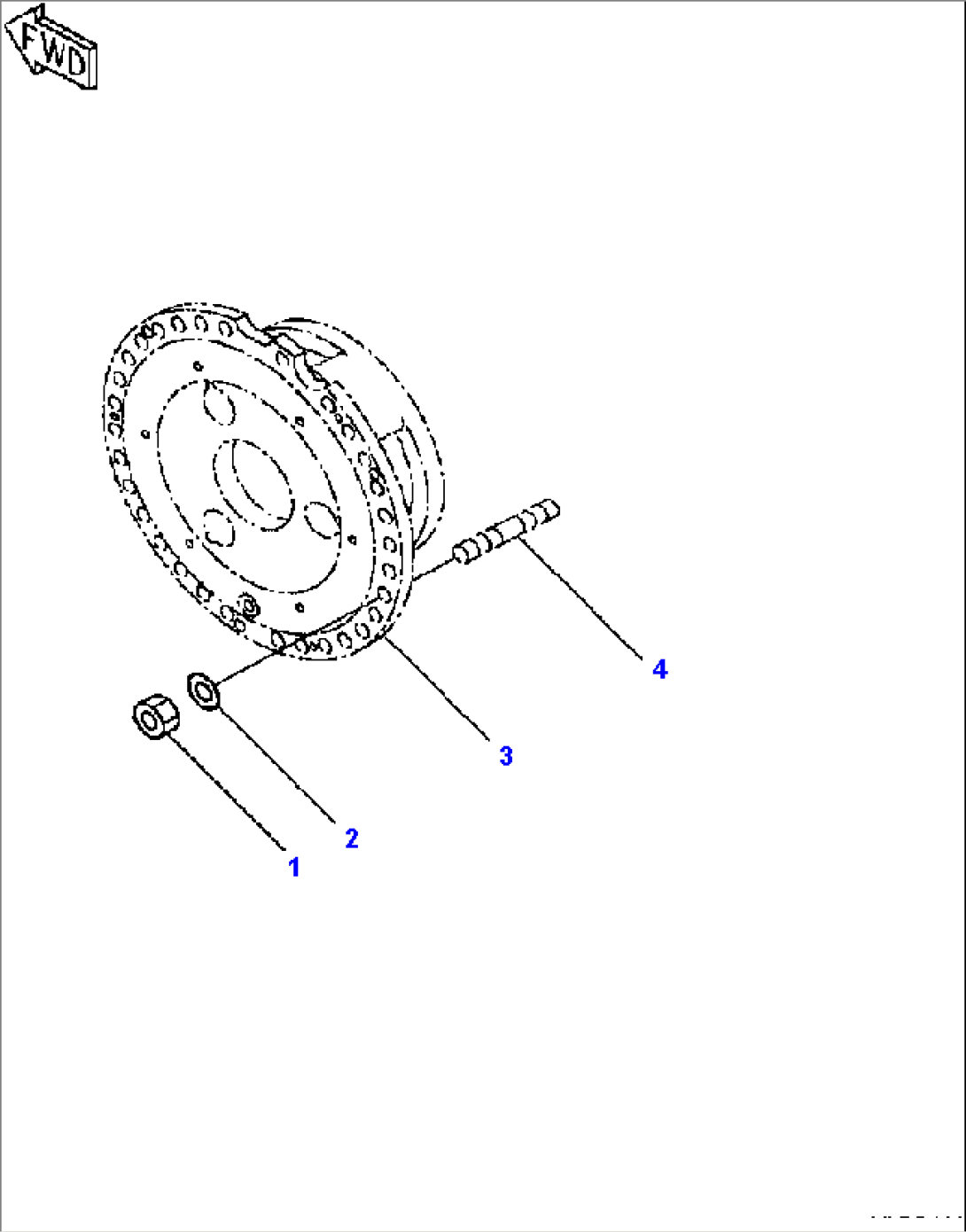

F4500-06A0 REAR AXLE WHEEL RIM MOUNTING
