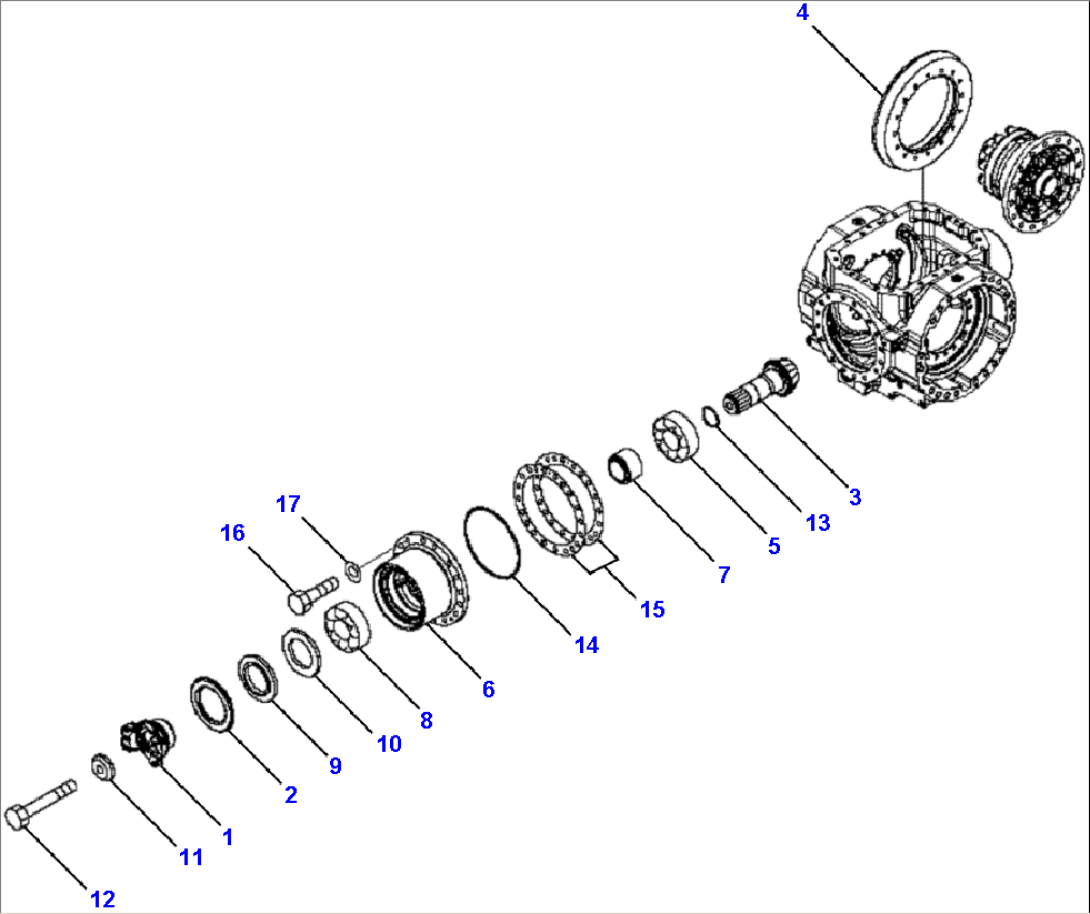

| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY (SEE FIG. F4500-51B0 ) | A45001-- | |||
| 421-22-31092 | DIFFERENTIAL, STANDARD | A45001-- | ||
| OR | ||||
| 421-22-32040 | DIFFERENTIAL, LIMITED SLIP | A45001-- | ||
| 1 | 421-22-31231 | COUPLING | A45001-- | |
| 2 | 421-22-31310 | PROTECTOR | A45001-- | |
| N/I | 424-22-31200 | PINION AND GEAR ASSEMBLY | A45001-- | |
| 3 | 424-22-31210 | PINION | A45001-- | |
| 4 | 424-22-31220 | GEAR | A45001-- | |
| 5 | 423-22-21820 | BEARING | A45001-- | |
| 6 | 421-23-31170 | CAGE | A45001-- | |
| 7 | 421-23-31860 | SPACER | A45001-- | |
| 8 | 421-23-31820 | BEARING | A45001-- | |
| 9 | 421-22-31761 | SEAL, DUST | A45001-- | |
| 10 | 421-22-31771 | SEAL | A45001-- | |
| 11 | 425-22-11240 | HOLDER | A45001-- | |
| 12 | 01011-62420 | BOLT | A45001-- | |
| 13 | 07000-15060 | O-RING | A45001-- | |
| 14 | 07000-15240 | O-RING | A45001-- | |
| 15 | 421-22-31261 | SHIM, 0.05 MM | A45001-- | |
| 421-22-31271 | SHIM, 0.2 MM | A45001-- | ||
| 421-22-31281 | SHIM, 0.3 MM | A45001-- | ||
| 421-22-31291 | SHIM, 0.8 MM | A45001-- | ||
| 16 | 01010-61650 | BOLT | A45001-- | |
| 17 | 01643-31645 | WASHER | A45001-- |
