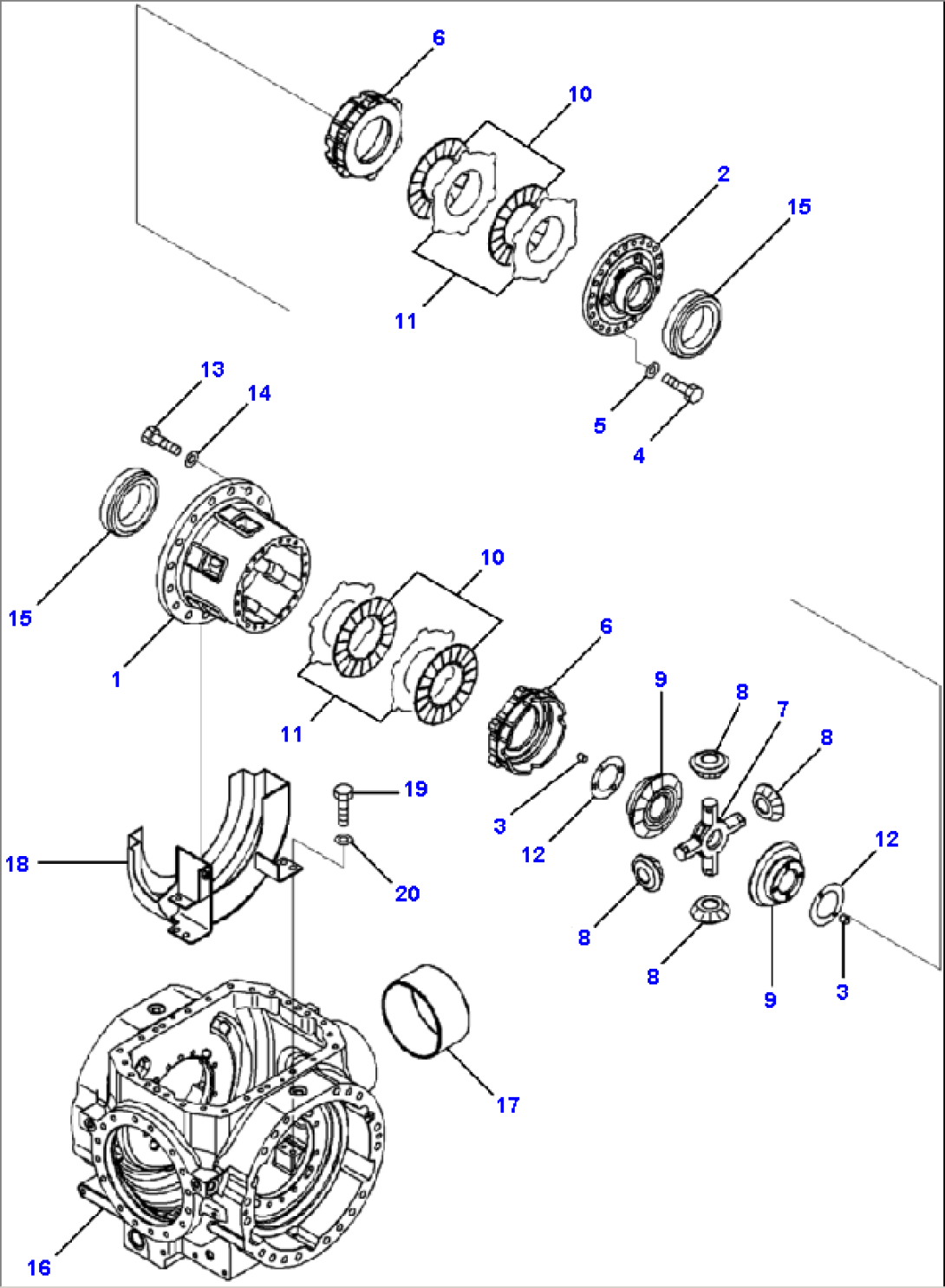

| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY (SEE FIG. F4500-51B0 ) | A45001-- | |||
| DIFFERENTIAL, LIMITED SLIP (SEE FIG. F4500-53B0 ) | A45001-- | |||
| 423-22-37602 | DIFFERENTIAL ASSEMBLY | A45001-- | ||
| 1 | 424-22-37110 | CASE | A45001-- | |
| 2 | 424-22-37120 | COVER | A45001-- | |
| 3 | 175-21-12180 | PIN | A45001-- | |
| 4 | 01010-61240 | BOLT | A45001-- | |
| 5 | 01643-31232 | WASHER | A45001-- | |
| 6 | 424-22-37210 | RING, PRESSURE | A45001-- | |
| 7 | 424-22-37220 | SHAFT | A45001-- | |
| 8 | 424-22-37310 | PINION | A45001-- | |
| 9 | 424-22-27321 | GEAR | A45001-- | |
| 10 | 424-22-37411 | DISC | A45001-- | |
| 11 | 424-22-37451 | PLATE, 3.0MM | A45001-- | |
| OR | ||||
| 424-22-37461 | PLATE, 3.1MM | A45001-- | ||
| 12 | 56B-22-17210 | WASHER, 4.0MM | A45001-- | |
| OR | ||||
| 56B-22-17230 | WASHER, 4.1MM | A45001-- | ||
| 13 | 01010-61645 | BOLT | A45001-- | |
| 14 | 01643-31645 | WASHER | A45001-- | |
| 15 | 421-22-11860 | BEARING | A45001-- | |
| 16 | 421-23-33670 | HOUSING | A45001-- | |
| 17 | 421-23-33170 | SLEEVE | A45001-- | |
| 18 | 421-23-31832 | COVER, GEAR | A45001-- | |
| 19 | 01010-61225 | BOLT | A45001-- | |
| 20 | 01643-31232 | WASHER | A45001-- |
