| Item | Part No. | Part Name | Qty | Serial No. |

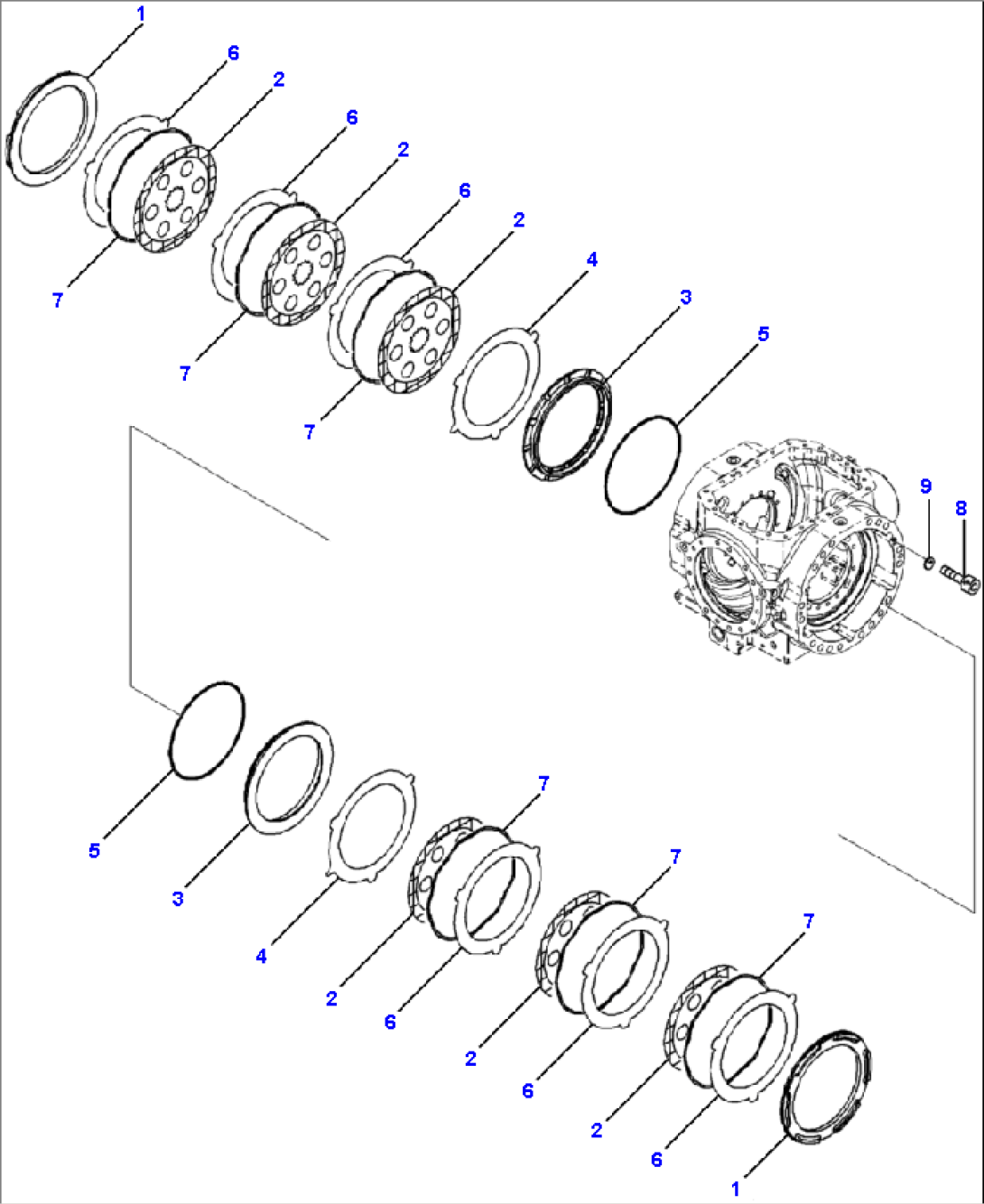

| AXLE ASSEMBLY (SEE FIG. F4500-51B0 ) | A45001-- | |||
| 1 | 421-33-32381 | PLATE | A45001-- | |
| 2 | 421-33-32241 | DISC | A45001-- | |
| 3 | 421-33-32331 | PISTON | A45001-- | |
| 4 | 421-33-32340 | PLATE | A45001-- | |
| 5 | 423-33-21410 | SEAL | A45001-- | |
| 6 | 421-33-32350 | PLATE | A45001-- | |
| 7 | 421-33-31640 | SPRING | A45001-- | |
| 8 | 01252-60816 | BOLT | A45001-- | |
| 9 | 421-33-31451 | WASHER | A45001-- |
