| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PUMP, TORQUE CONVERTER AND TRANSMISSION (SEE FIG. F4700-01A1 ) | A70001 -- | ||
| 2 | ||||
| 2 | 01010-81645 | BOLT | A70001 -- | |
| 3 | 01643-31645 | WASHER | A70001 -- | |
| 4 | 07000-A2130 | O-RING | A70001 -- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3l s/n a70001 up
- Power train and final drive
- F4700 01a0 torque converter and transmission pump mounting
Поиск по каталогу

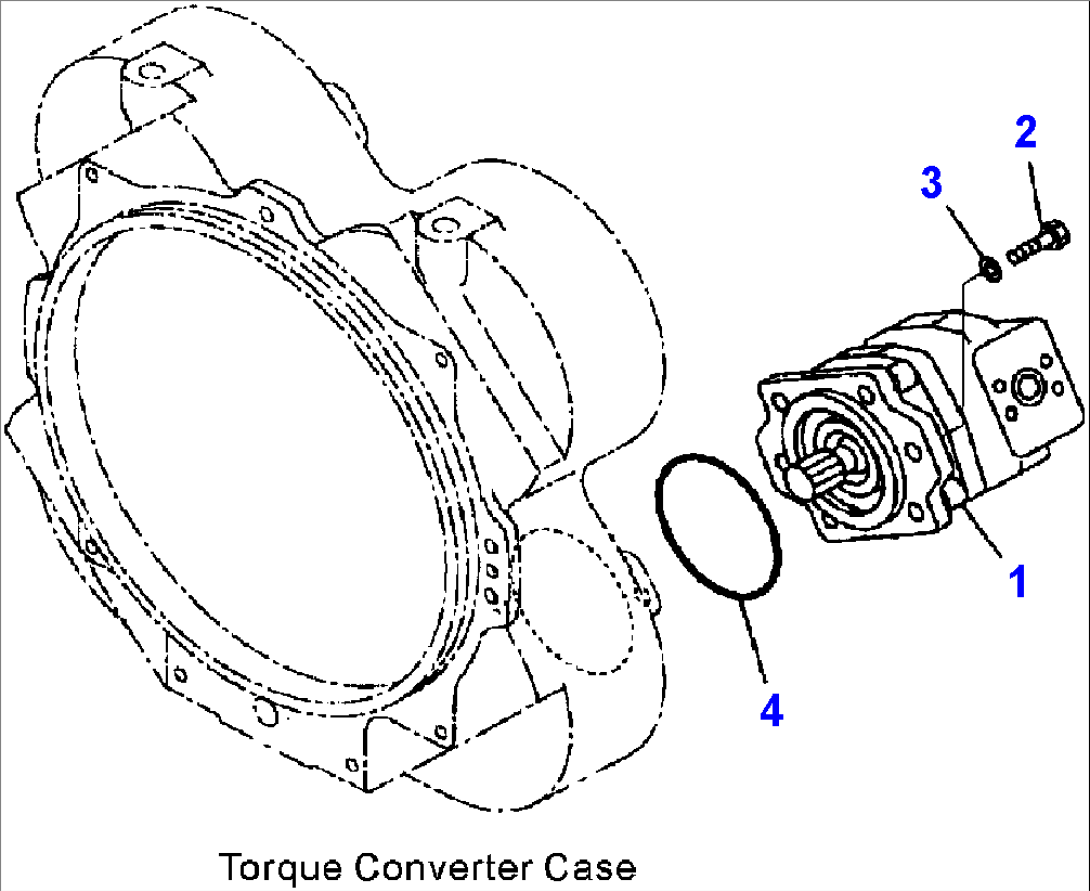

F4700-01A0 TORQUE CONVERTER AND TRANSMISSION PUMP MOUNTING
