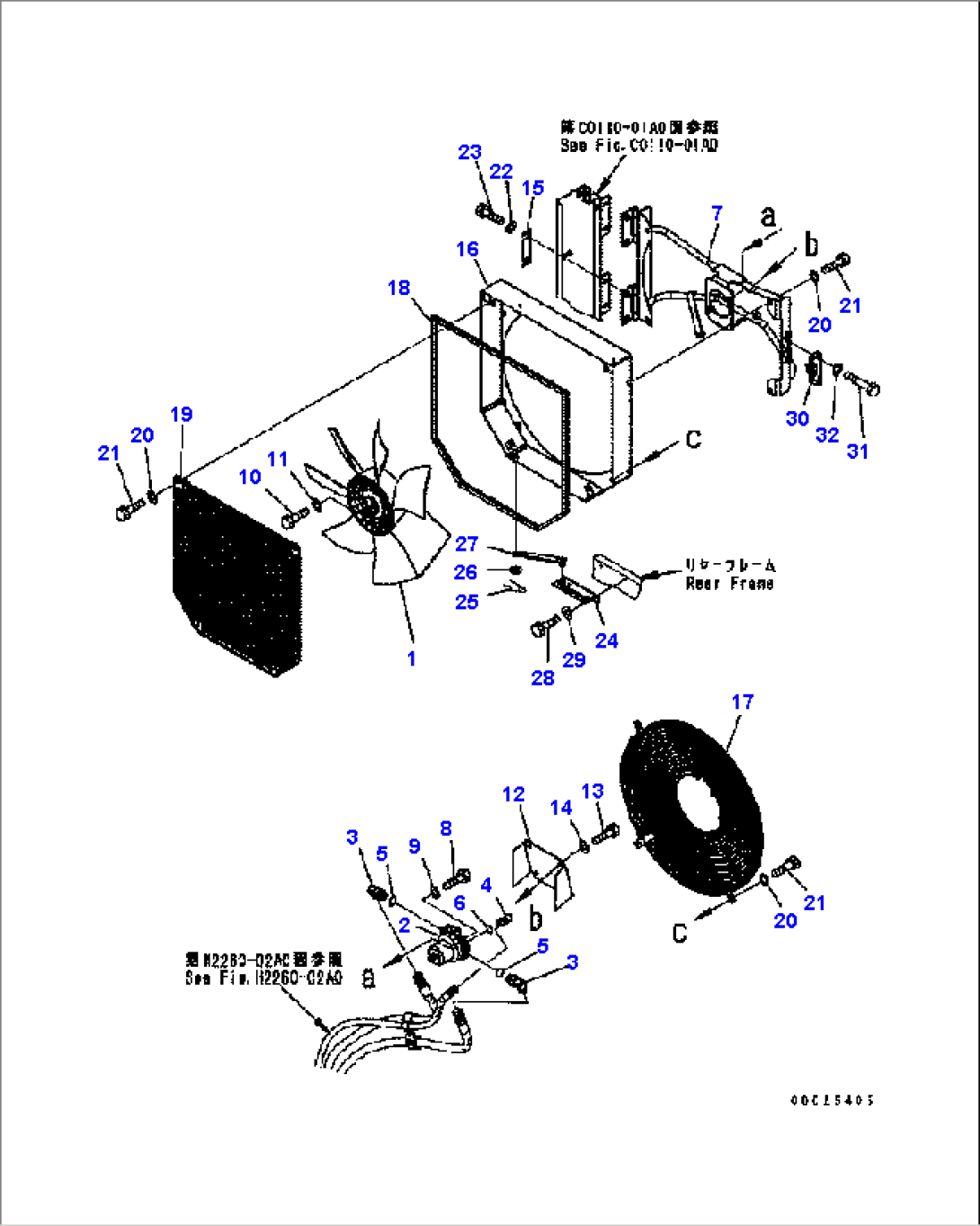

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-03-33211 | FAN ASS'Y | B10001- | |
| 2 | 418-03-33241 | FAN MOTOR | B10001- | |
| 3 | 418-62-35111 | ELBOW | B10001- | |
| 4 | 21W-62-43980 | ELBOW | B10001- | |
| 5 | 07000-12018 | O-RING | B10001- | |
| 6 | 07000-12011 | O-RING | B10001- | |
| 7 | 418-03-33255 | BRACKET | B10001- | |
| 8 | 01010-81035 | BOLT | B10001- | |
| 9 | 01643-31032 | WASHER | B10001- | |
| 10 | 01010-80825 | BOLT | B10001- | |
| 11 | 01643-30823 | WASHER | B10001- | |
| 12 | 418-03-33264 | COVER | B10001- | |
| 13 | 01010-81020 | BOLT | B10001- | |
| 14 | 01643-31032 | WASHER | B10001- | |
| 15 | 418-03-33190 | SHIM | B10001- | |
| 16 | 418-03-33118 | SHROUD | B10001- | |
| 17 | 418-03-B1240 | GUARD {FAN} | B11958- | |
| \0\418-03-33124 | GUARD {FAN} | B10456-B11957 | ||
| \0\418-03-33123 | GUARD {FAN} | B10001-B10455 | ||
| 18 | 418-03-33131 | SEAL | B10001- | |
| 19 | 418-03-33143 | GUARD {FAN} | B10456- | |
| \0\0418-03-33142 | GUARD {FAN} | B10001-B10455 | ||
| 20 | 01643-31032 | WASHER | B10001- | |
| 21 | 01010-81020 | BOLT | B10001- | |
| 22 | 01643-31232 | WASHER | B10001- | |
| 23 | 01010-81230 | BOLT | B10001- | |
| 24 | 418-03-33161 | PLATE | B10001- | |
| 25 | 04052-11038 | PIN {SNAP} | B10001- | |
| 26 | 01640-21016 | WASHER | B10001- | |
| 27 | 418-03-33173 | STOPPER | B10001- | |
| 28 | 01010-81025 | BOLT | B10001- | |
| 29 | 01643-31032 | WASHER | B10001- | |
| 30 | 418-03-33280 | LOCK | B10001- | |
| 31 | 01010-80635 | BOLT | B10001- | |
| 32 | 01643-30623 | WASHER | B10001- |
