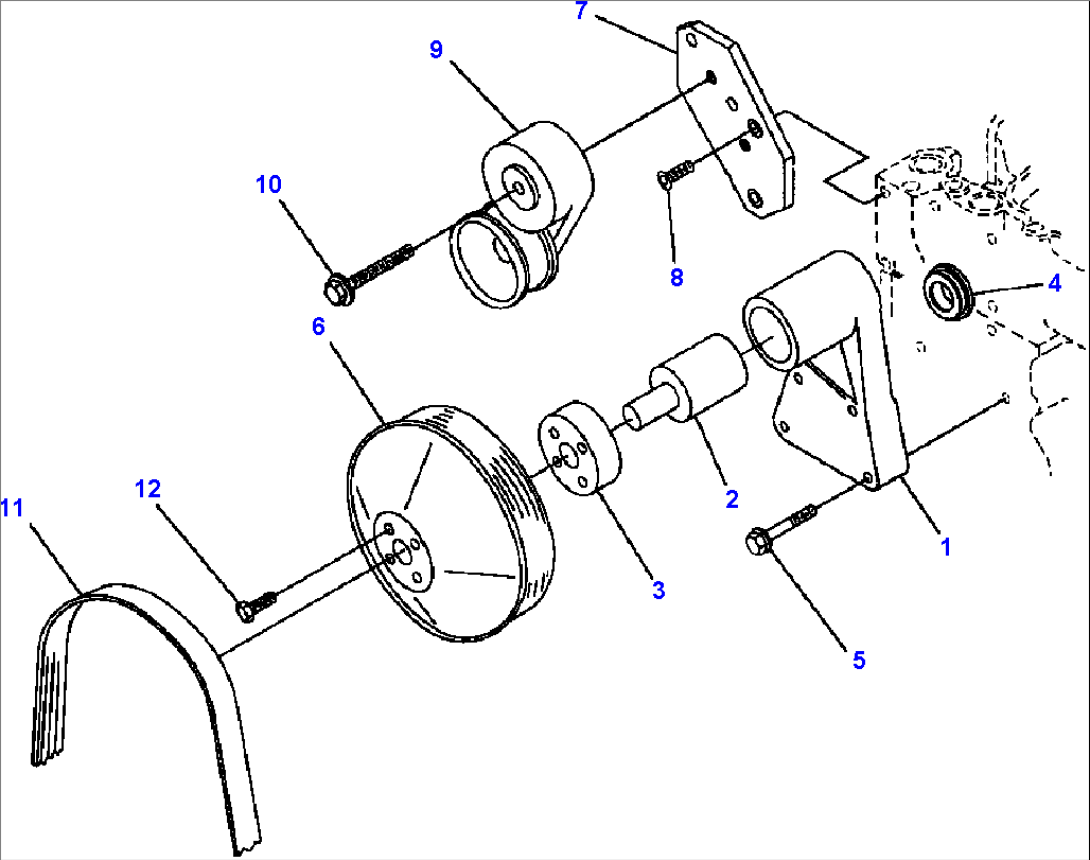

| Item | Part No. | Part Name | Qty | Serial No. |
| 1240 411 H91 | SUPPORT, FAN | |||
| 1 | (NSS) | BRACKET, FAN | ||
| 2 | (NSS) | SHAFT, FAN DRIVE | ||
| 3 | (NSS) | HUB, FAN | ||
| 4 | 1240 410 H1 | RETAINER, SHAFT | ||
| 5 | 1240 405 H1 | BOLT | ||
| 6 | 1240 408 H1 | PULLEY, FAN | ||
| 7 | 1241 746 H1 | BRACKET, BELT TENSIONER | ||
| 8 | 1240 204 H2 | BOLT | ||
| 9 | 1295 443 H1 | TENSIONER, BELT | ||
| 10 | 1240 258 H1 | BOLT | ||
| 11 | 1257 759 H1 | BELT, DRIVE | ||
| 12 | 1240 412 H1 | BOLT |
