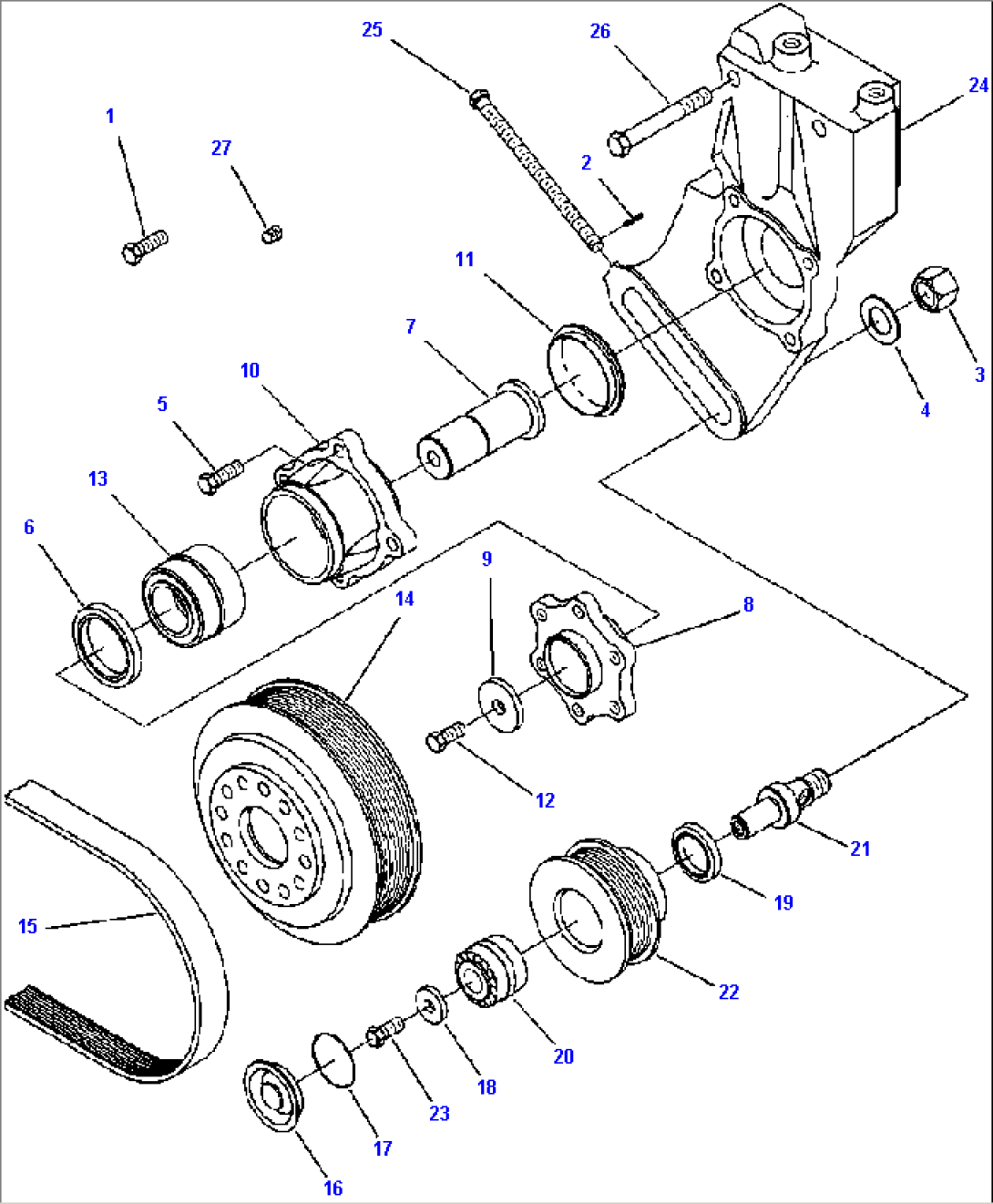

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1238 015 H1 | BOLT - 3/8-16 X 3/4 IN | ||
| 2 | 1246 272 H1 | PIN, ROLL | ||
| 3 | 1246 284 H1 | NUT - M20 X 1.50 | ||
| 4 | 1246 285 H1 | WASHER, PLAIN - 7/8 IN | ||
| 5 | 1246 160 H1 | BOLT - M10 X 1.50 X 20 | ||
| 1268 116 H91 | HUB, FAN | |||
| 6 | 1246 267 H1 | SEAL, OIL | ||
| 7 | 1240 450 H1 | SHAFT, FAN HUB | ||
| 8 | 1240 451 H1 | FLANGE | ||
| 9 | 1246 268 H1 | WASHER, PLAIN - M10 | ||
| 10 | 1240 469 H1 | HUB, FAN | ||
| 11 | 1268 118 H1 | COVER, FAN HUB | ||
| 12 | 1294 005 H1 | BOLT - M10 X 1.50 X 25 | ||
| 13 | 1304 778 H1 | BEARING, ROLLER | ||
| 14 | 1246 273 H1 | PULLEY, FAN - 0.8 TO 1.0 RATIO | ||
| 15 | 1295 361 H1 | BELT, V RIBBED - 0.8 TO 1.0 RATIO | ||
| 1268 110 H91 | PULLEY, IDLER - TLA | |||
| 16 | 1268 113 H1 | COVER, IDLER PULLEY | ||
| 17 | 1268 114 H1 | O-RING | ||
| (NSS) | PULLEY, IDLER | |||
| 18 | 1246 276 H1 | WASHER, PLAIN - M10 | ||
| 19 | 1246 280 H1 | SEAL, OIL | ||
| 20 | 1246 277 H1 | BEARING, ROLLER | ||
| 21 | 1268 115 H1 | SHAFT, IDLER | ||
| 22 | 1268 111 H1 | PULLEY, IDLER | ||
| 23 | 1294 005 H1 | BOLT - M10 X 1.50 X 25 | ||
| 24 | 1294 103 H1 | SUPPORT, FAN HUB | ||
| 25 | 1294 104 H1 | BOLT - M10 X 1.50 X 200 | ||
| 26 | 1294 105 H2 | BOLT - M12 X 1.75 X 90 | ||
| 27 | 6732-21-5540 | PLUG, PIPE - 3/8 NPT |
