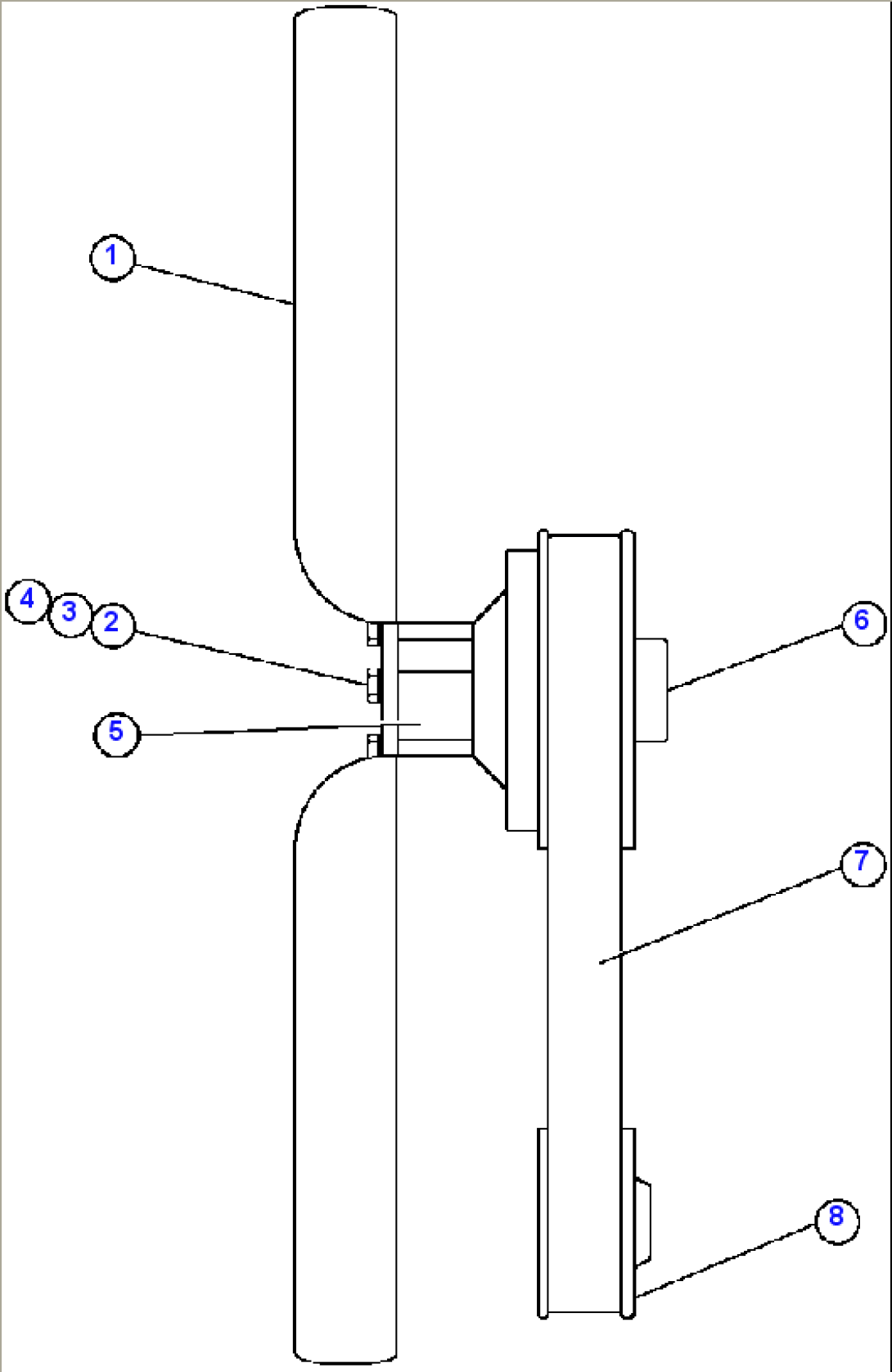

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC0449 | FAN - 78" (8 BLADE) | ||
| 2 | MM0093 | CAPSCREW - M16 X 2.00 X 70 | ||
| 3 | MM0474 | LOCKWASHER - M16 | ||
| 4 | MM0706 | FLAT WASHER, HARDENED - M16 | ||
| 5 | EH3192 | SPACER, FAN | ||
| 6 | XA2335 | CLUTCH, FAN (SEE INDEX) | ||
| 7 | BF4991 | BELT, FAN | ||
| 8 | PULLEY, FAN DRIVE (1) | |||
| NS|9 | NOTE: (1) SUPPLIED WITH ENGINE. |
