| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0010 | CAPSCREW - M12 X 1.75 X 25 | ||
| 2 | 01643-31232 | WASHER M12 | ||
| 3 | MM0720 | NUT - M12 X 1.75 | ||
| 4 | EG3522 | GUARD, FAN - R.H. | ||
| 5 | EG3523 | GUARD, FAN - L.H. |
- Главная
- Каталог запчастей
- Самосвалы
- Afp49 3 530m s/n a30018 a30035 (afp49 3 l thru v) (dh627 3)
- Cooling system
- Fan guard installation
Поиск по каталогу

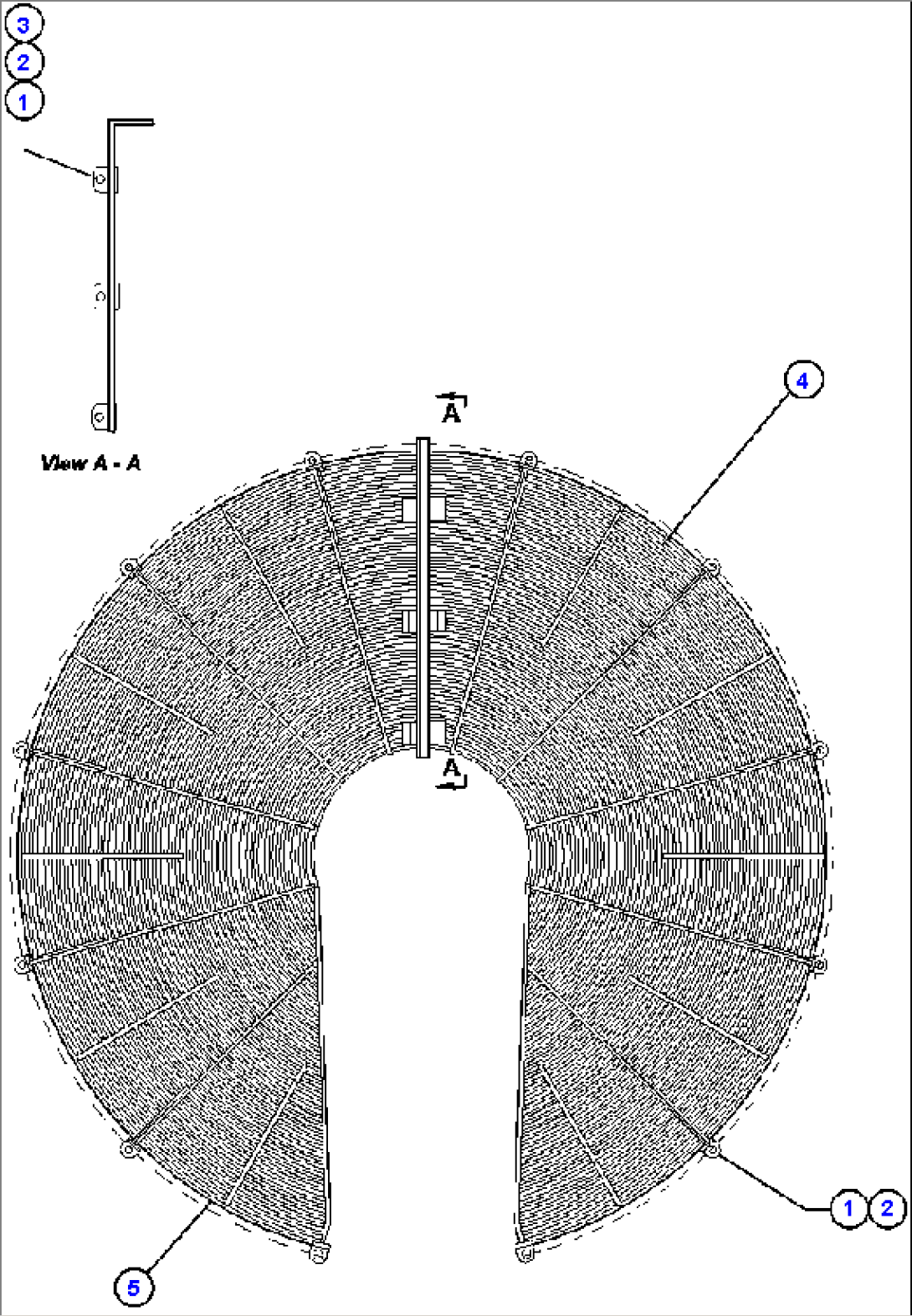

FAN GUARD INSTALLATION
