| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7S-00610 | MOTOR ASS'Y | 35001- | ||

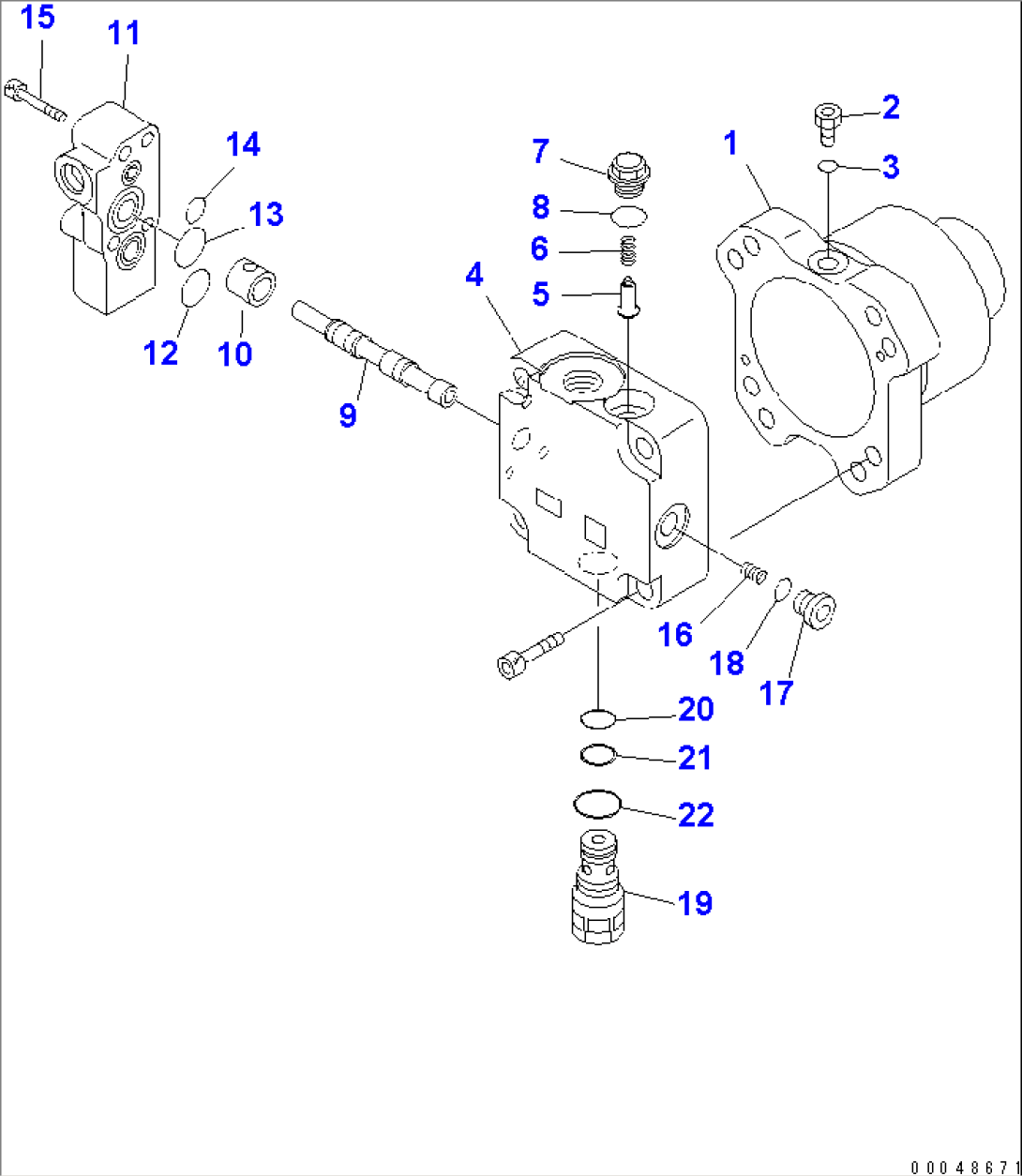

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-11A0 AND Y1642-12A0. | ||||
| 1 | (\7\708-7S-11740) | CASE | 35001- | |
| 2 | 07040-11007 | PLUG | 35001- | |
| 3 | 07002-21023 | O-RING | 35001- | |
| (\7\708-7S-01520) | COVER SUB ASS'Y | 35001- | ||
| 4 | \6\ | COVER,END | 35001- | |
| 5 | (\7\708-7R-11210) | VALVE | 35001- | |
| 6 | (\7\722-10-91130) | SPRING | 35001- | |
| 7 | (\7\709-32-12861) | PLUG | 35001- | |
| 8 | 07002-21823 | O-RING | 35001- | |
| 9 | \6\ | SPOOL | 35001- | |
| 10 | (\7\708-7S-18310) | SPACER | 35001- | |
| 11 | (\7\708-7S-18320) | COVER | 35001- | |
| 12 | 07000-E2020 | O-RING | 35001- | |
| 13 | 07000-E2025 | O-RING | 35001- | |
| 14 | 07000-E2012 | O-RING | 35001- | |
| 15 | 01252-60845 | BOLT | 35001- | |
| 16 | (\7\708-7S-18510) | SPRING | 35001- | |
| 17 | (\7\723-56-31630) | PLUG | 35001- | |
| 18 | 07002-21623 | O-RING | 35001- | |
| 19 | 708-7T-02331 | VALVE ASS'Y,RELIEF | 35022- | |
| 19 | 708-7T-02330 | VALVE ASS'Y,RELIEF | 35001-35021 | |
| 20 | 07000-F2016 | O-RING | 35001- | |
| 21 | 07001-02016 | RING | 35001- | |
| 22 | 07002-12434 | O-RING | 35001- |
