| Item | Part No. | Part Name | Qty | Serial No. |

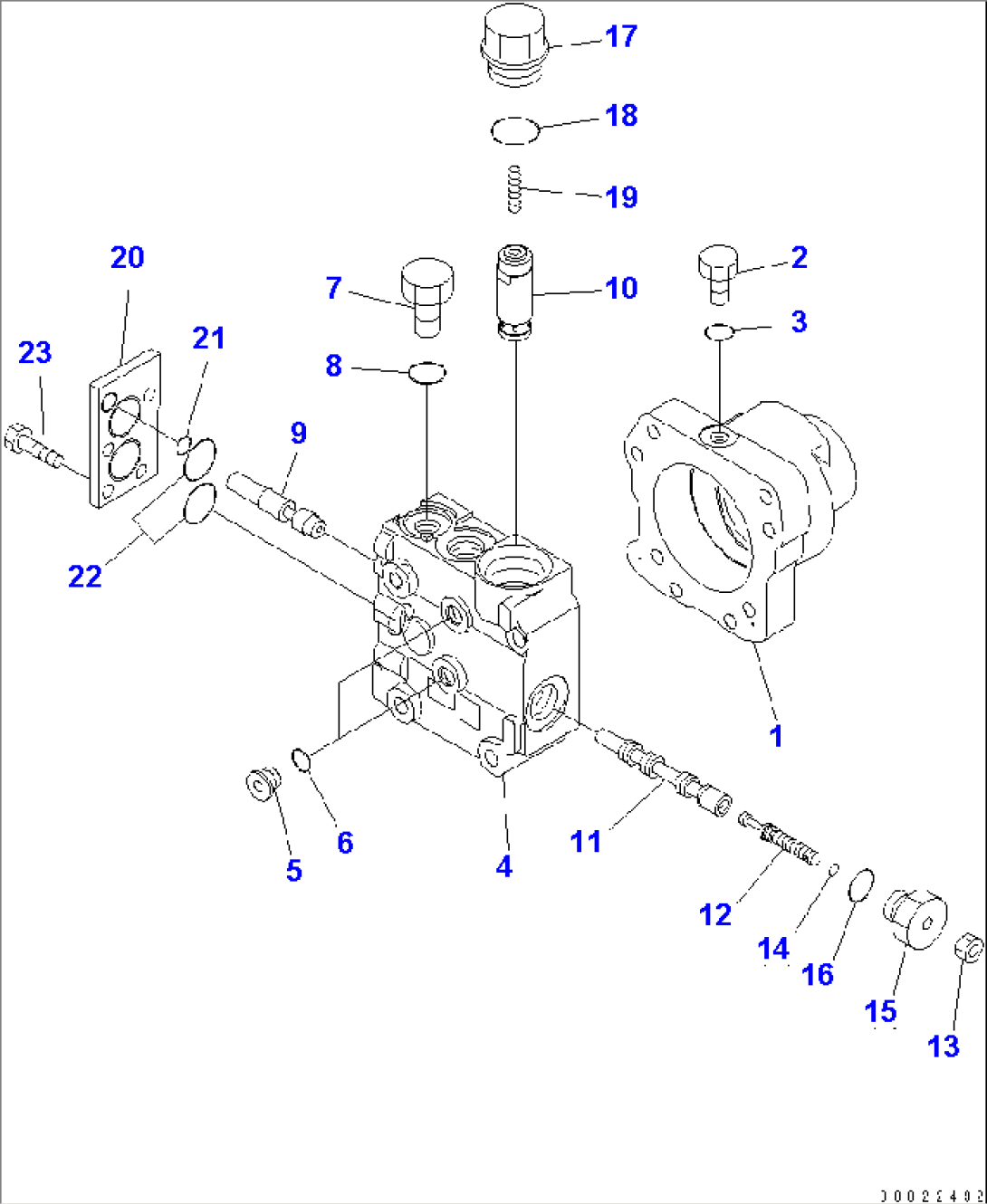

| 708-7R-00650 | MOTOR ASS'Y | 70001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-11A0 AND Y1642-12A0. | ||||
| 1 | (\7\708-7R-11930) | CASE | 70001- | |
| 2 | 07040-11007 | PLUG | 70001- | |
| 3 | 07002-11023 | O-RING | 70001- | |
| (\7\708-7R-01650) | COVER SUB ASS'Y | 70001- | ||
| 4 | \6\ | COVER,END | 70001- | |
| 5 | 708-7R-11220 | PLUG | 70001- | |
| 6 | 07002-11223 | O-RING | 70001- | |
| 7 | 07040-11409 | PLUG | 70001- | |
| 8 | 07002-11423 | O-RING | 70001- | |
| 9 | \6\ | SPOOL | 70001- | |
| 10 | 708-7R-03110 | VALVE ASS'Y,RELIEF | 70001- | |
| 11 | \6\ | SPOOL | 70001- | |
| 12 | (\7\708-7R-18340) | SCREW | 70001- | |
| 13 | 01580-10806 | NUT | 70001- | |
| 14 | (\7\07000-11007) | O-RING | 70001- | |
| 15 | (\7\708-7R-18350) | PLUG | 70001- | |
| 16 | (\7\07002-12034) | O-RING | 70001- | |
| 17 | 708-7R-21110 | PLUG | 70001- | |
| 18 | 07002-13334 | O-RING | 70001- | |
| 19 | 708-7R-21120 | SPRING | 70001- | |
| 20 | 708-7R-18360 | PLATE | 70001- | |
| 21 | 07000-11010 | O-RING | 70001- | |
| 22 | 702-21-55440 | O-RING | 70001- | |
| 23 | 01010-80820 | BOLT | 70001- |
